UTC-318 User Manual 62

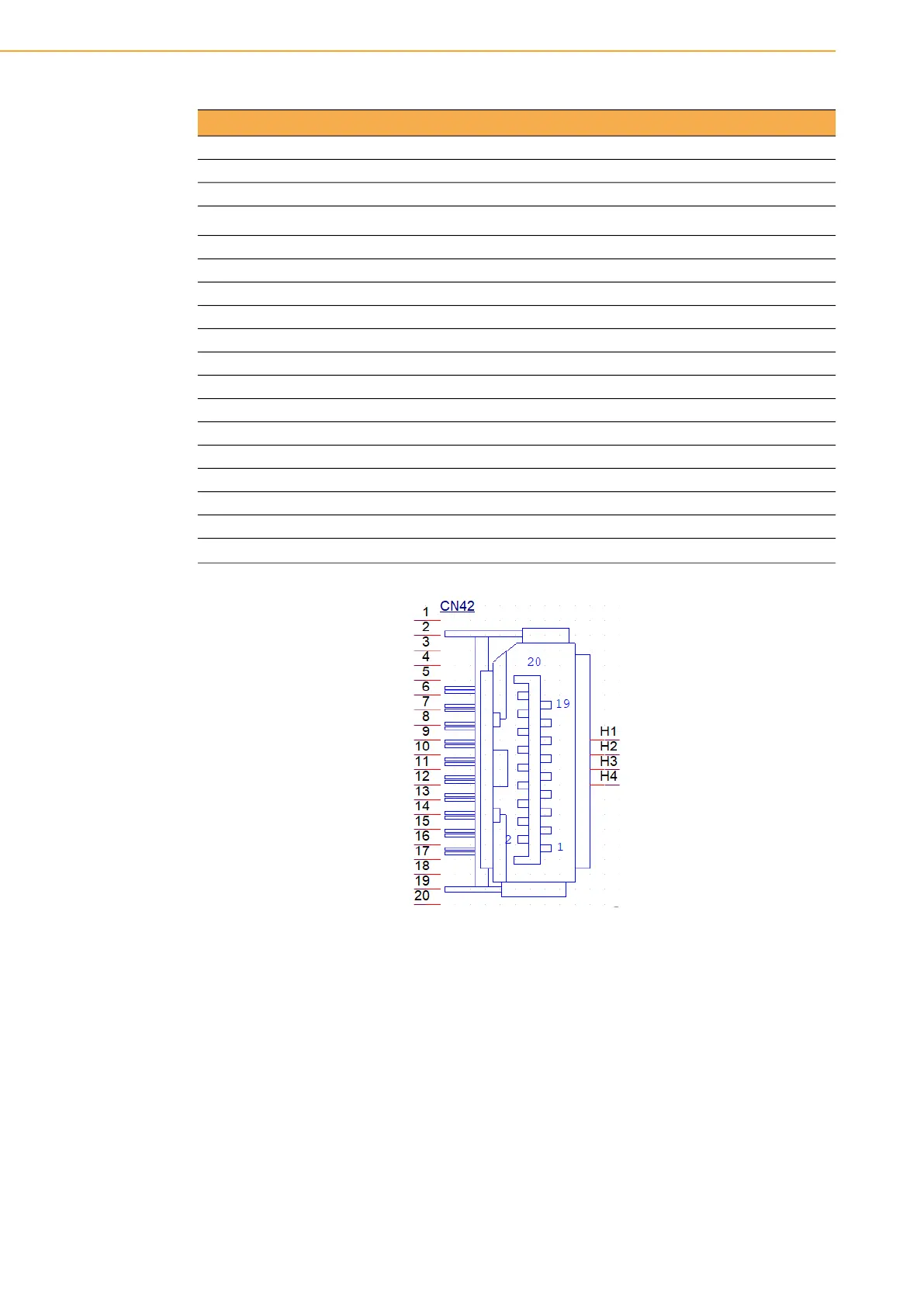

Table A.39: CN42(H):DP
Part Number 1654006275
Footprint DPCON_20P_3VD11203-H7A0-4H
Description DisplayPort Conn. 20P 1.40mm 90D DIP 3VD11203
Pin Pin name
2,5,8,11,14,16,19 GND
1 DP_TX0+
3 DP_TX0-
4 DP_TX1+
6 DP_TX1-
7 DP_TX2+
9 DP_TX2-
10 DP_TX3+
12 DP_TX3-
13 DP_AUX_EN#
15 DP1_AUX+
17 DP1_AUX-
18 DDP2_DP_HPD
20
3.3V
