63 UTC-318 User Manual
Appendix A Pin Assignments

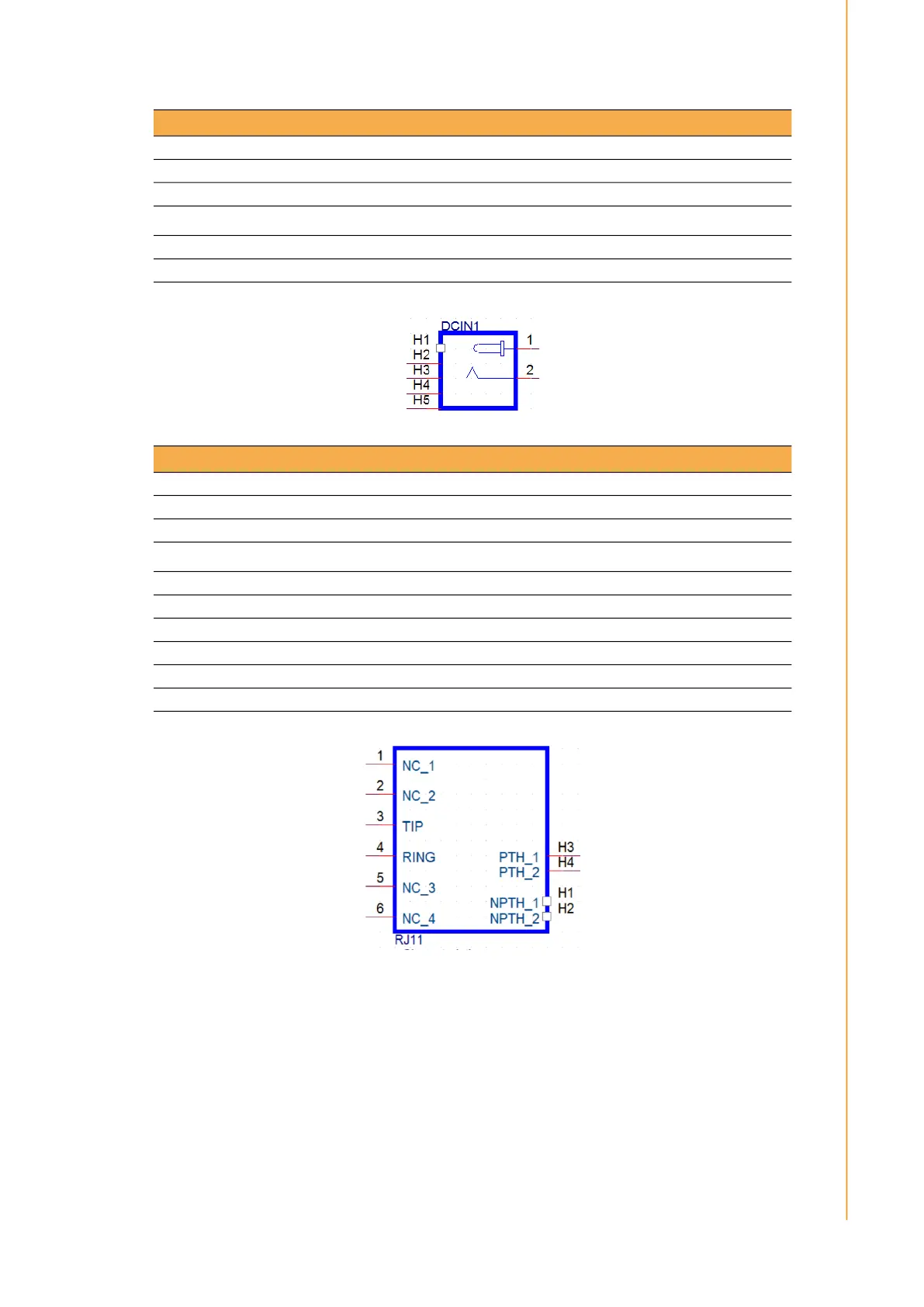

Table A.40: CN31(DG),CN25(EF),DCIN1(H):DC-IN
Part Number 1652005624
Footprint PJ_2P_2DC-G213B200
Description DC POWER JACK 2.5mm 90D(M) DIP 2DC-G213B200
Pin Pin name
1 DC_IN
2 GND
Table A.41: CN29(D),CN23(EF),CN26(G):RJ11
Part Number 1652005977-02
Footprint S RJ11_6P_RJ1201-66N024R0
Description PHONE JACK RJ11 6P6C 90D(F) DIP 6u RJ1201-66N024
Pin Pin name
1 GND
2 Drawer_A
3 Drawer_state
4 Power
5 Drawer_B
6 GND
