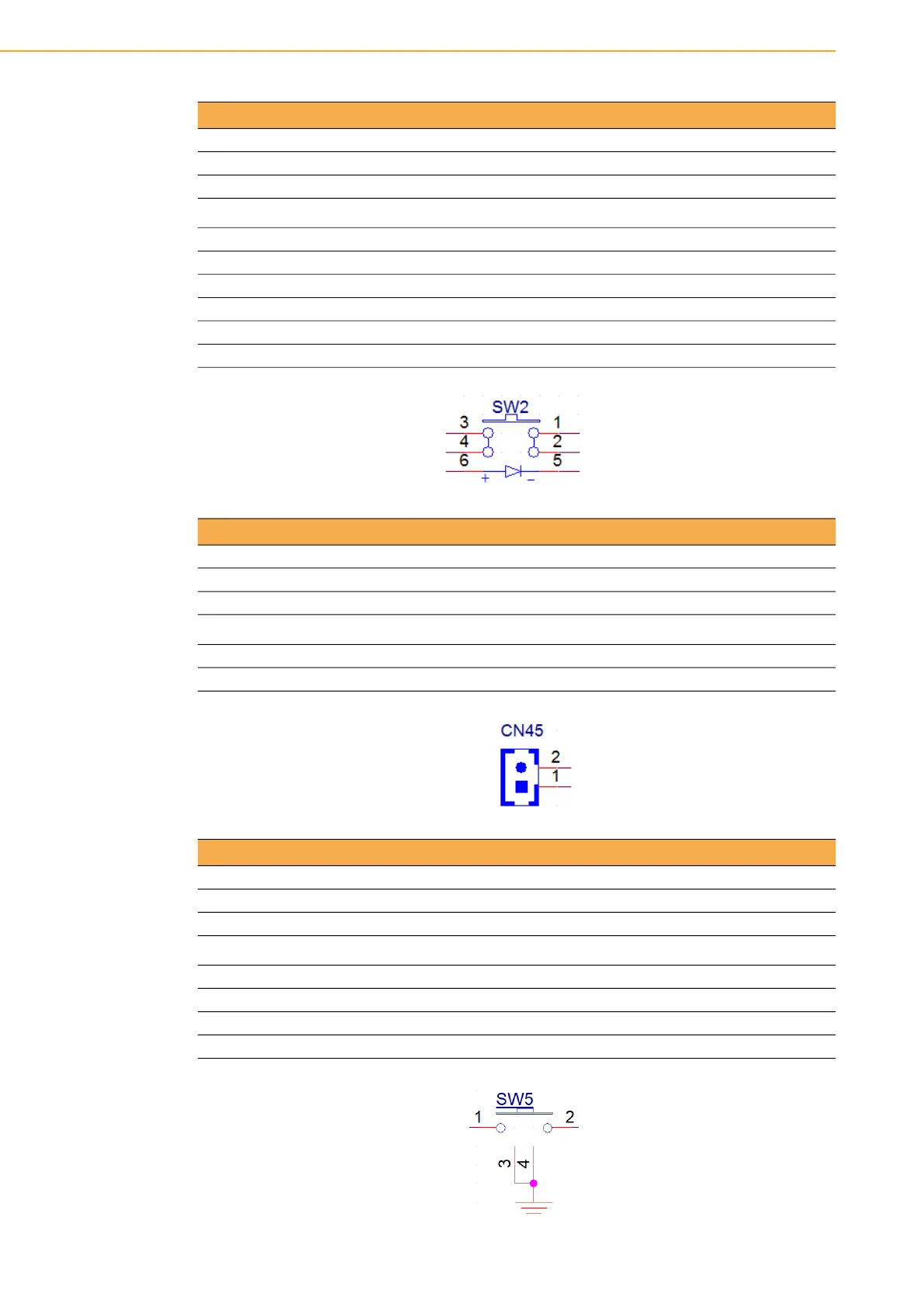

UTC-318 User Manual 64
Table A.42: BUTTON:Power Button
Part Number 1600000055
Footprint SW_6P_TC003-N11AABRGXX-RK_D
Description PUSH SW DIP 6P W/LED WO/Pb TC003-N11AABRGXX-RK
Pin Pin name
1 GND
2 GND
3 ATX_PWRBTN#
4 ATX_PWRBTN#
5 +5V
6 GND
Table A.43: CN45(H):Power Button
Part Number 1655302020
Footprint WF_2P_79_BOX_R1_D
Description WAFER BOX 2P 2.0mm 180D(M) DIP A2001WV2-2P
Pin Pin name
1 GND
2 ATX_PWRBTN#
Table A.44: SW5(H):Power Button
Part Number 1600002384
Footprint SW_2P_ELTSA-63_D
Description PUSH SW ELTSA-63N-H DIP 4P 7.4x6.65x8.5mm
Pin Pin name
1 ATX_PWRBTN#
2 GND
3 GND
4 GND
