AEG BS 35 - Installation Instructions; Functions; Fixing Method; Mounting Dimensions

Fig 1
Fig 2
Shower head level must not be higher than the unit
A
B
C
D
105 mm
360 mm.
212 mm
100 mm
360 mm
280 mm
9
8
7
Functions

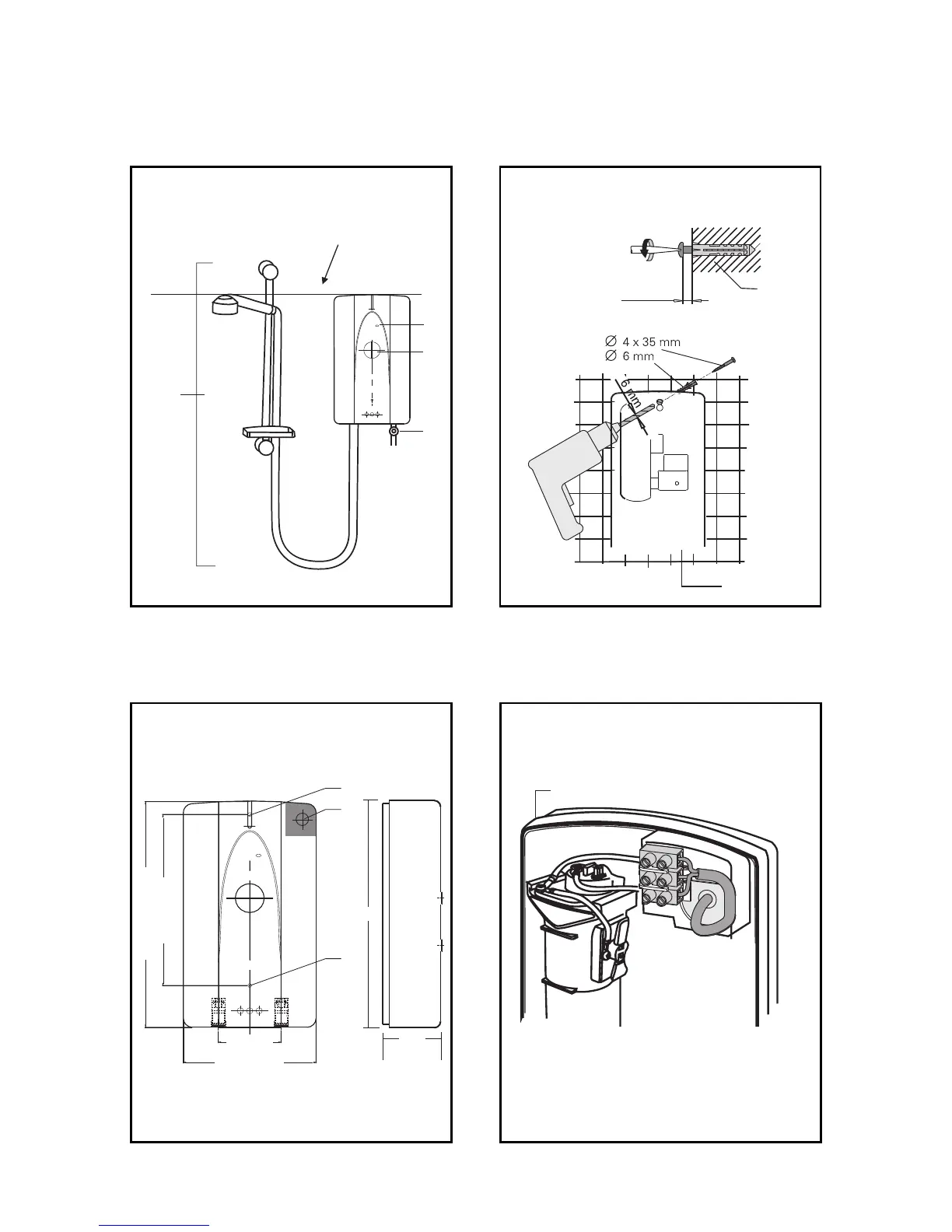

Mounting dimensions
Fig 3
Fig 4
min. 4,5 mm
max. 10 mm
10
11
The cable bushing must be
used to provide protection
against the penertration of water
.
The unit must be earthed !
Fixing method
Electrical connection
3
1. Installation instructions for the qualitied installer
