Operating Instructions
53

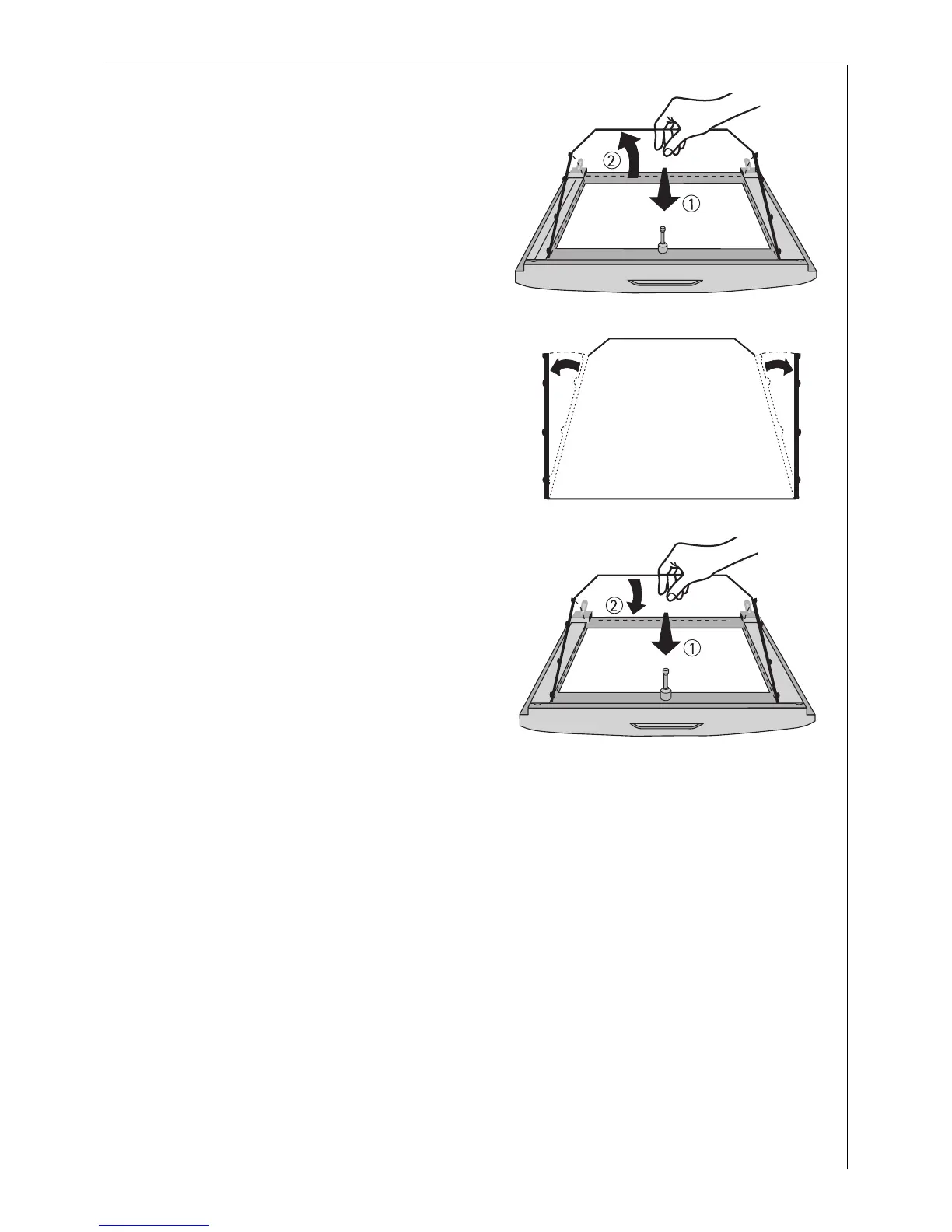

Removing the Middle Door Glass
0 1. Take hold of the middle pane of
glass at the lower edge and slide it
against the spring pressure in the
direction of the oven door handle
until it is free at the base (1).
2. Lift the pane gently at the base
and remove (2).
3. Remove the separators from the
left and right hand edges of the
middle pane for cleaning.
Fitting the Middle Door Glass
0 1. Replace the two separators on the
left and right sides of the middle
pane of glass.
2. Place the middle pane in the
upper bracket on the handle side
of the door (1).
3. Lower the middle pane of glass (2)
and slide it to the stop in the
direction of the lower edge of the
door.
