AEG NM 1714 - Setting Spool Pins; Removing or Inserting the Bobbin Case

12
q
w
e
When inserting the bobbin case, place the horn into
the recess of the hook race.
e Horn

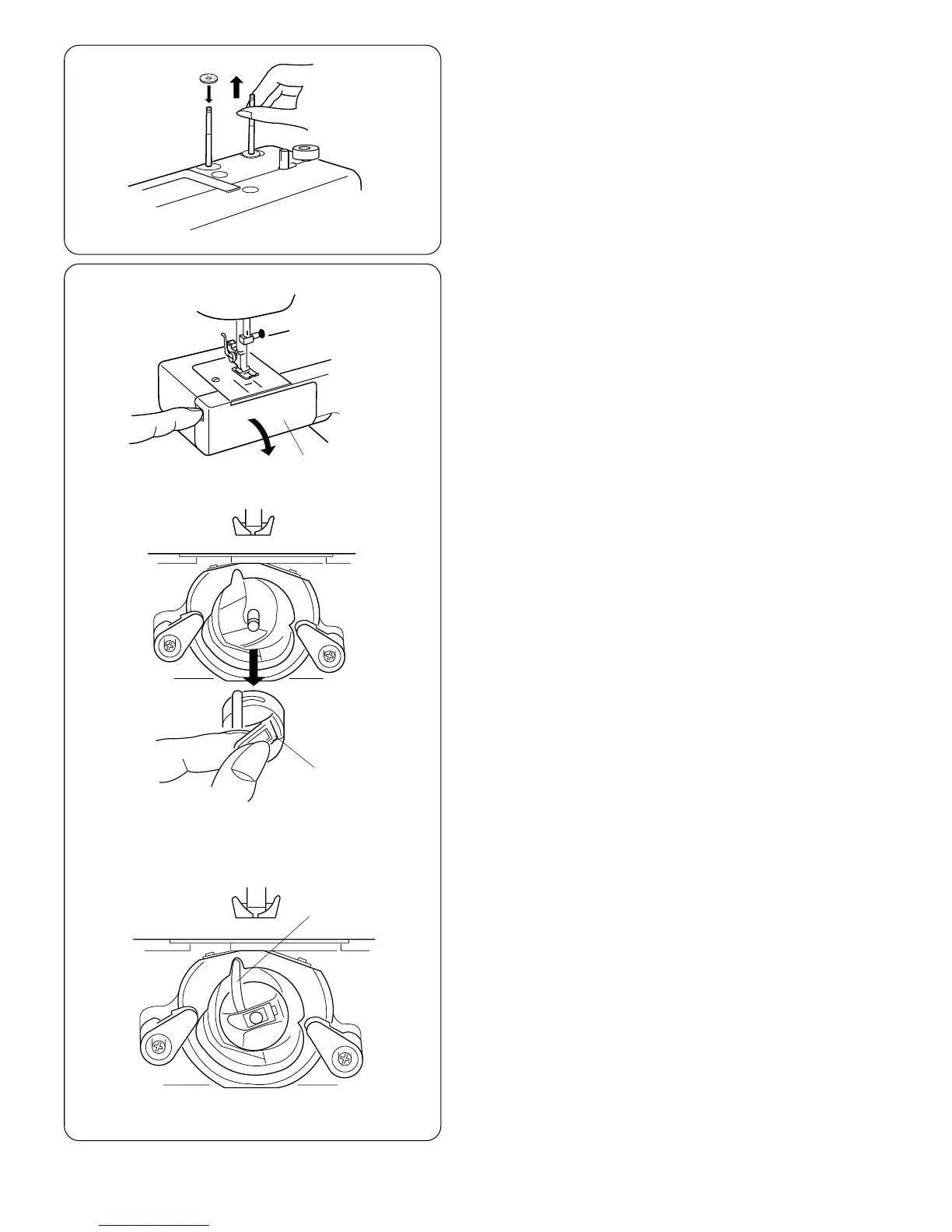

The spool pins are used for holding the spool of
thread in order to feed thread to the machine.
To use, pull up the spool pin. Place the felt on the
spool pin.
Push down for storage.
Setting Spool Pins
Removing or Inserting the Bobbin Case
Open the hook cover.
q Hook cover
Raise the needle by turning the handwheel toward
you.
Take out the bobbin case by holding the latch.
w Latch
