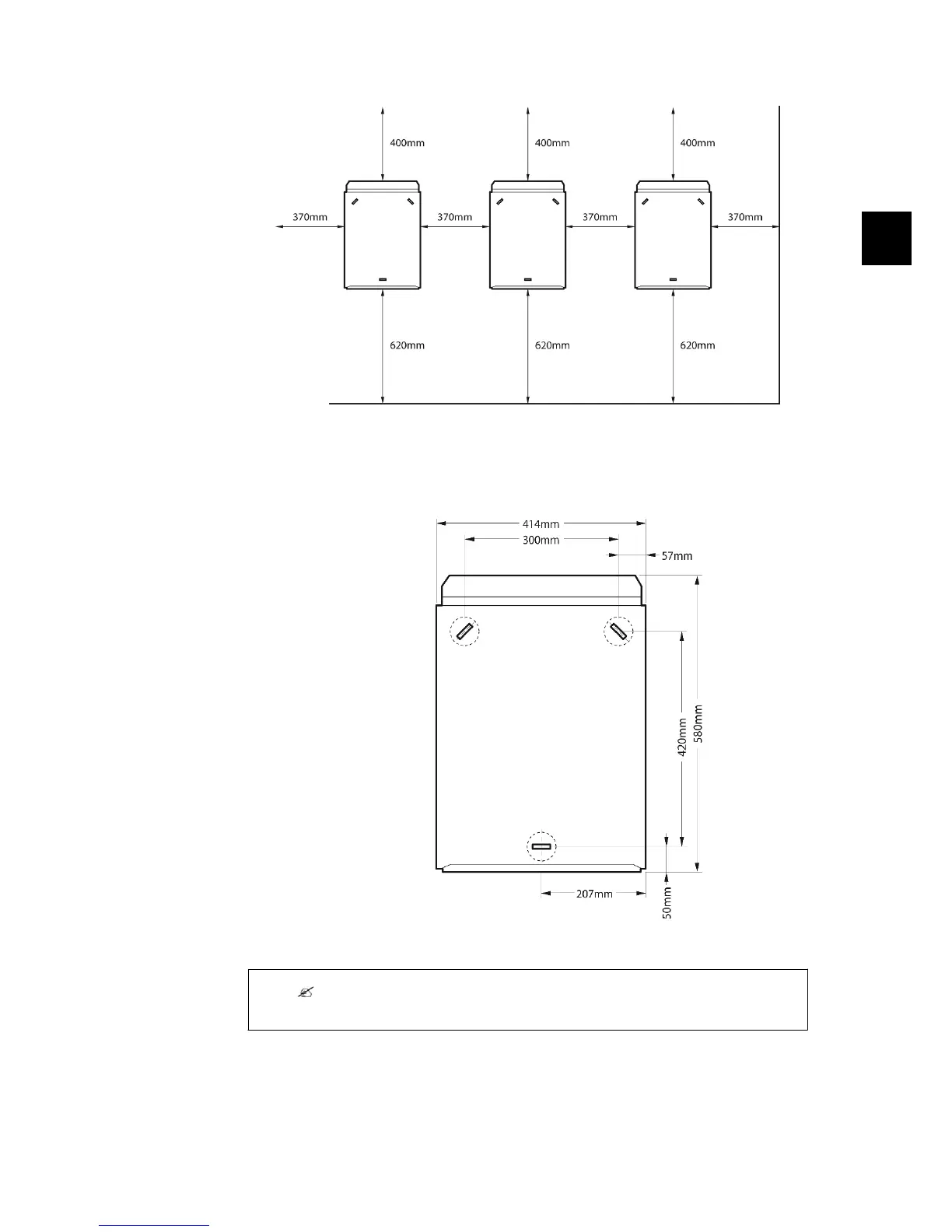

Illustration 3.1: Safe Distances
Observe these distances when installing one or more inverters. One row mounting is recom-
mended. Contact the supplier for information on mounting in more rows.
Illustration 3.2: Wall Plate
Note:
Use of the wall plate delivered with the inverter is mandatory.
Use screws that can safely carry the weight of the inverter. The inverter must be aligned and it
is important that the inverter is accessible at the front to allow room for servicing.
3. Installation
