2.1.2. Overview of Inverter

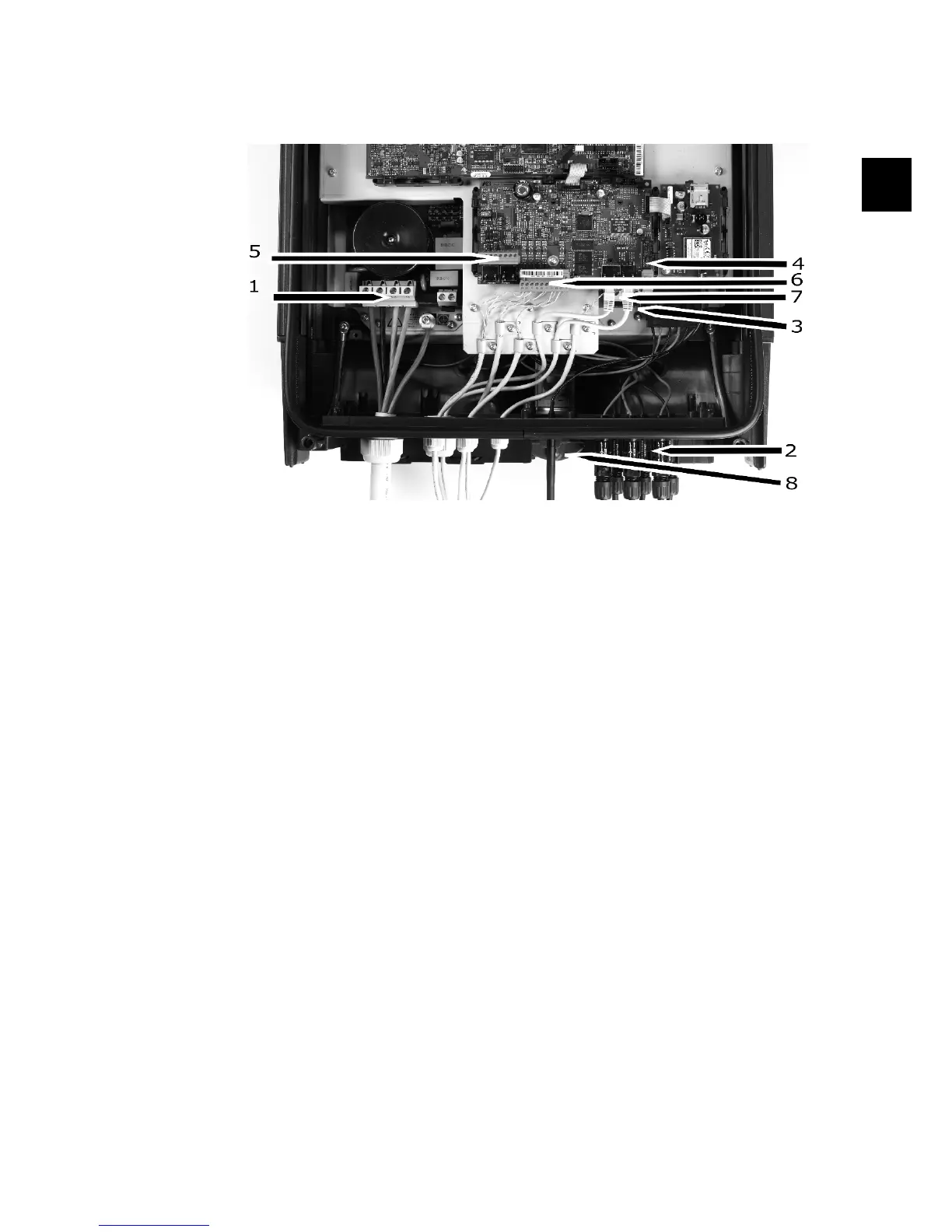

Illustration 2.3: Overview of AEG PS Protect PV inverter
Live Part
1. AC Connection Area
2. DC Connection Area
3. Terminal block for parallel connection
4. Auxiliary output: Potential free relay
PELV (Safe to touch)
5. Auxiliary interface: RS485
6. Auxiliary interface: Temperature, Irradiation, Energy meter (SO)
7. Auxiliary interface: Ethernet
Other
8. DC-switch
The inverter can also be configured via the Web Server . For further information refer to the
Web Server User Manual.
