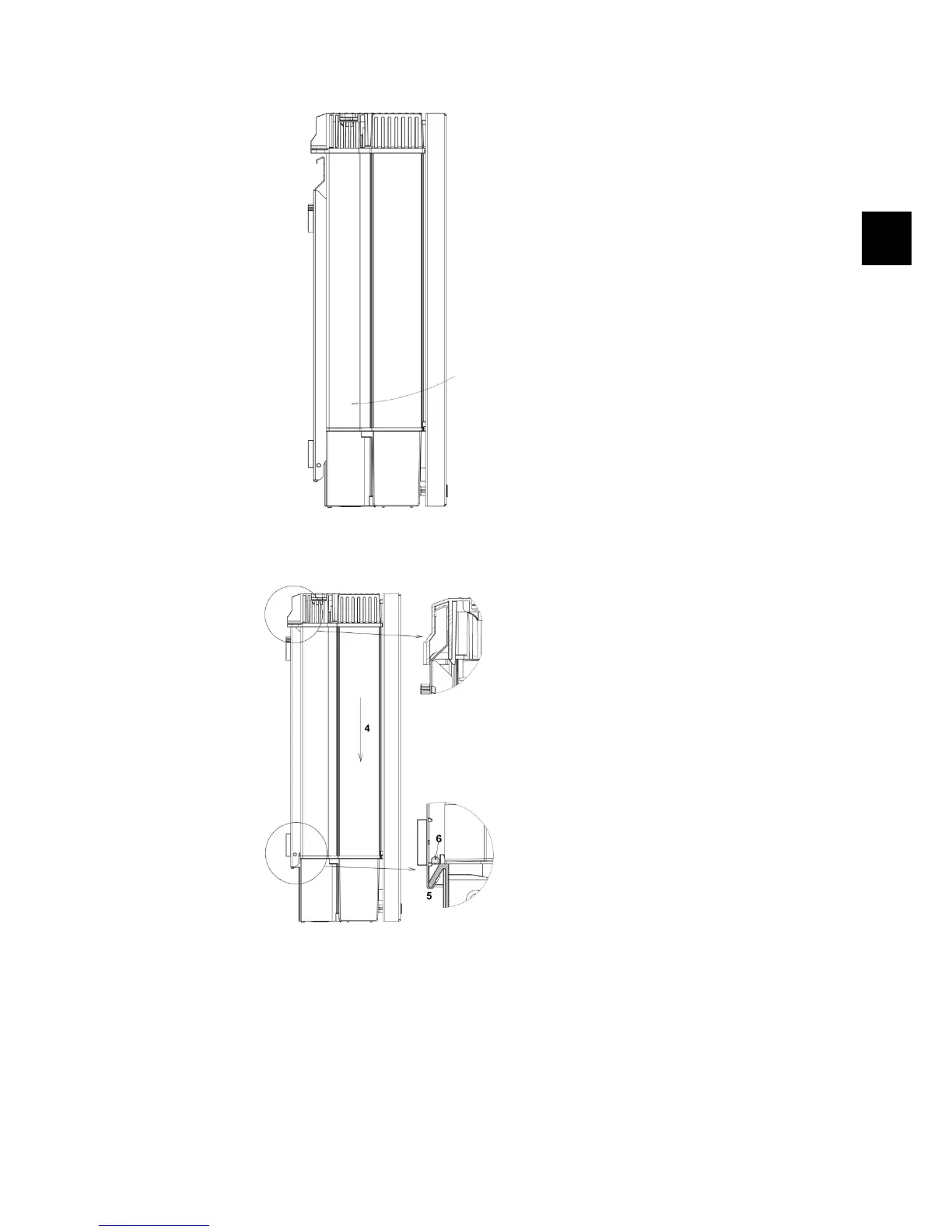

Illustration 3.5: Place Inverter in Mounting
Bracket
Place the lower part of the inverter against
the mounting bracket.
Illustration 3.6: Fasten screws
Lower (4) the inverter and make sure that
the hook of the inverter base plate is placed
in the lower part of the mounting bracket
(5). Check that it is not possible to lift the
bottom of the inverter away from the mount-
ing bracket.
(6) Fasten the screws on either side of the
wall plate to secure the inverter.
3.3. Removing the Inverter
Loosen the locking screws on either side of the inverter.
3. Installation
8000038781_00_BAL_en / L00410564-01_02 11
