AEG Protect PV Installation Manual

Protect PV
variant
User interface Ancillary services DC power rat-
ing
Local Web Server Power Level Adjust-
ment,
Primary Frequency
Control
Ride Through Fault Ride Through
Reactive Power
10 kW
12.5 kW
15 kW
Protect PV
✓ ✓ ✓ ✓ ✓
Protect PV
easy
✓ ✓ ✓ ✓ ✓ ✓

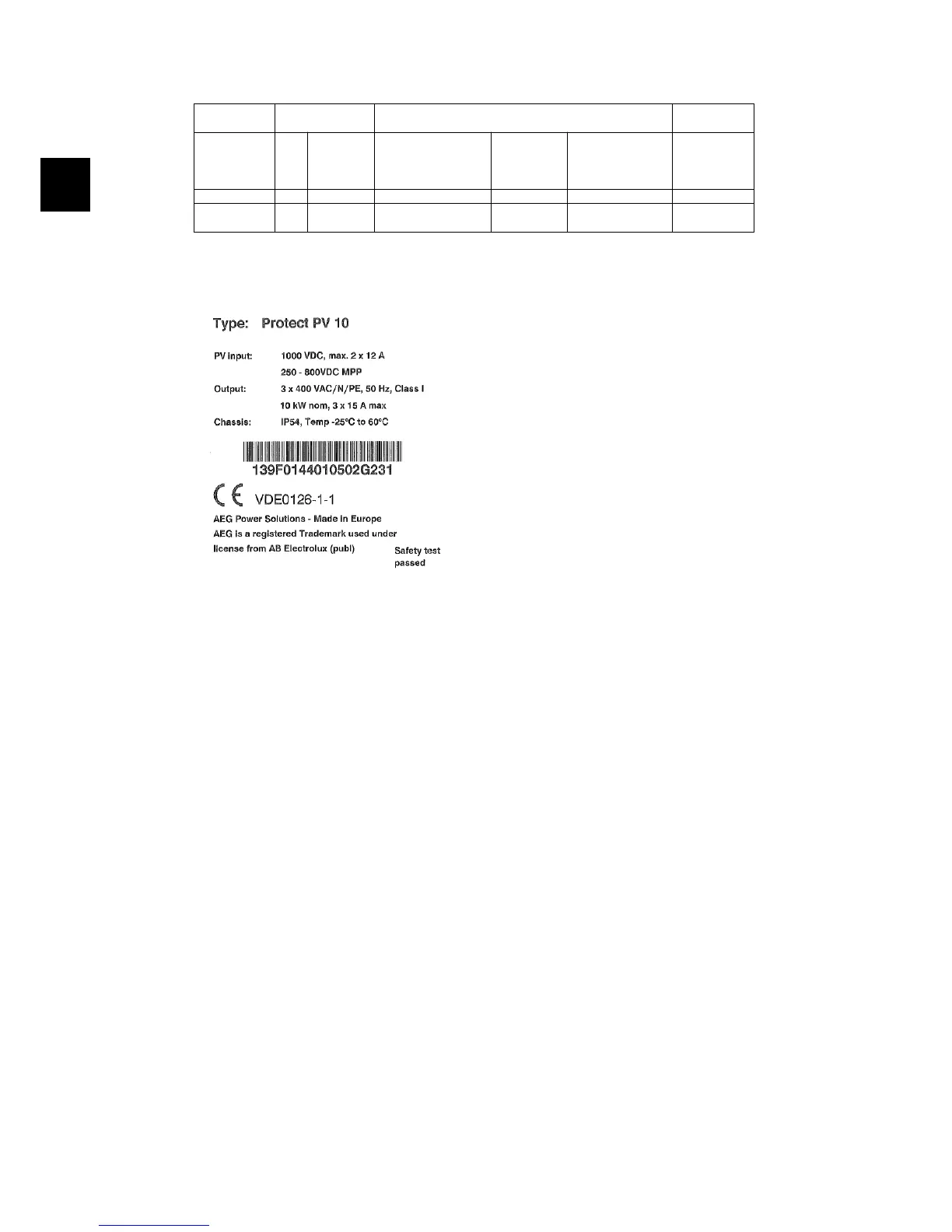

Table 2.1: Differing Features of Protect PV Variants
Product Label
Illustration 2.2: Product Label
The product label on the side of the inverter
shows:
• Inverter type
• Important specifications
• Serial number, see (1), for identifi-
cation by AEG PS
2.1.1. Installation Sequence
1. Read the installation manual. Pay special attention to the section Important Safety In-
formation .
2. Install the inverter according to the section
Installation Dimensions and Patterns and
the section Mounting the Inverter .
3. Open the inverter according to the section Opening and Closing the Inverter .
4. Install AC according to the section AC Grid Connection .
5. Install PV. Remember to use the terminal block to establish parallel connection (if re-
quired), as described in the section PV Connection . The inverter has auto-detection.
6. Install Auxiliary input according to the section Connection of Peripheral Units .
7. Close the inverter according to the section Opening and Closing the Inverter .
8. Turn on AC at the mains switch.
9. Set language, time, date, installed PV power and country:
- For setup via the integrated Web Server, see the Protect PV User Manual,Web
Server Quick Guide section
- For setup via the display, see the section Start-up and Check of Settings in
this manual.
10. Turn on PV by turning the PV load switch on.
11. Verify the installation by comparing with the auto-detection result in the display, as de-
scribed in the section PV Connection .
12. The inverter is now ready for operation.
2. Introduction
6 8000038781_00_BAL_en / L00410564-01_02
2
