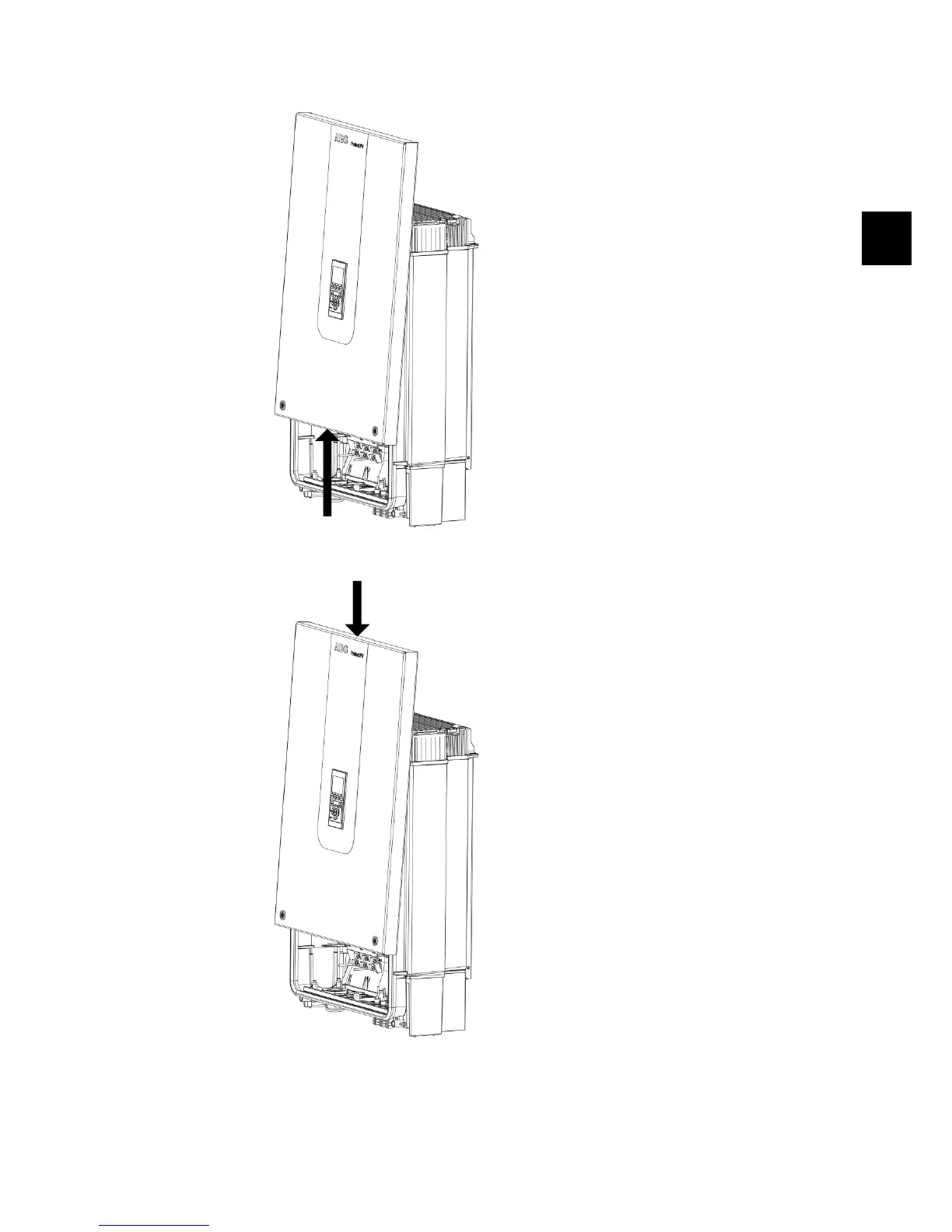

Illustration 3.8: Open the Inverter
Push the front cover upwards. When a slight
resistance is felt, give the front cover a tap
on the bottom to snap it into holding posi-
tion. It is recommended to use the holding
position instead of dismounting the front
cover completely.
Illustration 3.9: Close the Inverter
To close the inverter, hold on to the lower
end of the front cover with one hand and
give it a tap on the top until it falls into
place. Guide the front cover into place and
fasten the two front screws.
3. Installation
8000038781_00_BAL_en / L00410564-01_02 13
3
