AER Compact 60/4 - Controls and Connections; Front Side Controls and Connections

13
3. Controls and connections
channels 1 + 2
e ects
mains & master
Compact 60 4 Compact 60 4
eects
1
2
3 3
4 4
5
6 67 8 8
9
10
11 12 13 14 15

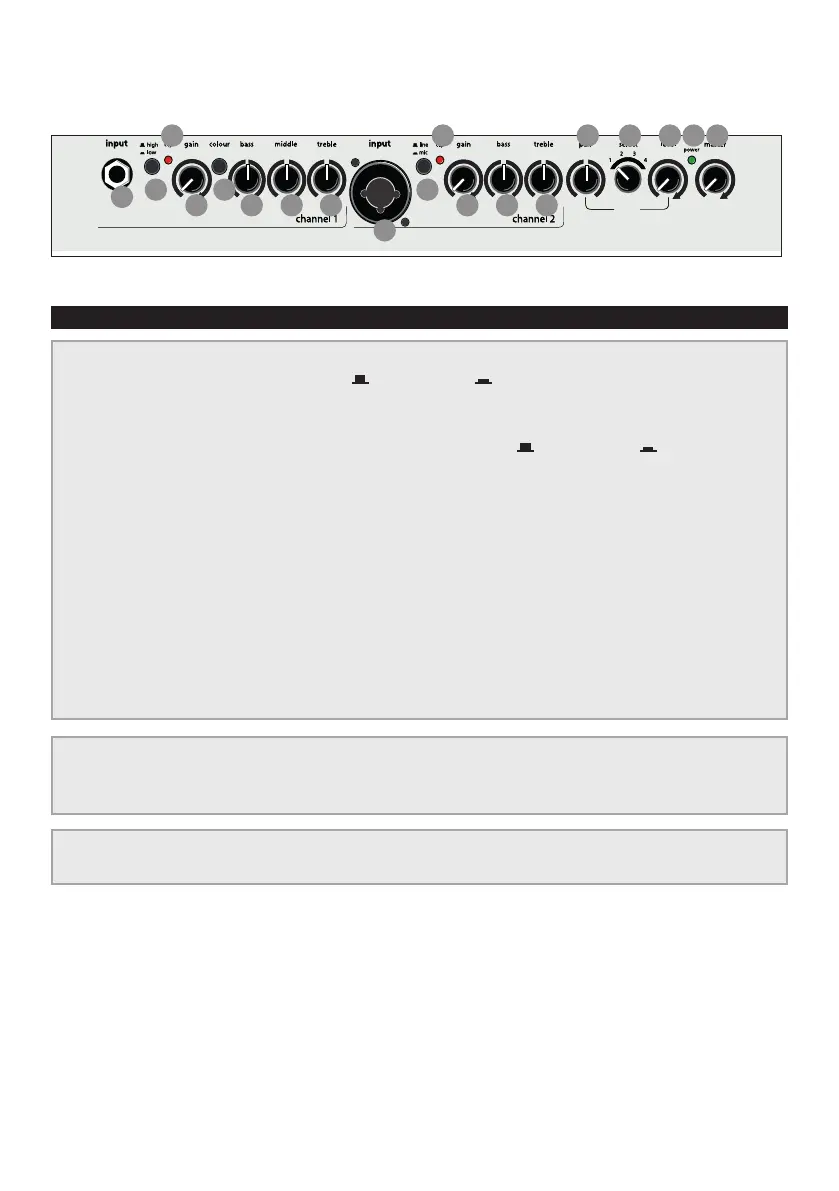

3.1 Front side
1) input (ch. 1) input channel 1, 1/4" (6,35 mm) jack socket, instrument or line input
2) high/low attenuator,
high = att. o  , low = att. on
3) clip overload indicator
4) gain input level control
5) colour tone colour  lter activation switch = not active = active
6) bass bass level control
7) middle middle level control
8) treble treble level control
9) input (ch. 2) Input, channel 2, combo socket for ¼" (6.35 mm) jack or XLR, with
following connection options:
• XLR connector: microphone, balanced, with 48 V phantom power
• stereo jack connector: microphone, balanced, without phantom power
• mono jack connector: instrument, line, or microphone, unbalanced,
without phantom power.
10) line/mic signal source selector switch: line (only via jackplug)
for instruments (pickup) and other line level sources,
mic for microphones.
11) pan e ect distribution control
12) select e ect select switch
13) level level control internal e ect
14) power on/o status indicator
15) master master level control (volume)
