3. Conception
4. Controls and connections
master
inputs 1 + 2
e ect
eq

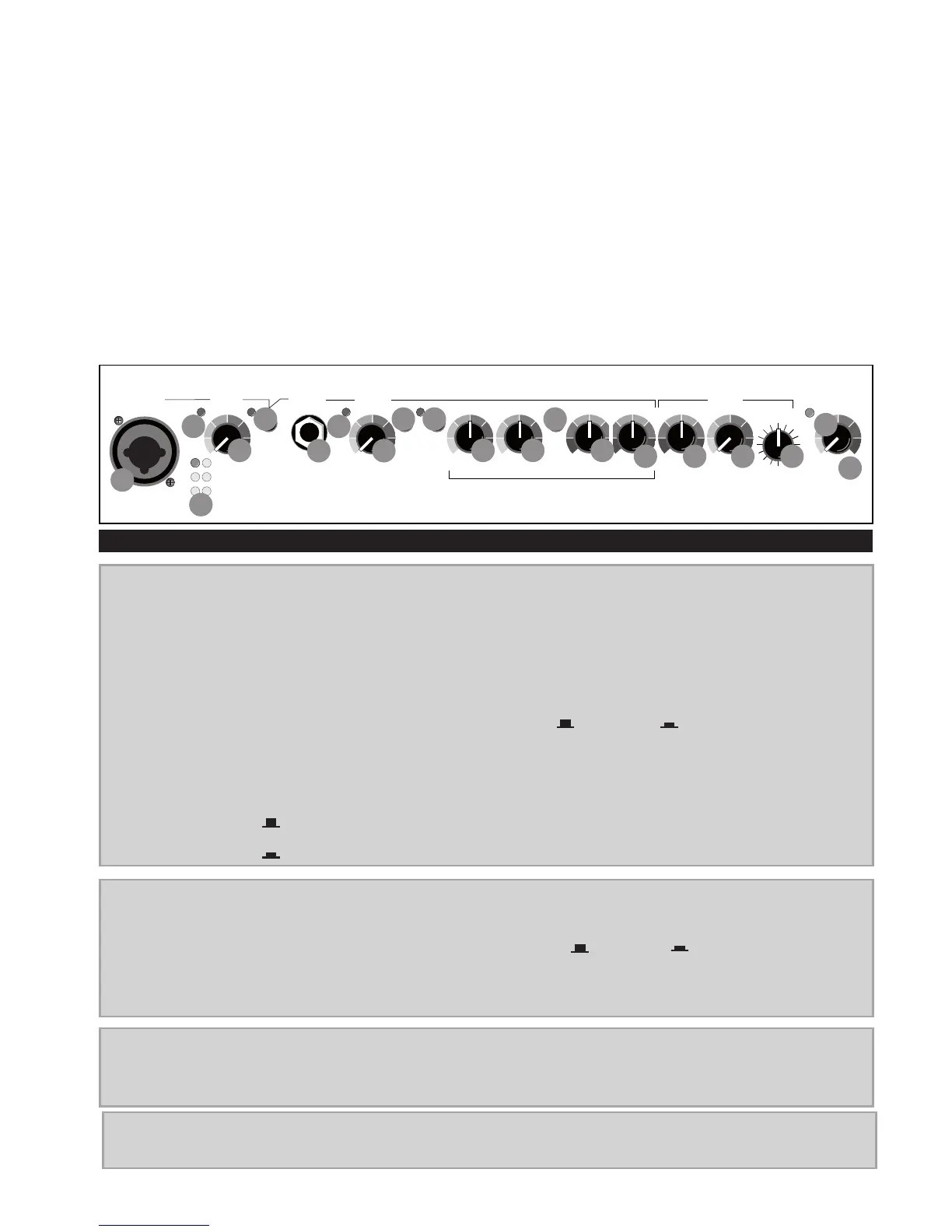

4.1 Front side
1) input 1 Socket for a 6.3 mm jack plug and XLR male.
Choose between 6 functions via dip-switch
(please use a STEREO input jack when 9V-Phantompower is active)
2) clip Overload indicator
3) 48 / 9 / L / M / P / P/M Control-LEDs for input 1-functions (s. 4.2 rear side „dip-switch)
4) gain 1 Level control input 1
5) mute Channel-mute-Schalter with LED-control: not active active
6) input 2 6.3 mm mono-input-jack
7) gain 2 Level control input 2
8) piezo/line Signalsource-switch:
piezo: Input for instruments with passive piezo-pickups
line: Input for line-signals: Instruments with active preamps and magnetic pickups
9) bass bass frequency level control
10) freq. Frequency selector: 60 – 400Hz
11) bandwidth Filter characteristics of the parametric bass: wide (U) narrow (V)
12) middle middle frequency level control
13) treble treble frequency level control
14) pan E ect panorama control
15) return E ect level control
16) program E ect preset selector
17) power Power indicator
18) master Overal volume level control
input 1
input 2
gain1
gain 2
clip
piezo
line
clip
mute
48 9
L
M
P P/M
mute
bass freq. middle treble
pan return
program
master
power
band
width
V/U
Compact
Classic
professional
eect
5
76
2
1
9
2
3
8
4 10 12
13 14 15 16
17
18
5 11
Based on the successful concept of
our best-seller Compact 60 accor-
ding to power and weight
we have changed following topics
at the Compact Classic pro:
– 2-way speaker system based
on th 8“ broadband-speaker-
with additional tweeter.
– Preset input, you can
combinde nearly all preamp
combinations. Simply choose
the preamp/phantom power
(6,5mm- or XLR input jack
by using the DIP-switch on
the rear side of the Compact
Classic pro.
– Digital-E ects with 16 Presets
– Bass-parametrical
3-Band-tone control
– Presence control ’smoothed’
the sound without loosing
clearness.
– Insert-function allows you
to connect several Compact
Classic pro
– Left out/right out
Output = masteroutput, the
signal goes directly to an active
speaker-system
(f. Ex. AS 281, AS Q8…)
