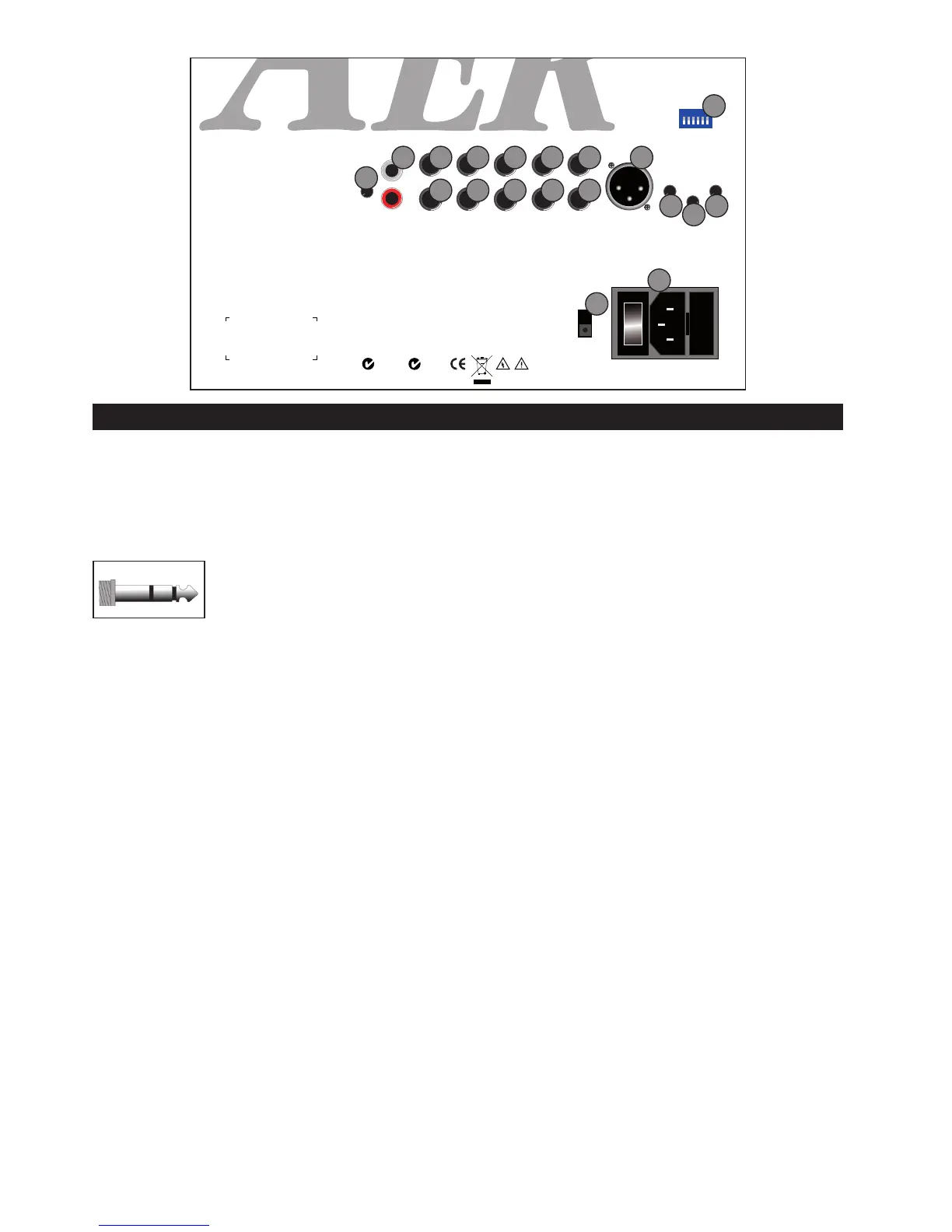

AER Compact Classic pro - Rear Side

12
1) aux level: Aux level control
2) aux in: RCA-cinch-input, stereo
(white = left channel, red = right channel)
3) phones: Headphone output.
!!!
Warning: Only use headpho-
nes with stereo jackplugs in this
output socket!!!
4) tuner: output (mono, -10 dbV)
pre master to connect a tuner
5) insert: serial loop, post-master
Contact: Tip= Send, Ring= Return, for the serial
insertion of eect devices to connect AER amps
with Link. (see p. 18)
6) line out: signal-out f. eg. active cabinet, 6,3 mm
mono-input jack, with tone-control and eect,
post master
7)/8) L-out/R-out: Stereo output, master adjustable,
post master
9) send: Connect to an extern eect-source.
Return and send form an insert-loop. You can
activate the loop via footswitch
10) return: Return as a part of the eect-loop is the
signal input for an external eect device (from
the output of the eect device). The eect can
be switched on or o via a footswitch or can be
used quasi auxiliary signal input (-10 dBV).
11) fs eect: Stereo insert jack (6,3 mm)
for a footswitch
(tip = internal Eect, ring = external Eect)
4.2 Rear side
12) fs mute: Stereo-input-jack for a double-
footswitch, (tip = mute input 1, ring = mute
input 2).
13) DI-out: XSignal-out, symmetrical,
XLR-female-jack,w/w.o tone-control and eect,
switchable (15), pre master
14) DI-level: Signal -level control for DI-out (13)
15) DI pre/post eect: Select switch, connect tone
control and DI-out (not pressed = without /
pressed = with tone-control and eect)
16) presence: Höhendämpfungs-Regler
17) Dip-switch: Pre-switch input 1
(see. para. 7, page 9)
18) Voltage control (option - on request, not stan-
dard): Choose between 115 and 230 Volt for
your country!
19) power on: Combined mains switch with a
mains socket and a fuse holder (1 A slow blow)
power on
aux
48 9 L M P P/M
Compact
professional
Classic
phones insert left out send fs eect
in
aux
level tuner line out right out return fs mute di-out di-level presence
di pre/post
eect
Caution: Risk of electric shock. Do not open! No user serviceable parts
inside. Refer servicing to qualied personnel. Made in Germany by AER.
N1646 Z494
230
230
1 2 3 4 5 6
ON
1
2
3
4 6 8
11
97
5
13
14 16
15
17
18
19
1210
