AER Compact Mobile2 - Controls and Connections; Front Side Controls

5
channels 1 + 2
efx
mains & master
mains & masterbattery control

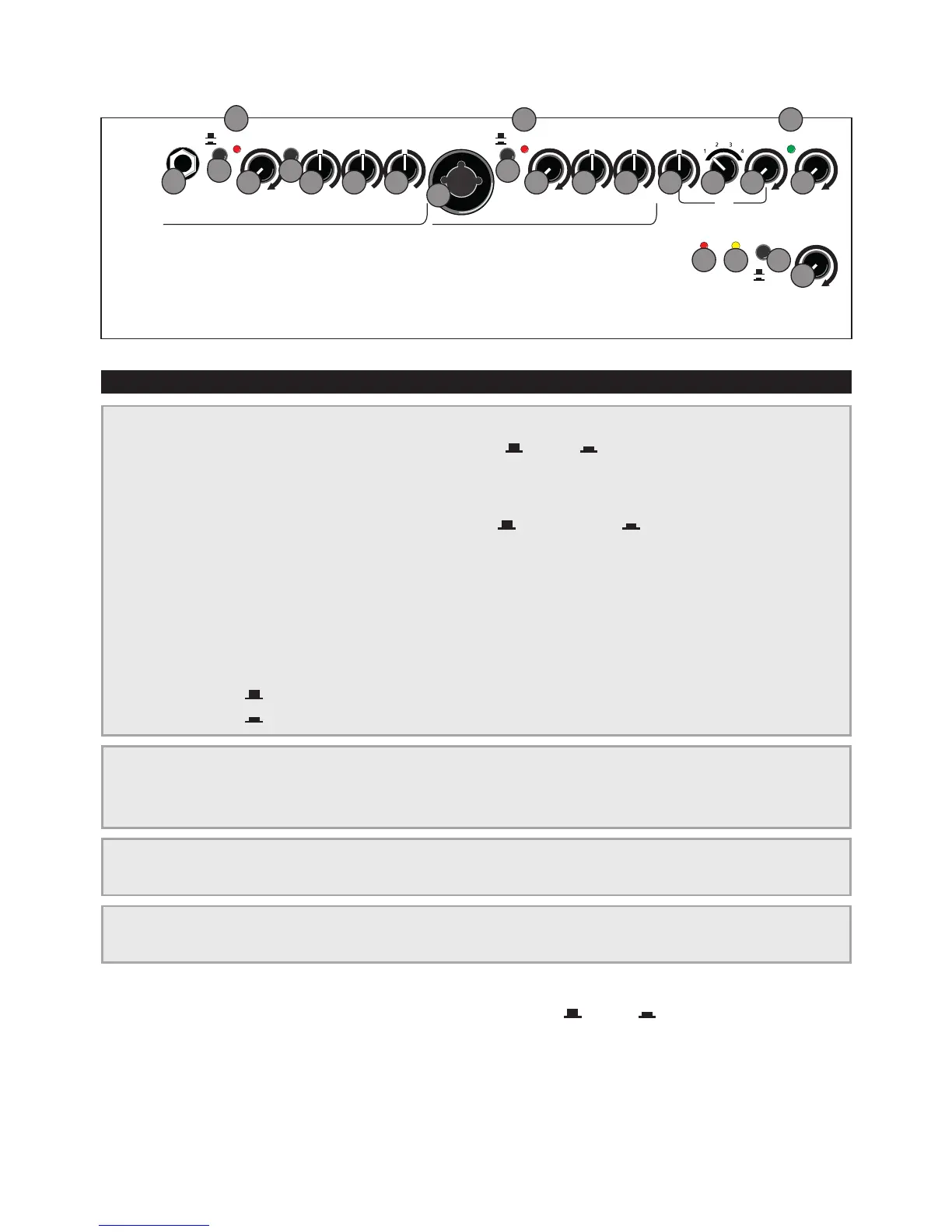

3.1 Front side
1) input (ch. 1) signal input, socket for 6,3 mm mono jackplug
2) high/low input sensitivity switch, attenuator = o = on
3) clip overload indicator
4) gain input level control
5) colour tone colour lter activation switch = not active = active
6) bass bass frequency level control
7) middle middle frequency level control
8) treble treble frequency level control
9) input (ch. 2) signal input, combo-socket for 6,3 mm mono jackplug and
XLR-connectors
10) line/mic signal source selector switch:
= line (only via jackplug) for instruments (pickup) and other line level sources
= mic (only via XLR-connector) for microphones
11) pan eect signal distribution control
12) select eect select switch
13) level level control internal eect
14) power on/o status indicator
15) master master level control
16) low battery battery status indicator
17) charge battery charge indicator
18) phantom
power 48V 48V phantom power switch for microphone = o = on
19) aux level aux-signal level control
