AER Compact Mobile2 - Rear Side Connections

6
Compact Mobile2
battery-powered acoustic amplifier
aux in headphones
power on
line
out
return
send
footswitch DI-out
tuner
L
R
tip = int. efx
ring = ext. efx
on/off
1 = gnd
2 = pos
3 = neg
DC12V DC only
on/off1= – / 2= +
CA U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AT T E N T I O N
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
IF_CPM_120718
1 2
3
4
5 7
8
Compact Mobile2
battery-powered acoustic amplifier
aux in headphones
power on
line
out
return
send
footswitch DI-out
tuner
L
R
tip = int. efx
ring = ext. efx
on/off
1 = gnd
2 = pos
3 = neg
DC12V DC only
on/off1= – / 2= +
CA U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AT T E N T I O N
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
IF_CPM_120718
9 10 11
6

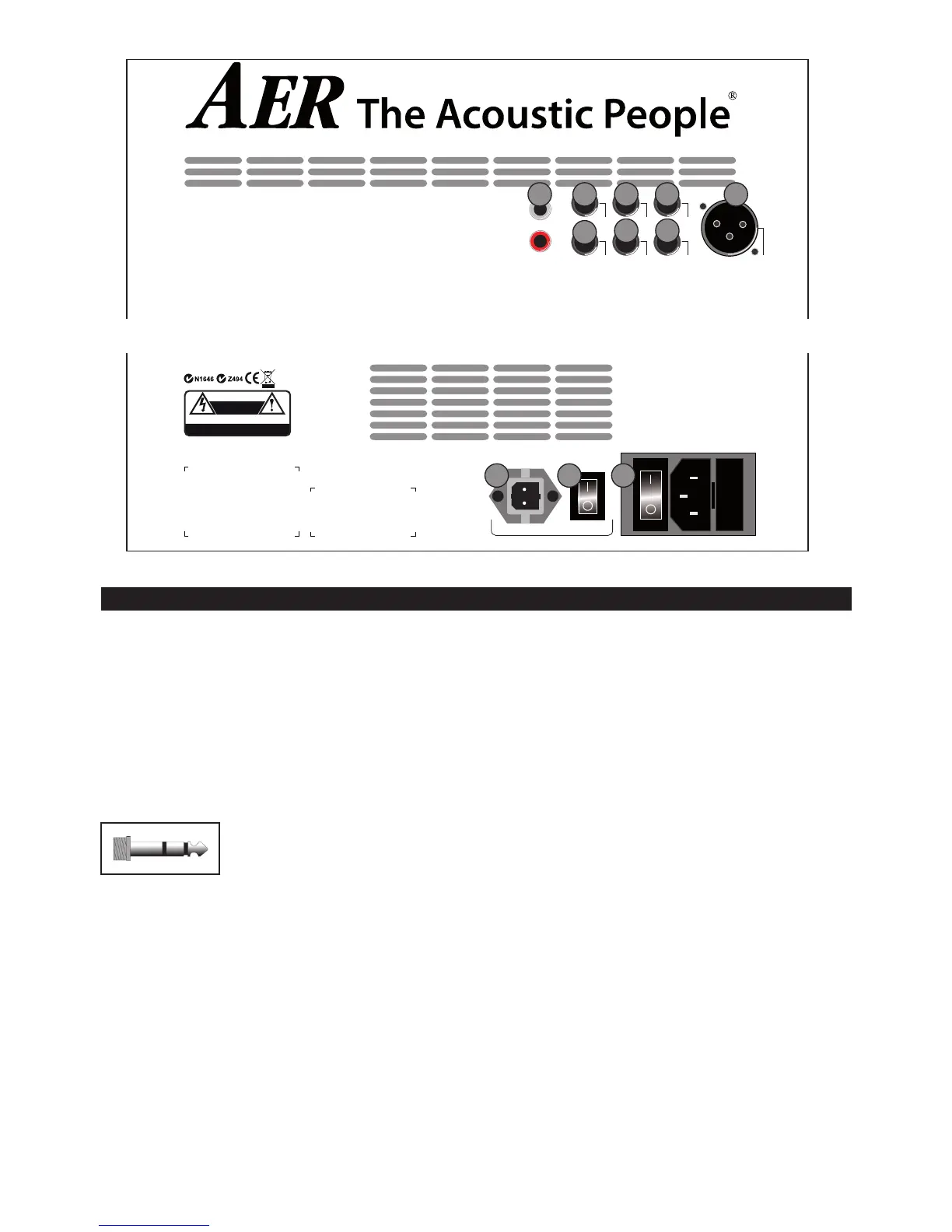

3.2 Rear side
1) aux in: stereo input for additional signal sources,
e.g. CD-player, Cinch/RCA-sockets (white = left chan-
nel, red = right channel)
2) line out: The line out supplies a pre-amp signal
taken after tone-control, eects and master for for-
warding to other appliances.
3) headphones: This output enables you to connect
stereo headphones and mutes the loudspeaker.
!!!
Warning: Only use headphones
with stereo jackplugs in this output
socket!!!
4) send: Send is an output to connect to an external
eect device and in conjunction with return (input)
forms a loop here designed as external eect loop.
The eect can be switched on or o via footswitch.
5) return: Return as part of the eect loop operates
as signal input from an external eect device (from
output of the eect device). The eect can be swit-
ched on or o via footswitch. Return on its own can
also be used as quasi auxiliary signal input (-10
dbV).
6) tuner: The tuner output supplies a pre-master
signal (-9 dbV) to connect an external tuner to the
Compact Mobile
2.
7) footswitch: Connection socket for a double-
footswitch (on-/o-switch, tip = internal eect/ring
= external eect on/o).
8) DI-out: Preamp-output with symmetrical signal,
after tone-control, pre master, without eects.
9) 12V DC only: Connection socket for an optional
12V-cable to an external battery.
10) DC on/o: On/o-switch for the connection so-
cket (9).
11) power on: Combined mains switch with mains
socket and fuse holder.
