Aerco AM Series - Removing the Heat Exchanger

Page 12 of 30 AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, New York 10913 • Phone: 800-526-0288 PR1 04/08/2014
GF-146-P
TAG-0074 0B
AM Series Piping
Application Guide

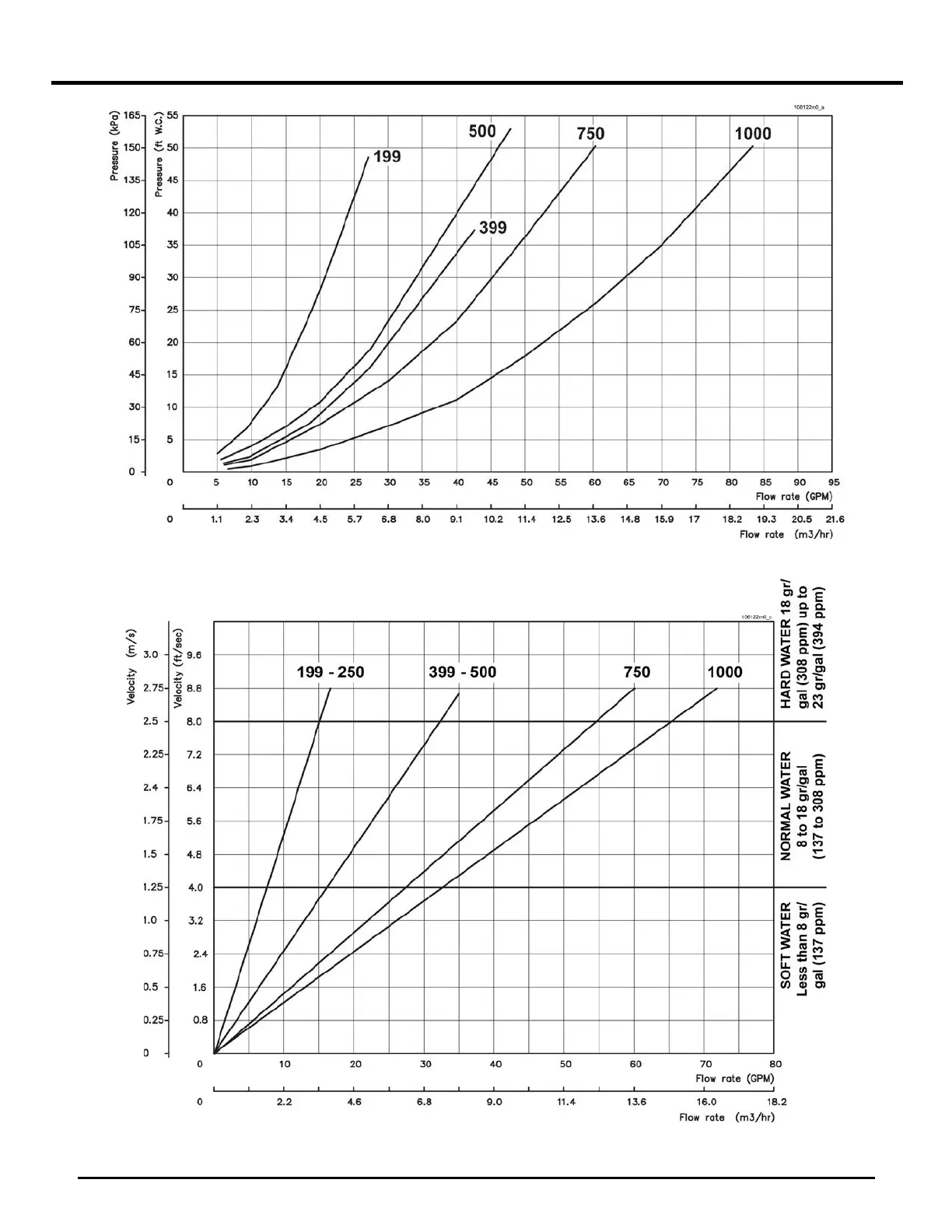

Figure 2: Water Side Pressure Loss Chart
Figure 3: Water Velocity Flow Chart
