Modulex Fireside (24-month) Maintenance
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, New York 10913 • Phone: 800-526-0288
Technical Instruction Document
TID-0027_0A
Unit Disassembly for Fireside Inspection
(Continued From Previous Page)
8. Unscrew the two air filters from each end of the
burner manifold (Figure 7).
9. Remove the two screws and the sheet metal
cover from each of two ends of the burner
manifold (Figure 8).
10. Position burner manifolds, at each end, 3/8”
(10mm) higher than the standard position
(Figure 8, left). Line up the “E” hole of the gas
pipe flange with the “G” hole of the side support
panel and affix with one of the two screws
previously removed.
11. Lift up the fan group (L) by rotating it on the gas
manifold axis and keep it up by inserting the
support rods (I), attached to the frame, in the
holes (M) (Figure 10).
12. Access the condensate tray (N, Figure 11) and
remove the cleaning plate (O) from the side
opposite from the flue collector (depends on
which side it was originally installed). Remove
the screw securing the baffle (P) and lower the
baffle onto the tray bottom.

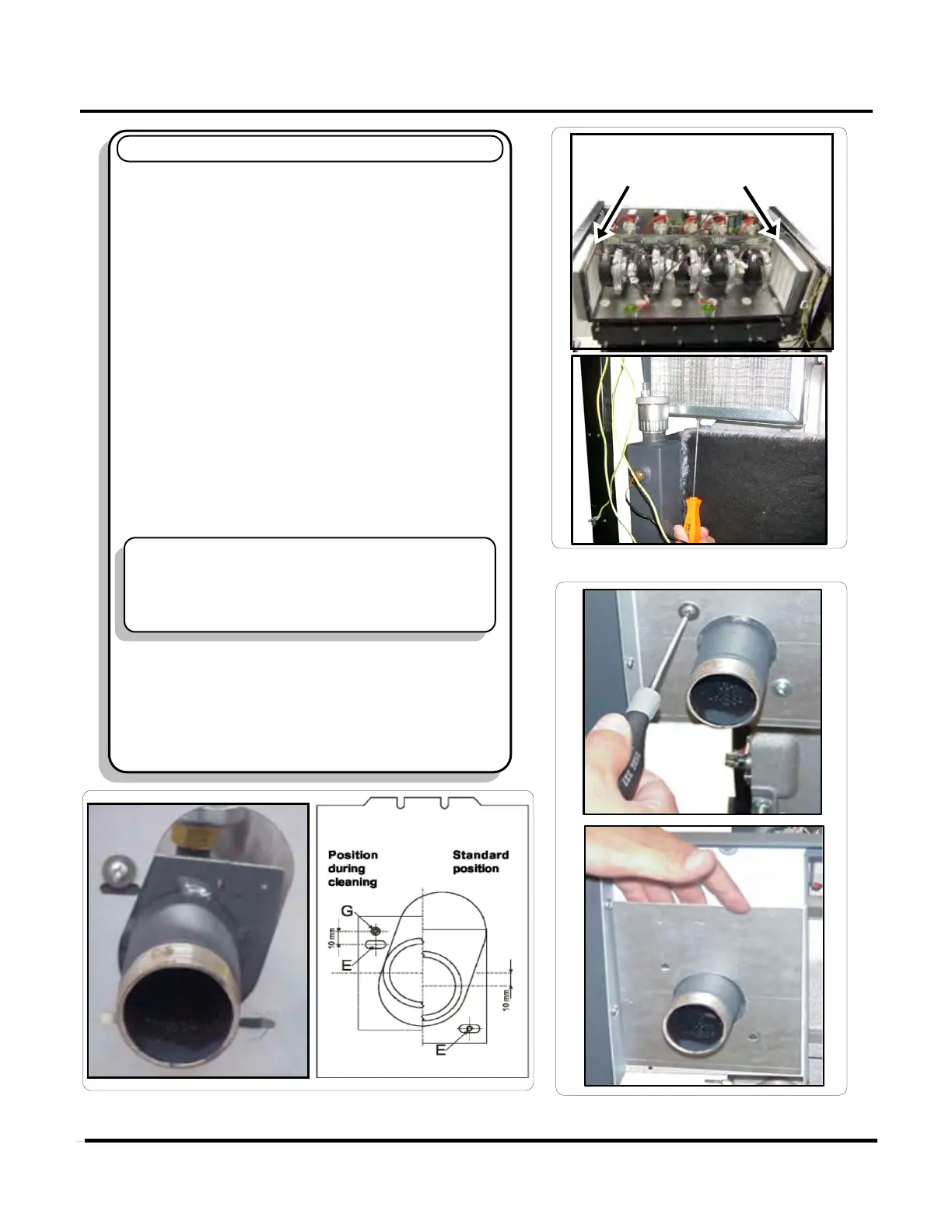

Two Filters Located on Both
Ends of Burner Manifold
Figure 7: Removing Intake Filters
Figure 8: Removing End Plates
Figure 9: Reposition Endplates to Offset
NOTE
There are six boiler models with two, three, four,
five, six, or seven burner modules. Figure 12
shows a Modulex MLX-606 with four modules.
INSTRUCTION 1.4.1
END
