5. Mount outdoor sensor
Before you mount
Before proceeding with the outdoor mounting detailed in this section, you need to
make sure the base station can receive the data from outdoor sensor, while you keep
the assembled outdoor sensor package nearby (although preferably not closer than
1.5m from the console). This will make any troubleshooting and adjustments easier
and avoids any distance or interference related issues at setup.
After setup is complete and everything is working, return here for outdoor mounting.
If issues show up after outdoor mounting they are almost certainly related to
distance, obstacles etc.
Reference Figure 8, the mounting assembly includes two U-Bolts and a bracket that
tightens around a 2.5cm to 5cm diameter pole (not included) using the four U-Bolt
nuts.

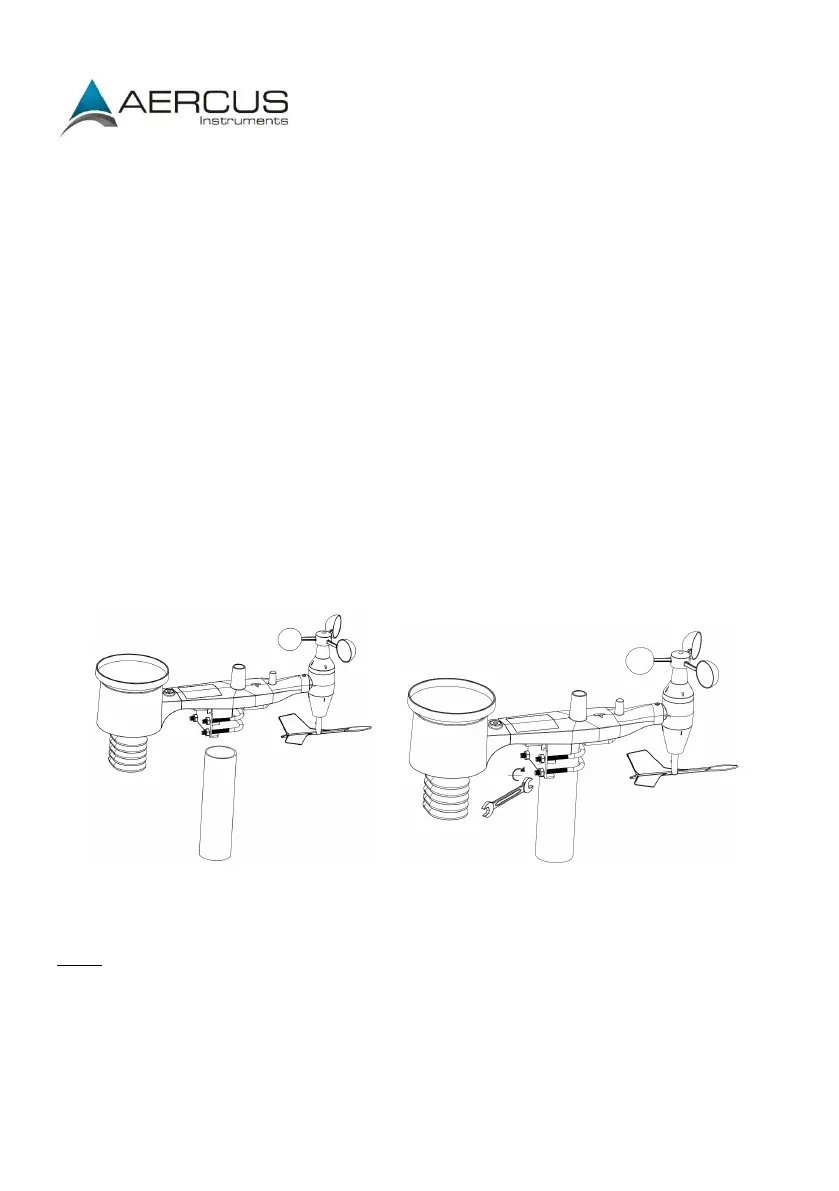

Figure 8: Sensor package mounting diagram
Note: Beside the antenna, there is an arrow icon with ”WEST” indicated (Figure 9)
representing the direction of west. The sensor body must be adjusted so that the
“WEST” indication is facing to real west direction in your location. A compass device is
recommended to help adjust direction. Permanent wind direction error will be
introduced when the outdoor sensor is not correctly aligned.
