89

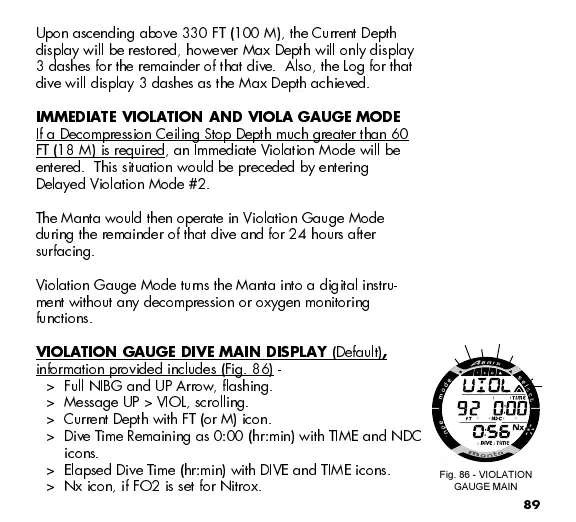

Upon ascending above 330 FT (100 M), the Current Depth
display will be restored, however Max Depth will only display
3 dashes for the remainder of that dive. Also, the Log for that
dive will display 3 dashes as the Max Depth achieved.
IMMEDIATE VIOLATION AND VIOLA GAUGE MODE
If a Decompression Ceiling Stop Depth much greater than 60
FT (18 M) is required, an Immediate Violation Mode will be
entered. This situation would be preceded by entering
Delayed Violation Mode #2.
The Manta would then operate in Violation Gauge Mode
during the remainder of that dive and for 24 hours after
surfacing.
Violation Gauge Mode turns the Manta into a digital instru-
ment without any decompression or oxygen monitoring
functions.
VIOLATION GAUGE DIVE MAIN DISPLAY
(Default)
,
information provided includes (Fig. 86) -
> Full NIBG and UP Arrow, flashing.
> Message UP > VIOL, scrolling.
> Current Depth with FT (or M) icon.
> Dive Time Remaining as 0:00 (hr:min) with TIME and NDC
icons.
> Elapsed Dive Time (hr:min) with DIVE and TIME icons.
> Nx icon, if FO2 is set for Nitrox.
Fig. 86 - VIOLATION
GAUGE MAIN
