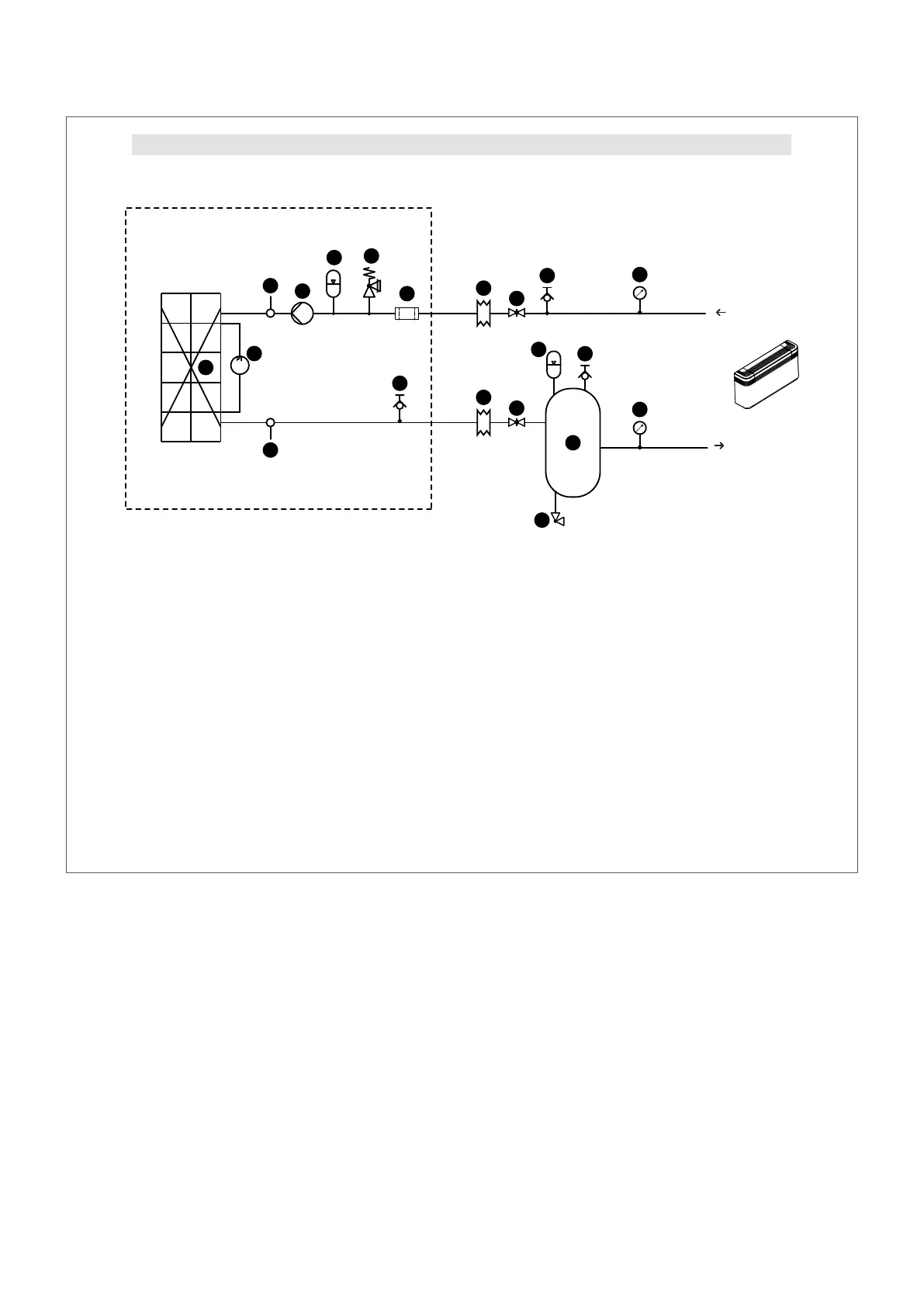

INTerNAL AND eXTerNAL HYDrAuLIC CIrCuIT ANL P / N
COMPONENTS PROVIDED AS STANDARD
1 Plate heat exchanger
2 Dierential pressure switch
3 Water temperature probe
4 Pump
5 Expansion tank
6 Safety valve
7 Water lter
8 Air vent valve
HYDRAULIC COMPONENTS RECOMMENDED EXTERNAL TO UNIT
(RESPONSIBILITY OF THE INSTALLER)
5 Expansion tank
8 Air vent valve
9 Anti-vibration joints
10 Cut-o valve
11 Storage tank
12 Drain tap
13 Pressure gauge
Unit
Components recommended
1
PT
2
3
3
4
5
5
7
6
8
8
8
9
9
10
10
13
13
11
12
