English
26
IFCLIJ 1107 - 4528500_04
- Choose where to install the machine
according to the layout of the room,
the number of units to be installed
and any limitations imposed by the
architecture. Check that installation
and maintenance of the machine is
possible in the position chosen.
- Install four M8 threaded rods into the
ceiling to hold the frame.

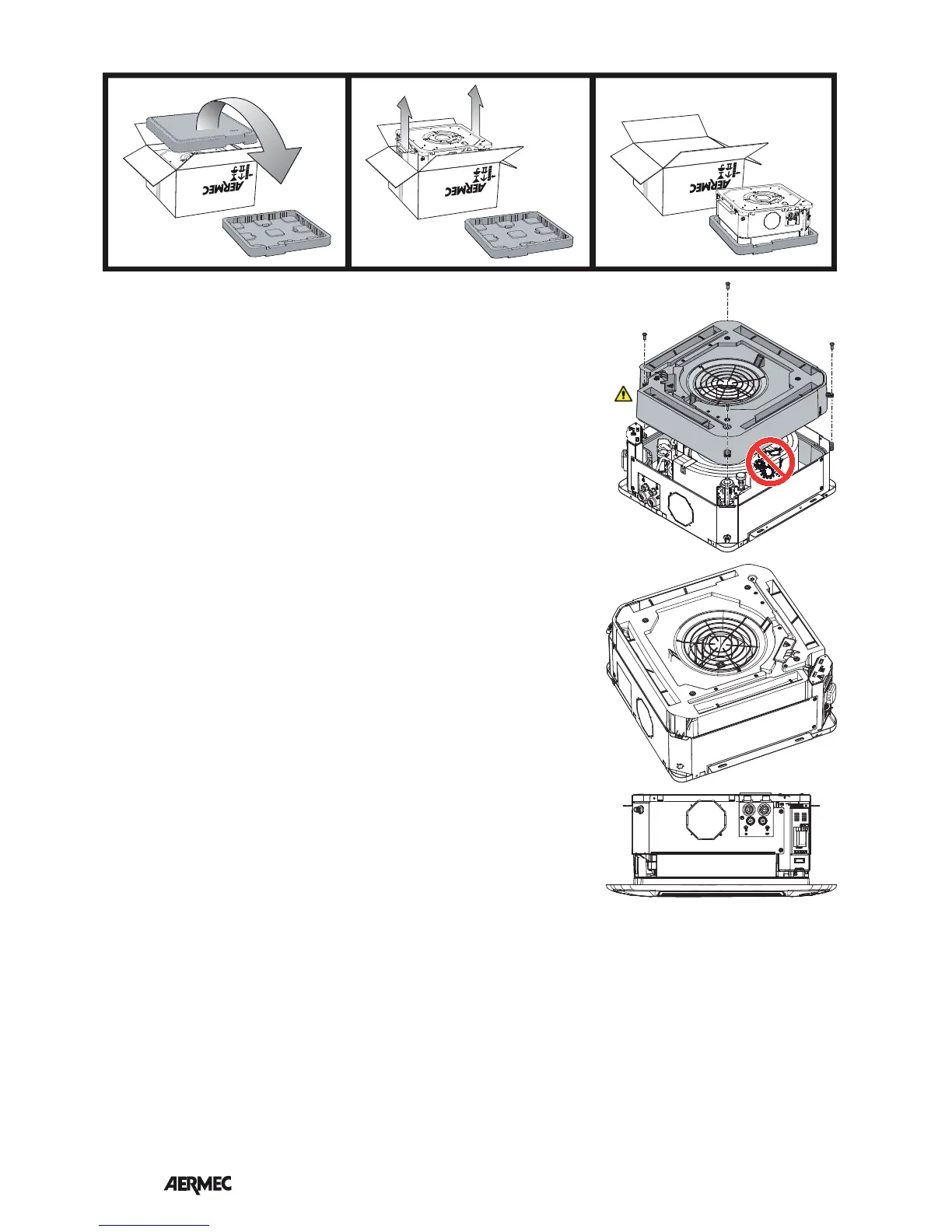

Proceed as follows to install the FCL
unit:
- Overturn the FCL cassette fan coil box.
- Open the cardboard package.
- Remove the box, it is recommended to
make incisions on the corners of the
box and to remove the cardboard one
piece at a time.
- Remove the upper part of the
packaging shell used to protect the unit
during transport.
- If necessary, mount any accessories
(electric resistances, fresh air kit or flow
to adjacent room, hot water valve).
Carry out these operations before
installing the unit on the ceiling.
ATTENTION: consult the accessory
manuals.
- Do not handle the unit using the
hydraulic connections but use the
appropriate brackets.
- Lift the unit carefully using the brackets
and holding it slightly inclined. Fix it
to the 4 threaded rods using the 8 nuts
of which 4 are self-locking. Act on the
nuts to adjust the height, finally check
that the unit is installed in a horizontal
position.
- Feed the hydraulic lines through the
suspended-ceiling to the attachment
plate on the unit;
- Make the hydraulic connections as
described in the relative chapter.
- Take the condensate drain pipe to the
respective fitting on the attachment
plate;
- Bleed the system, the vent valve for
the two-pipe circuit is external on
the connections plate. The vent valve
for the heating circuit of the 4-pipe
system is internal, to access remove the
polystyrene basin.
- Connect the condensate drain as
described in the relative chapter.
- Take the electric power supply cables
and control cables in proximity of
the electric box; make sure that the
cables are long enough to follow
the movement of the electric box on
the guides during the assembly and
disassembly phases.
- The electric box is supplied with grid
accessories (GLL10, GLL10R and
GLL10 M).
- Consult the grid accessories manuals.
The instructions for mounting and
connection of the electric box are
contained in the manual supplied with
the grid accessory.
- After having completed the
connections and the electric box is
inserted in its housing in the FCL unit,
fix it using the two screws.
ATTENTION: fix the safety cable
to the electric box screw fastener
positioned at the side of the hydraulic
connections. The safety cable snap
hook must then be attached to the grid
frame.
- For GLL10M and GLL10R only: apply
any air probe (SA) to the centre of
the fan grid, fix the cable using the
supplied straps, lay the excess cable in
the grooves made in the polystyrene.
- The grill frame must be positioned in
a way that the AERMEC logo holder
corresponds with the corner of the
electric box.
- Mount the grill to the safety cable.
- For GLL10M and GLL10R only: make
the connections between the electric
box and the receiver.
- Fix the grid using the 4 screws.
ATTENTION!! tighten the screws with
maximum coupling torque of 0.45
Nm. It is advised to use a screwdriver,
do not use non-calibrated electric
screwdrivers. An excessive coupling
torque will damage the tray irreparably.
- Adjust the position of the unit by the
support bracket by means of the nuts,
in a way that the unit is level and the
frame rests slightly in the suspended
ceiling.
- Start the fan coil and carry out a
functioning test. The functions are
described in the user manual.
INSTALLATION OF THE "MODULE 600" UNIT
