AERMEC NLC 0600 - Page 18

18 22.05  4037360_01
0650-1100

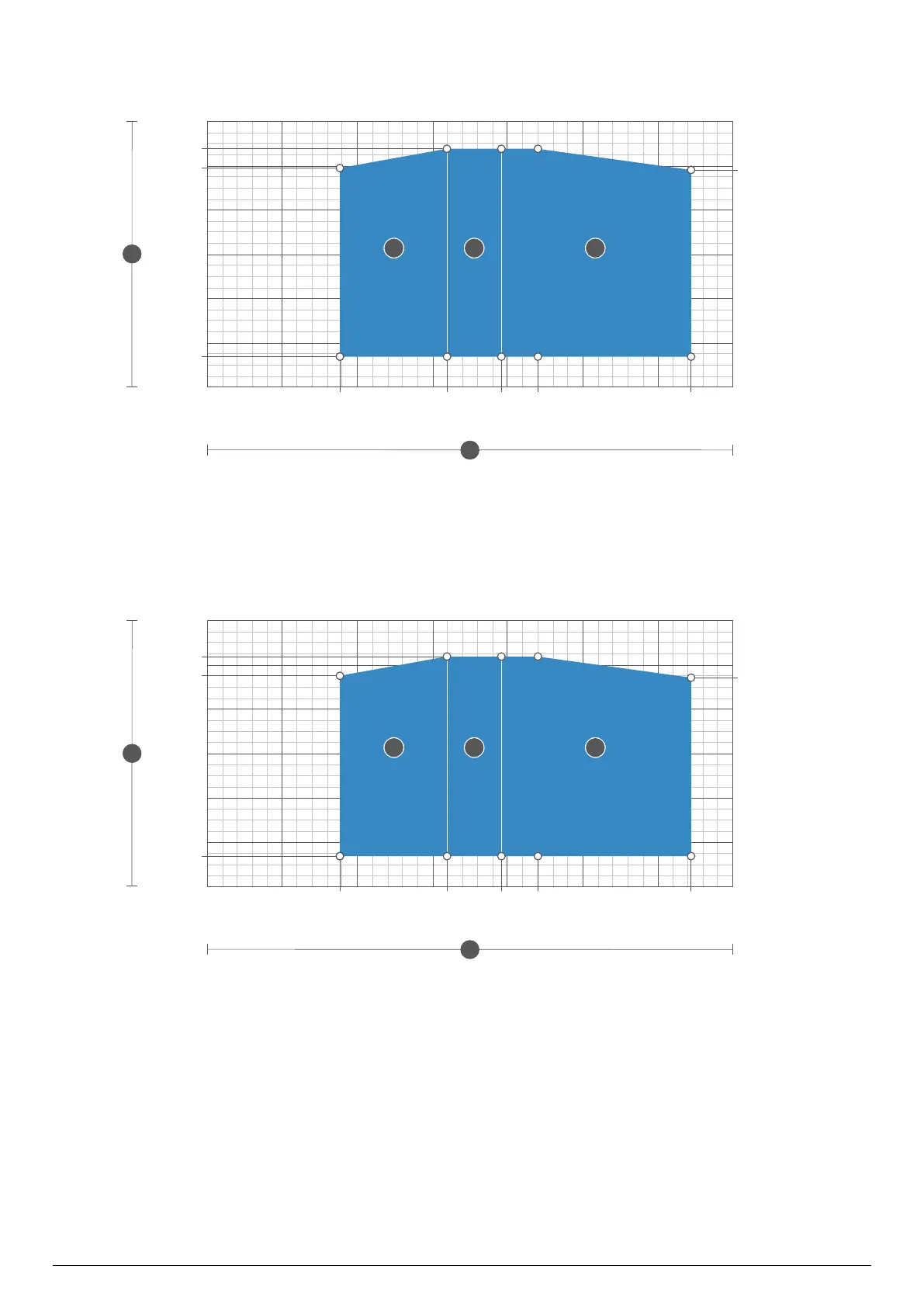

Key
A External air temperature (°F)
B Water produced temperature (°F)
1 Operation with valve Y
2 Operation witj valve Z
3 Operation witjh valve ° / X
B
A
1 2 3
°F
°F
0.0
14.0
40.0
60.0
80.0
97.8
98.6
107.6
120.0
0.0
10.0
17.6 32.0 39.2 44.0 50.0 60.0 64.4 70.0
0675-1250
Key
A External air temperature (°F)
B Water produced temperature (°F)
1 Operation with valve Y
2 Operation witj valve Z
3 Operation witjh valve ° / X
B
A
1 2 3
°F
°F
0.0
14.0
40.0
60.0
80.0
94.2
95.0
104.0
120.0
0.0
10.0
17.6 32.0 39.2 44.0 50.0 60.0 64.4 70.0
