AERMEC NLC 0600 - Page 36

36 22.05  4037360_01
0550060006500675  P1P2P3P4
 Data expressed in inches (")
0.80.8
15.8 15.8
0.7
92.6
41.8
Power supply
124.1
86.6
44.2
43.3
43.3
29.6 11.9 2.0
3.5 3.5
1.9
1.9
26.7 6.826.7 26.7 26.7
A
B
C
Size 0550 0600 0650 0675
INTEGRATED HYDRONIC KIT: 00, 01, 02, 03, 04, P1, P2, P3, P4

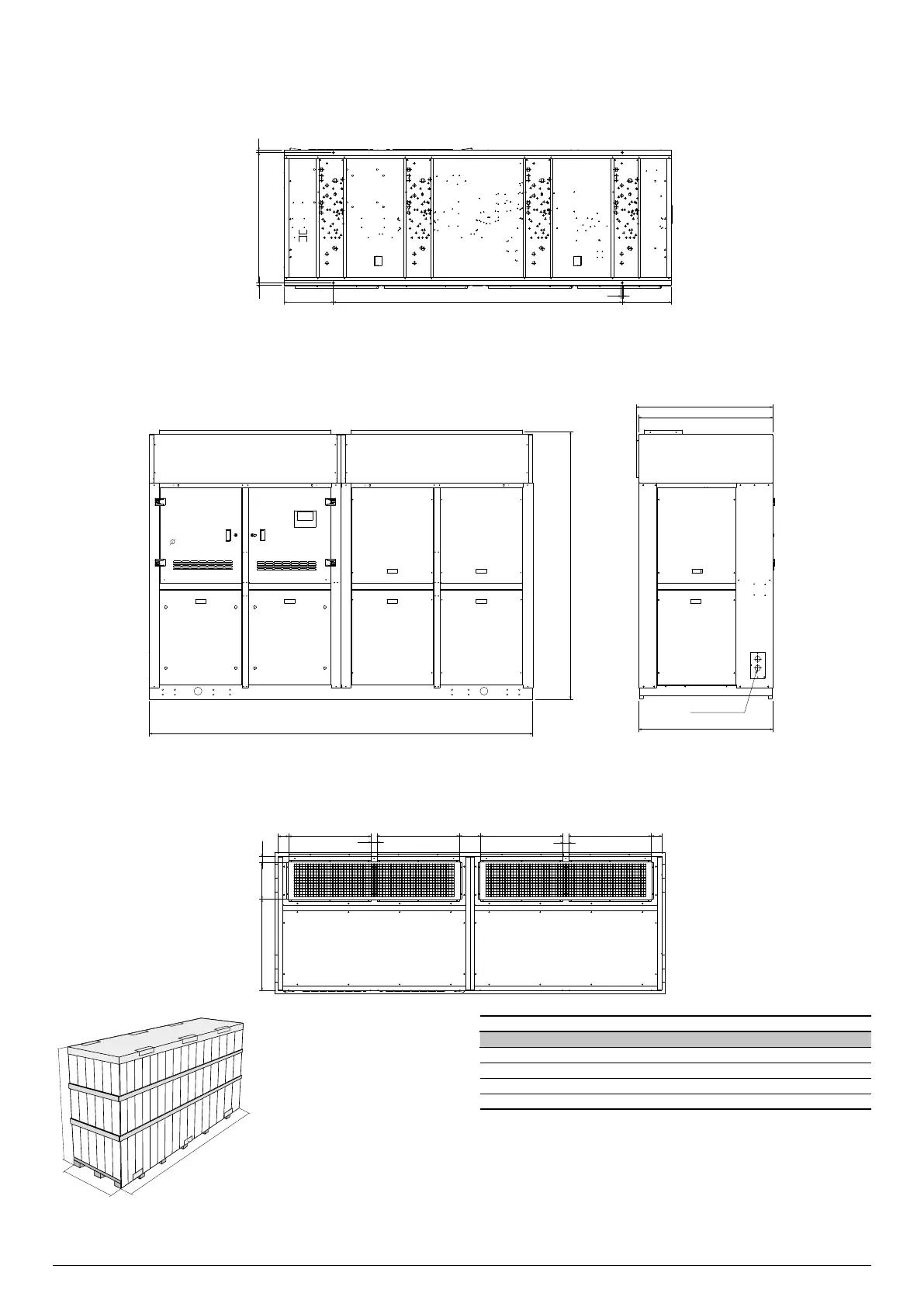

Dimensions and weights for transport
A A in 93.4 93.4 93.4 93.4
B A in 62.2 62.2 62.2 62.2
C A in 137.6 137.6 137.6 137.6
 For the sizes shown in the table, the transportation dimensions refer to the acces-
sory CRATE 22.
