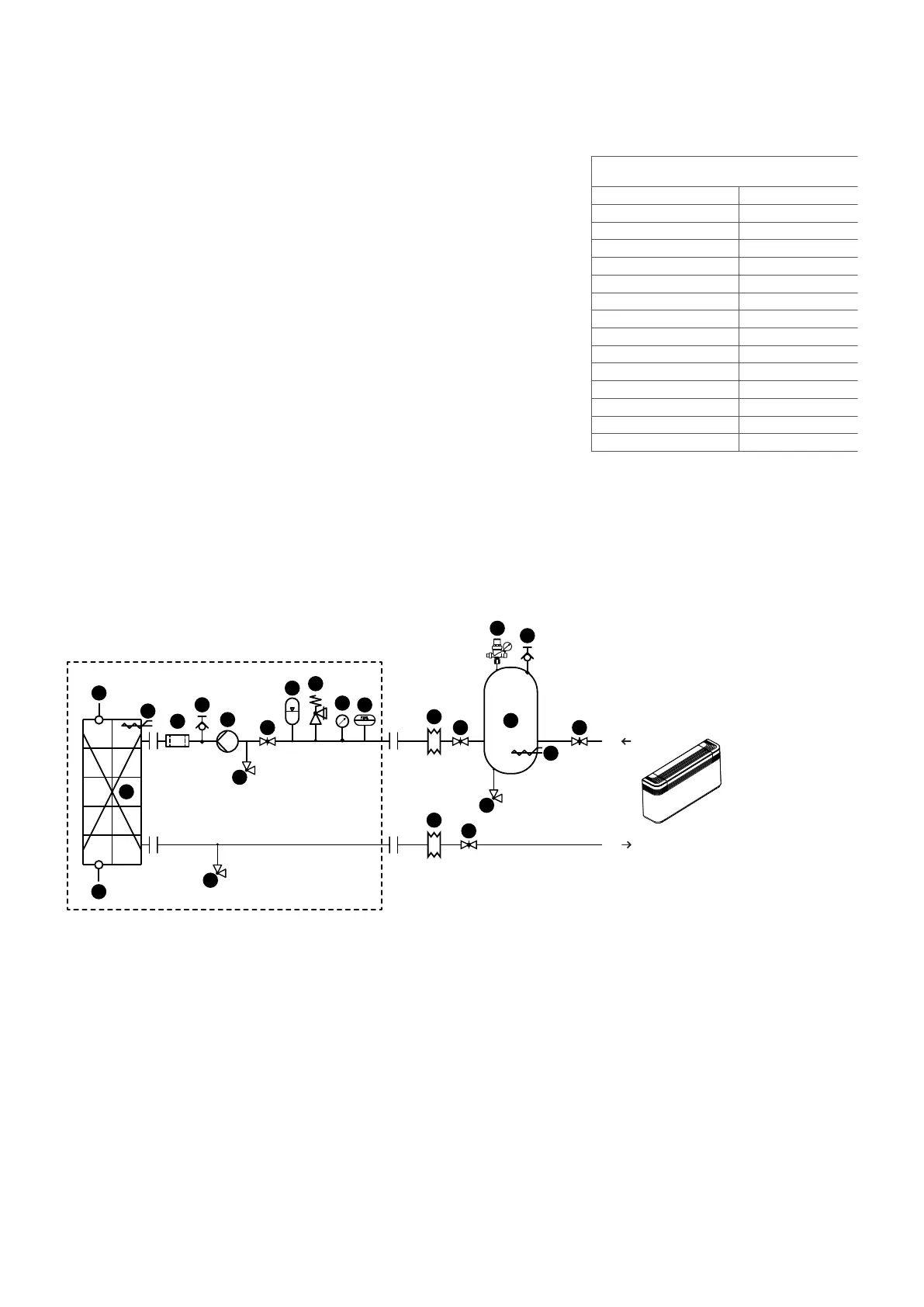

internal and external hydraulic circuit nrB P1-P3 (with PuMP)
3
1
2
2
4
5
6
7
7
8
9
10
12
11
13
13
8 8
8
14
3
7
5
15
Unit Components recommended
COMPONENTS PROVIDED AS STANDARD
1 Plate heat exchanger
2 Water temperature sensors
3 Antifreeze electric heater (standard in the heat exchanger)
4
Water lter
5
Air vent valve
6
Pump
7
Drain valve
8
Cut-o valve
9
Expansion Tank
10
Safety valve
11
Pressure gauges
12
Flow switch
HYDRAULIC COMPONENTS RECOMMENDED EXTERNAL TO UNIT
(RESPONSIBILITY OF THE INSTALLER)
3 Antifreeze electric heater
5
Air vent valve
7
Drain valve
8
Cut-o valve
13
Anti-vibration joints
14
System buer tank (installation recommended whenever the system water content is less than
that indicated in technical manual)
15
Automatic Filling Valve
water features
System: Chiller with plate heat exchanger
PH 7,5-9
Electric conductivity 100-500S/cm
Total hardness 4,5-8,5°dH
Temperature < 65°C
Oxygen content < 0,1 ppm
Max. glycol amount 50%
Phosphates (PO4) < 2ppm
Manganese (Mn) < 0,05 ppm
Iron (Fe) < 0,3 ppm
Alkalinity (HCO3) 70 - 300 ppm
Chloride ions (Cl-) < 50 ppm
Sulphate ions (SO4) < 50 ppm
Sulphide ion (S) none
Ammonium ions (NH4) none
Silica (SiO2) < 30ppm
