20 11_14. 5641200_01
NRL 0280-0750 60Hz
EN

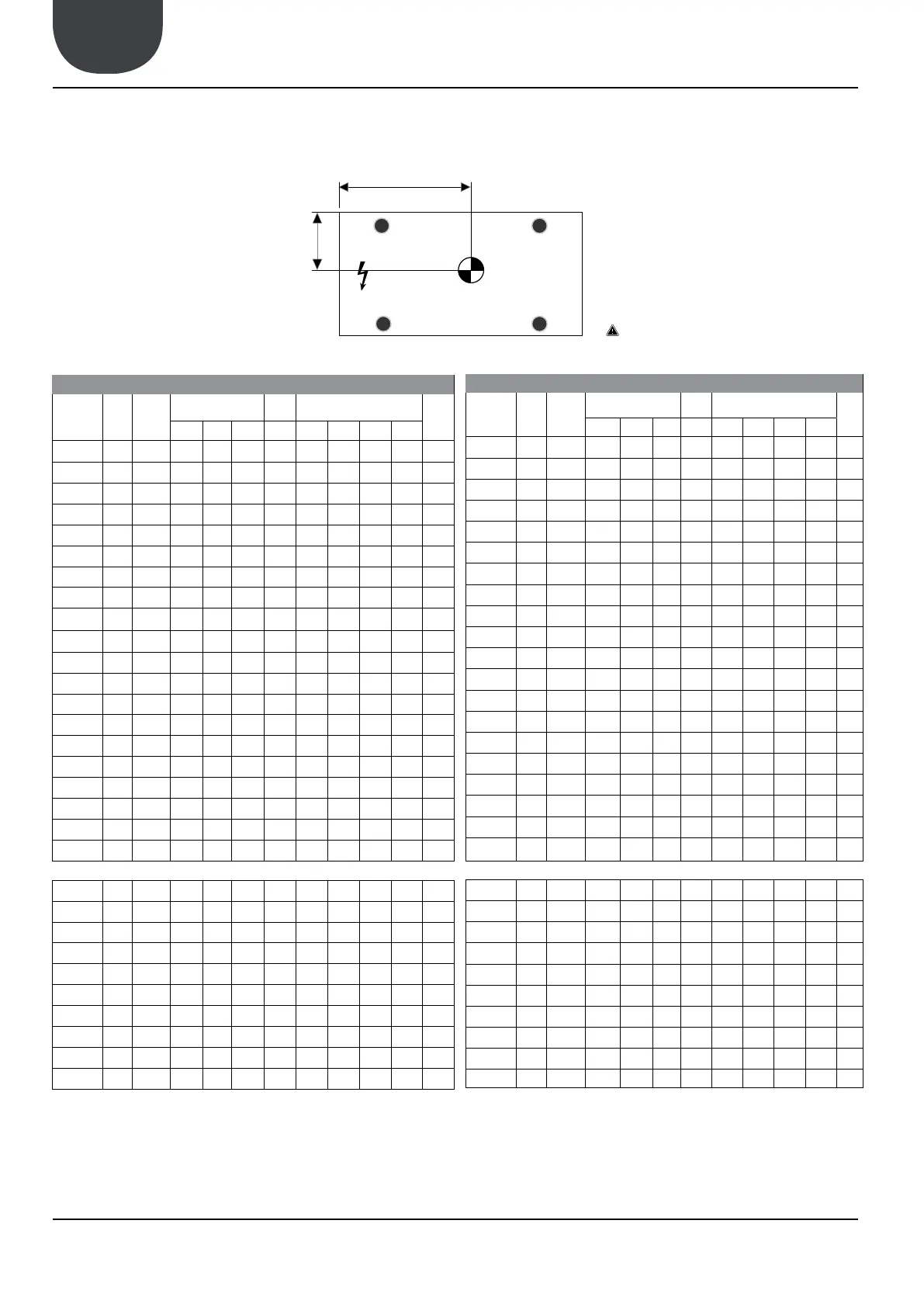

WEIGHT OF EMPTY UNITS
NRL TYPE
WEIGHT
CENTER OF
GRAVITY
PERCENTAGE OF WEIGHT
KIT
VT
Gx mm Gx in Gy mm Gy in 1 2 3 4
NRL0280HE 00 1589 557 21,95 984 38,73 25% 27% 23% 25% VT 17
NRL0280HE 02-04 1997 556 21,89 1144 45,04 21% 23% 27% 29% VT 13
NRL0280HE 01-03 1920 556 21,90 1104 43,46 22% 24% 26% 28% VT 13
NRL0280HE P2-P4 1744 557 21,92 1087 42,78 22% 25% 25% 28% VT 17
NRL0280HE P1-P3 1667 557 21,93 1038 40,85 23% 26% 24% 27% VT 17
NRL0300HE 00 1765 557 21,93 1188 46,78 25% 28% 22% 24% VT 17
NRL0300HE 02-04 2173 556 21,88 1297 51,07 23% 26% 24% 27% VT 13
NRL0300HE 01-03 2096 556 21,88 1266 49,84 24% 26% 24% 26% VT 13
NRL0300HE P2-P4 1920 556 21,91 1265 49,80 24% 26% 24% 26% VT 17
NRL0300HE P1-P3 1843 557 21,92 1228 48,35 25% 27% 23% 25% VT 17
NRL0330HE 00 1775 557 21,94 1184 46,60 25% 28% 22% 24% VT 17
NRL0330HE 02-04 2183 556 21,88 1293 50,90 23% 26% 24% 27% VT 13
NRL0330HE 01-03 2106 556 21,89 1262 49,68 24% 26% 24% 26% VT 13
NRL0330HE P2-P4 1930 557 21,91 1261 49,63 24% 27% 23% 26% VT 17
NRL0330HE P1-P3 1853 557 21,92 1224 48,18 25% 27% 23% 25% VT 17
NRL0350HE 00 1948 557 21,93 1208 47,55 25% 28% 22% 25% VT 17
NRL0350HE 02-04 2356 556 21,88 1305 51,37 23% 26% 24% 27% VT 13
NRL0350HE 01-03 2279 556 21,89 1276 50,25 24% 26% 24% 26% VT 13
NRL0350HE P2-P4 2103 557 21,91 1276 50,26 24% 26% 24% 26% VT 17
NRL0350HE P1-P3 2025 557 21,92 1243 48,95 24% 27% 23% 26% VT 17
NRL0500HA 00 2181 565 22,26 1236 48,65 28% 30% 20% 22% VT 13
NRL0500HA 02-04 2639 563 22,15 1416 55,76 25% 27% 23% 25% VT 10
NRL0500HA 01-03 2553 563 22,17 1369 53,89 26% 27% 23% 24% VT 10
NRL0500HA P2-P4 2353 564 22,22 1352 53,22 26% 28% 22% 24% VT 13
NRL0500HA P1-P3 2267 565 22,24 1296 51,02 27% 29% 21% 23% VT 13
NRL0550HA 00 2219 567 22,34 1226 48,28 28% 30% 20% 21% VT 13
NRL0550HA 02-04 2678 564 22,22 1406 55,35 25% 27% 23% 24% VT 10
NRL0550HA 01-03 2592 565 22,24 1359 53,50 26% 28% 22% 24% VT 10
NRL0550HA P2-P4 2391 566 22,29 1341 52,81 26% 28% 22% 23% VT 13
NRL0550HA P1-P3 2305 567 22,31 1286 50,63 27% 29% 21% 22% VT 13
WEIGHT OF RUNNING UNITS
NRL TYPE
WEIGHT
CENTER OF
GRAVITY
PERCENTAGE OF WEIGHT
KIT
VT
Gx mm Gx in Gy Gy in 1 2 3 4
NRL0280HE 00 1626 550 21,66 991 39,00 VT 17
NRL0280HE 02-04 2695 550 21,66 1243 48,95 VT 13
NRL0280HE 01-03 2618 550 21,66 1217 47,90 VT 13
NRL0280HE P2-P4 1780 550 21,66 1091 42,94 VT 17
NRL0280HE P1-P3 1703 550 21,66 1043 41,06 VT 17
NRL0300HE 00 1808 548 21,59 1196 47,08 VT 17
NRL0300HE 02-04 2878 549 21,62 1356 53,39 VT 13
NRL0300HE 01-03 2800 549 21,61 1334 52,54 VT 13
NRL0300HE P2-P4 1963 549 21,60 1271 50,02 VT 17
NRL0300HE P1-P3 1886 549 21,60 1235 48,61 VT 17
NRL0330HE 00 1823 549 21,60 1190 46,87 VT 17
NRL0330HE 02-04 2892 549 21,62 1352 53,23 VT 13
NRL0330HE 01-03 2815 549 21,62 1330 52,37 VT 13
NRL0330HE P2-P4 1977 549 21,61 1265 49,80 VT 17
NRL0330HE P1-P3 1900 549 21,60 1229 48,39 VT 17
NRL0350HE 00 2001 549 21,63 1212 47,72 VT 17
NRL0350HE 02-04 3070 550 21,64 1357 53,41 VT 13
NRL0350HE 01-03 2993 550 21,64 1336 52,61 VT 13
NRL0350HE P2-P4 2155 549 21,63 1279 50,35 VT 17
NRL0350HE P1-P3 2078 549 21,63 1247 49,08 VT 17
NRL0500HA 00 2237 558 21,98 1244 48,97 VT 13
NRL0500HA 02-04 3798 555 21,85 1572 61,88 VT 10
NRL0500HA 01-03 3712 555 21,85 1543 60,74 VT 10
NRL0500HA P2-P4 2409 558 21,96 1357 53,42 VT 13
NRL0500HA P1-P3 2323 558 21,97 1302 51,28 VT 13
NRL0550HA 00 2282 560 22,06 1234 48,59 VT 13
NRL0550HA 02-04 3843 556 21,89 1562 61,51 VT 10
NRL0550HA 01-03 3757 556 21,90 1533 60,37 VT 10
NRL0550HA P2-P4 2454 560 22,03 1346 52,98 VT 13
NRL0550HA P1-P3 2368 560 22,04 1292 50,87 VT 13
Gy
Gx
1
3
2
4
TOP VIEW
