22 11_14. 5641200_01
NRL 0280-0750 60Hz
EN
11. HYDRAULIC CIRCUIT
11.1.
ATTENTION
The choice and the installation of
components external to the NRL
up to the installer, who must ope-
rate according to the rules of good
technical design and in compliance
with the regulations in force in the
country of destination.
ATTENTION
The hydraulic pipes connecting to
the machine must be properly si-
zed to the actual flow of water re-
quired by the system in operation.
The water flow to the exchanger
must always be constant.
ATTENTION
Carefully wash the plant, before
connecting the unit. This allows
cleaning to remove any residue
such as weld spatter, slag, rust or
other impurities from the pipes.
These substances may otherwise
accumulate in and cause a machi-
ne malfunction. The connecting
pipes should be supported so as
not to weigh, with their weight on
the unit.

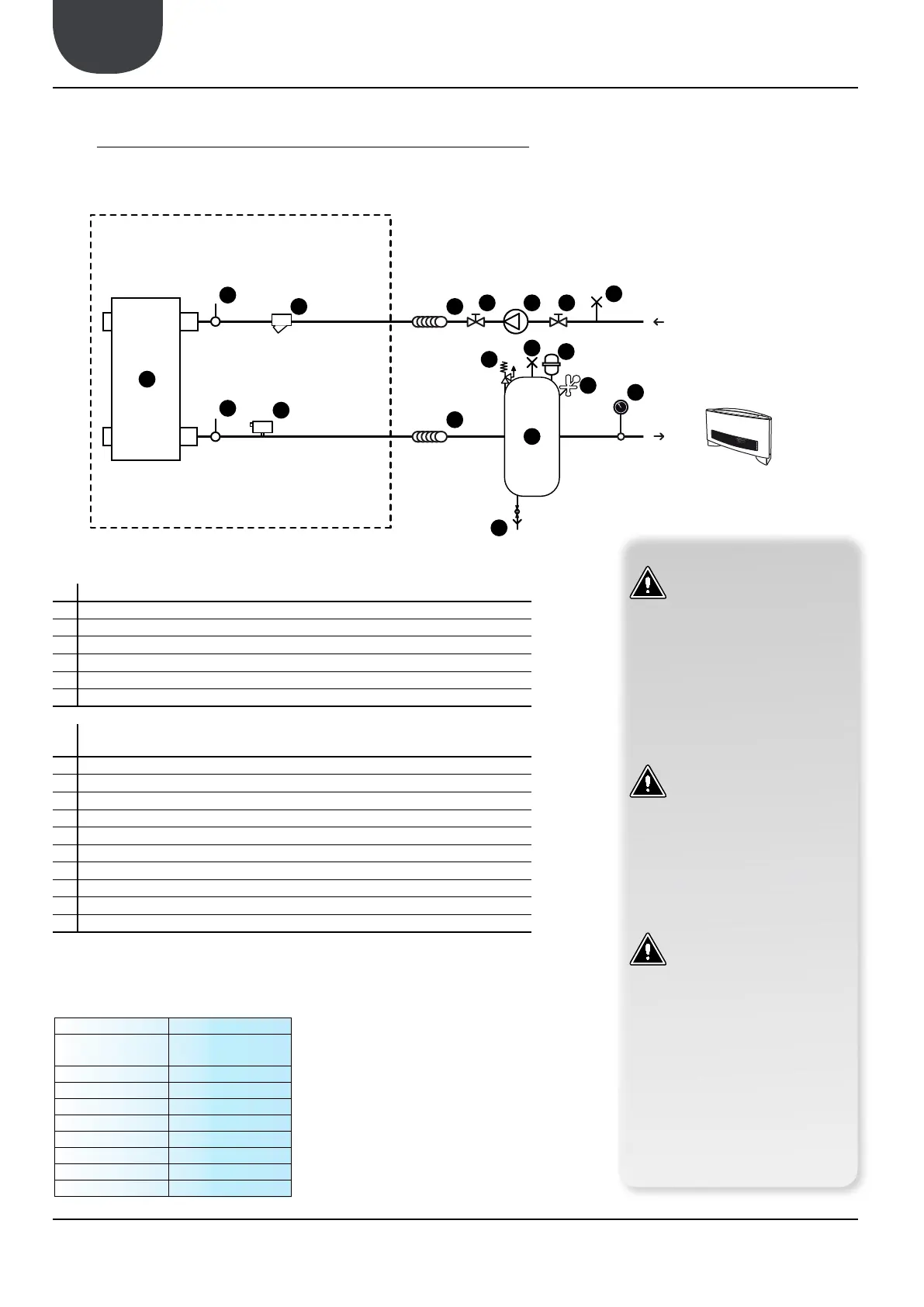

THE DRAWINGS ARE ONLY EXAM-
PLES OF THE HYDRAULIC CIRCUIT.
STANDARD COMPONENT
1 Exchanger plate (SYSTEM SIDE)
2 Water filter (fitted)
3
4
5 Ball stop drain
6 Air Vent
RECOMMENDED COMPONENTS NOT SUPPLIED
6 Air Vent
7 Anti-vibration couplings
8
Pump
9
Storage tank
10 Expansion tank
11 Safety valve
12 Ball stop Tank
13 Charging unit
14 Ball Stop
15 Manometer
1
2
3
4
4
6
7
8
14
14
7
6
15
9
10
13
12
11
VERSIONE “00”
FORNITO DI SERIE:
1. scambiatore
2. ltro acqua
3. ussostato
4. sonde temperatura acqua (IN-OUT)
5. rubinetto di scarico
6. valvola di sato
NON FORNITO / CONSIGLIATO:
6. valvola di sato
7. giunti antivibranti
8. pompa
9. accumulo
10. vaso d’espansione
11. valvola di sicurezza (bar..?)
12. scarico accumulo
13. gruppo di caricamento
14. valvola d’intercettazione
15. manometro
HYDRAULIC COMPONENTS
NRL
EXTERNAL UNIT HYDRAULIC
RECOMMENDED COMPONENT
PH 6-8
Electric
conductivity
less than 200 mV/cm
Chloride ions less than 50 ppm
Sulphuric acid ions less than 50 ppm
Total iron less than 0.3 ppm
Alkalinity M less than 50 ppm
Total hardness less than 50 ppm
Sulphur ions none
ammonia ions none
Silicone ions less than 30 ppm
