The unit control panel allow the quick se ng and
display of the unit’s opera ng parameters. The board
memorises all the default se ngs and any modifi ca-
ons. By installing the remote control panel PGD1 it is
possible to remotely replicate all the func ons and the
se ngs available on the unit. A er a power failure the
unit is capable of an automa c restart, retaining the
original se ngs.

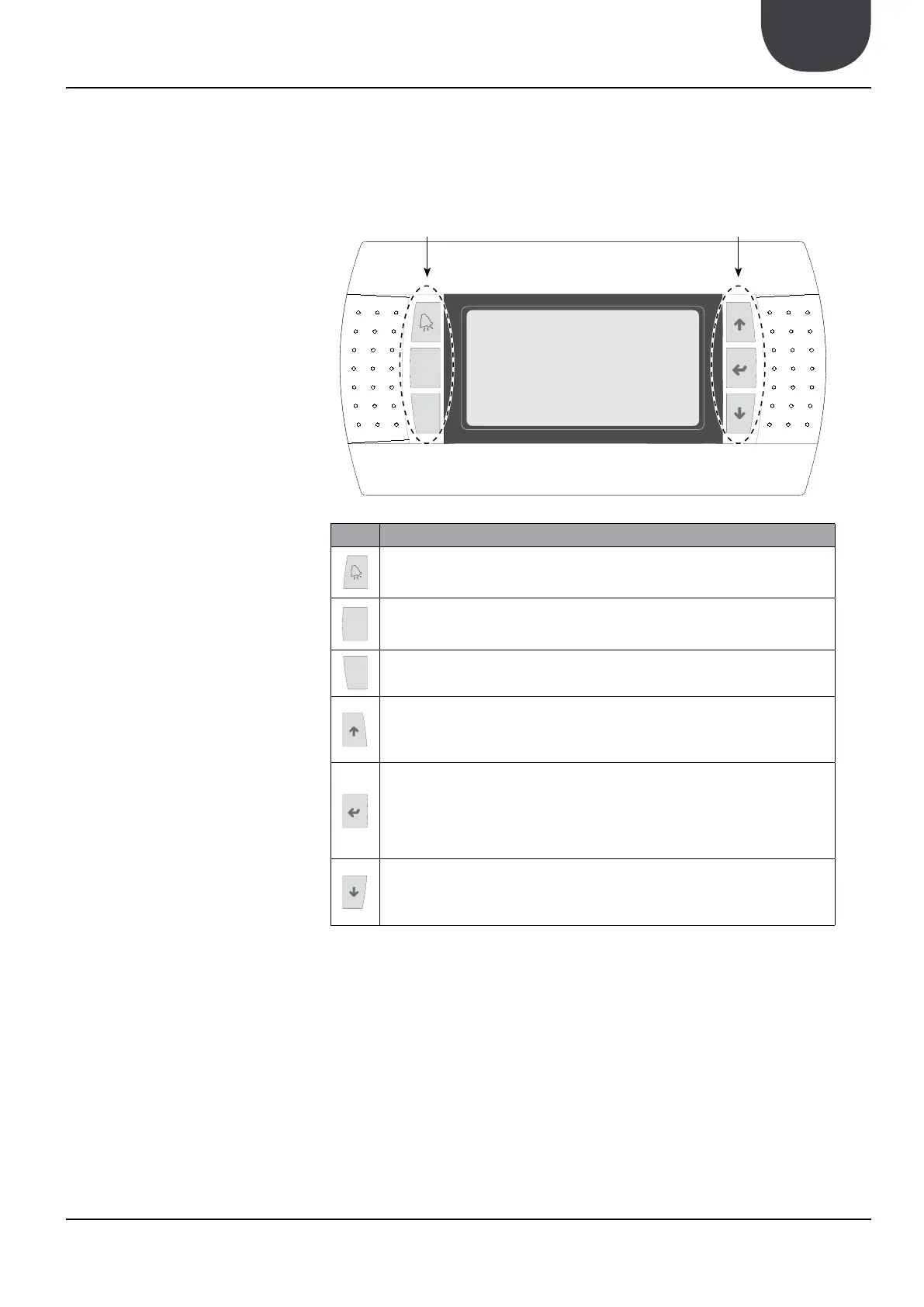

The user interface consists of a graphic display with
six naviga on keys; the display is arranged through a
menu hierarchy, ac vated by pressing the naviga on
keys. The default display of these menus is the main
screen. The naviga on between the various parame-
ters is by using the arrow keys located to the right of
the display. These keys are also used for the modifi ca-
on of the selected parameter.
Key Fucntion
ALARM key
Displays the list of active and historical alarms
(red LED on = active alarm)
MENU ACTIVATION key
• Pressing this key activates the navigation between menus
(orange LED on = winter operating mode active)
EXIT MENU key
• Pressing this key returns to the previous menu
• Pressing this key when navigating between menu/parameters passes to the next
menu/parameter
• Pressing this key when modifying a parameter increases the value of the selected parameter
• Pressing this key when navigating between menus allows entry to the selected menu
• Pressing this key when navigating between parameters allows selection of the parameter
displayed to modify it
• Pressing the key when modifying a parameter confirms the modification of the parameter value
selected
• Pressing this key when navigating between menu/parameters passes to the previous menu/
parameter
• Pressing this key when modifying a parameter decreases the value of the selected parameter
Control Keys
INTERFACE CONTROL KEYS
Control Keys
