AERMEC NRL 0280 E - Page 26

26 11_14. 5641200_01
NRL 0280-0750 60Hz
EN
I/ O set prog.
max 50 m
cavo tele fonico
0,8 m
200 m
S90CONN
Cavo schermato
AWG24
2 twisted pair
6543 2 1 0 6 5 4 3 210
I/O set prog.
6 5 4 3 2 1 0
200 m
Cavo schermato
AWG24
2 twisted pair
Cavo telefonico
KIT PGD1
(ACCESSORIO)
Scheda seriale
RS485P1
(ACCESSORIO)
S90CONN*:
cavo di collegame nto
Cavo telefonico
External Alarm
J15 - N08/C8/NC8


Remote Control



External Circuit Breaker


• The address to enable
remote panel is 31

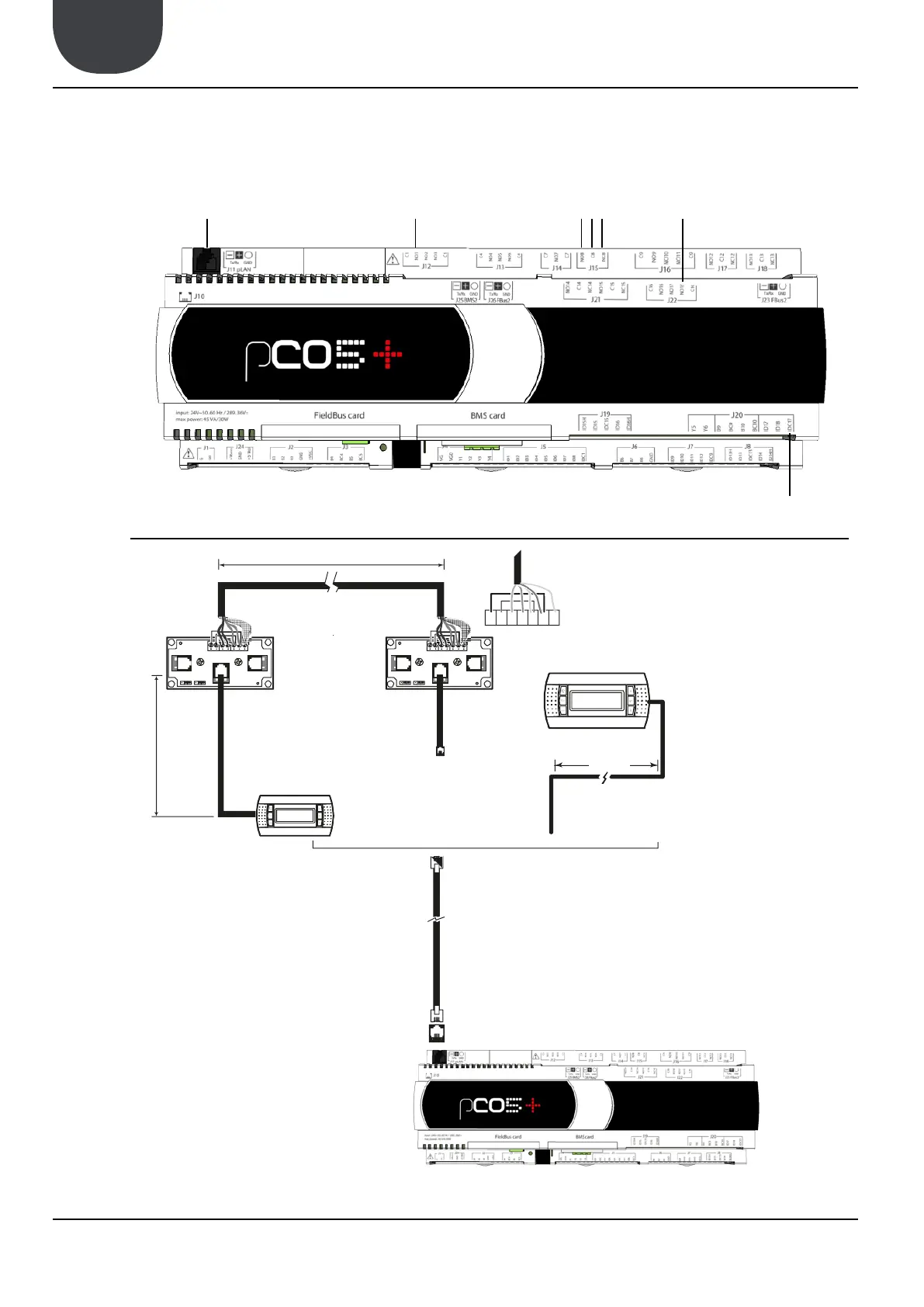

AUXILIARY CONNECTIONS

