AERMEC NRP 0800 - 10 POSITION OF HYDRAULIC CONNECTIONS; NRP 0800-0900 | version 00; NRP 0800-0900 | versions R1-R2-R3-R4-P1-P2-P3-P4; NRP 1000 version 00

22 22.11  5806712_07

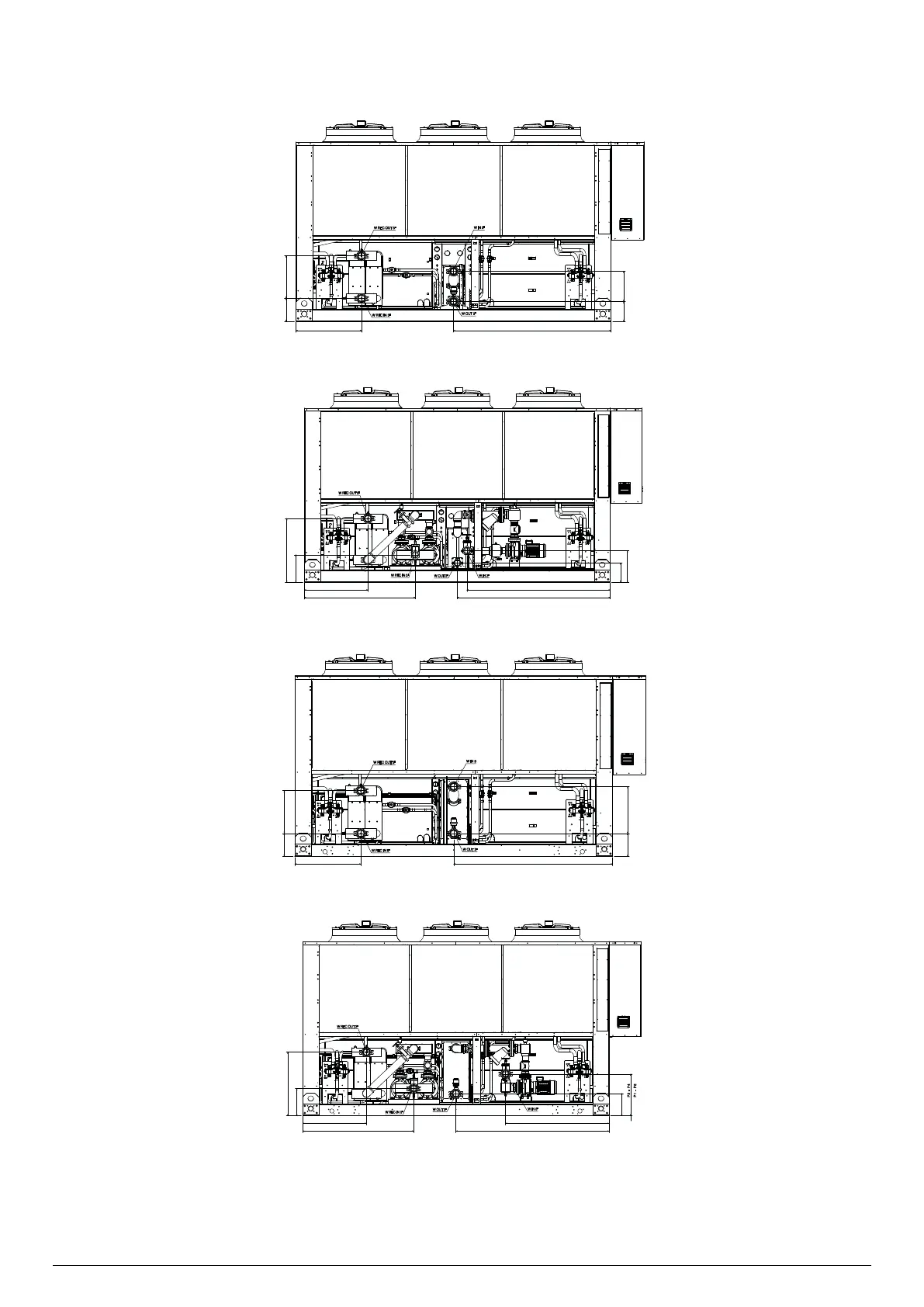

9 POSITION OF HYDRAULIC CONNECTIONS
NRP 0800÷0900 | version “00”
20.4 in 11.0 in
31.5 in 75.8 in
9.5 in 14.5 in
NRP 0800÷0900 | versionS “R1-R2-R3-R4 - P1-P2-P3-P4”
31.5 in
13.5 in
31.5 in
55.0 in
75.8 in
71.1 in
9.5 in
15.6 in
NRP 1000 | version “00”
11.0 in 20.4 in
31.5 in 75.8 in
11.0 in 22.4 in
NRP 1000 | versions “R1-R2-R3-R4 - P1-P2-P3-P4”
31.5 in
31.5 in
13.5 in
55.0 in
75.8 in
51.2 in
14.1 in
20.7 in
