AERMEC NXW0500 - Page 29

29
INXWPY. 1610. 4438880_01

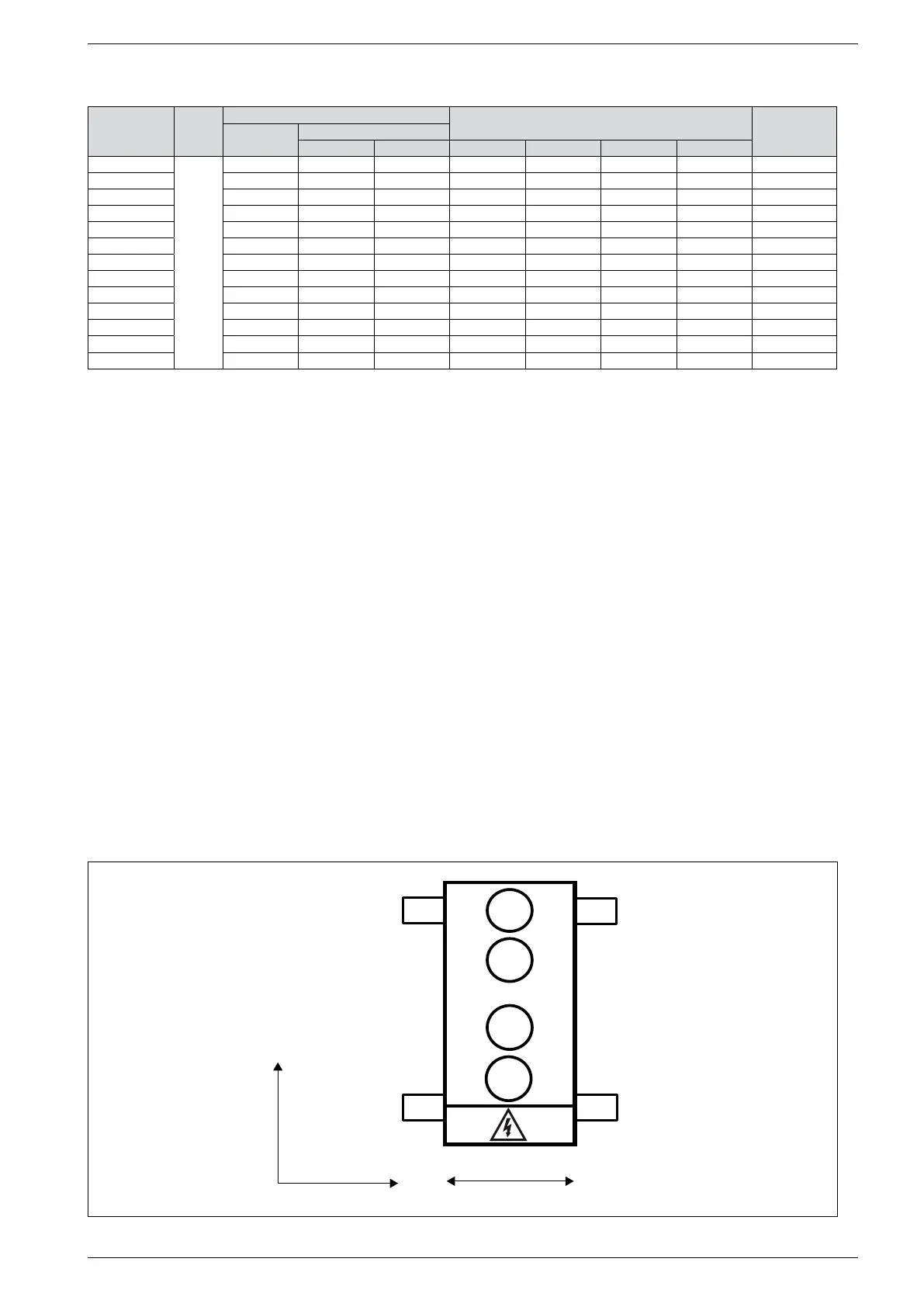

9.12. PERCENTAGE DISTRIBUTION OF WEIGHTS ON SUPPORTS VERSION CONDENSERLESS  SILENCED MODE EALL SIZE
MODEL VERS.
EMPTY
PERCENTAGE WEIGHT DISTRIBUTION ON
SUPPORTS (%)
AVX
Weight
CENTRE OF GRAVITY
Xg Yg A B C D
NXW0500
LE
697 388 787 30% 28% 22% 21% 309
NXW0550 702 389 786 30% 28% 22% 21% 309
NXW0600 782 391 835 28% 27% 23% 22% 310
NXW0650 791 392 836 28% 27% 23% 22% 303
NXW0700 810 392 839 28% 27% 23% 22% 303
NXW0750 968 399 1030 26% 26% 24% 24% 310
NXW0800 1104 400 1176 26% 26% 24% 24% 314
NXW0900 1244 404 1148 26% 27% 23% 24% 314
NXW1000 1460 407 1238 24% 25% 25% 26% 315
NXW1250 1504 406 1235 24% 25% 25% 26% 315
NXW1400 1558 403 1251 24% 24% 26% 26% 317
NXW1500 1558 403 1251 24% 24% 26% 26% 317
NXW1650 1558 403 1251 24% 24% 26% 26% 317
C
D
A
B
800 mm
Yg
Xg
SCHEMA DI DISTRIBUZIONE PESI
SUGLI APPOGGI
DIAGRAM DISTRIBUTION OF
WEIGHTS ON SUPPORTS
