11
HYDRAULIC CONNECTIONS

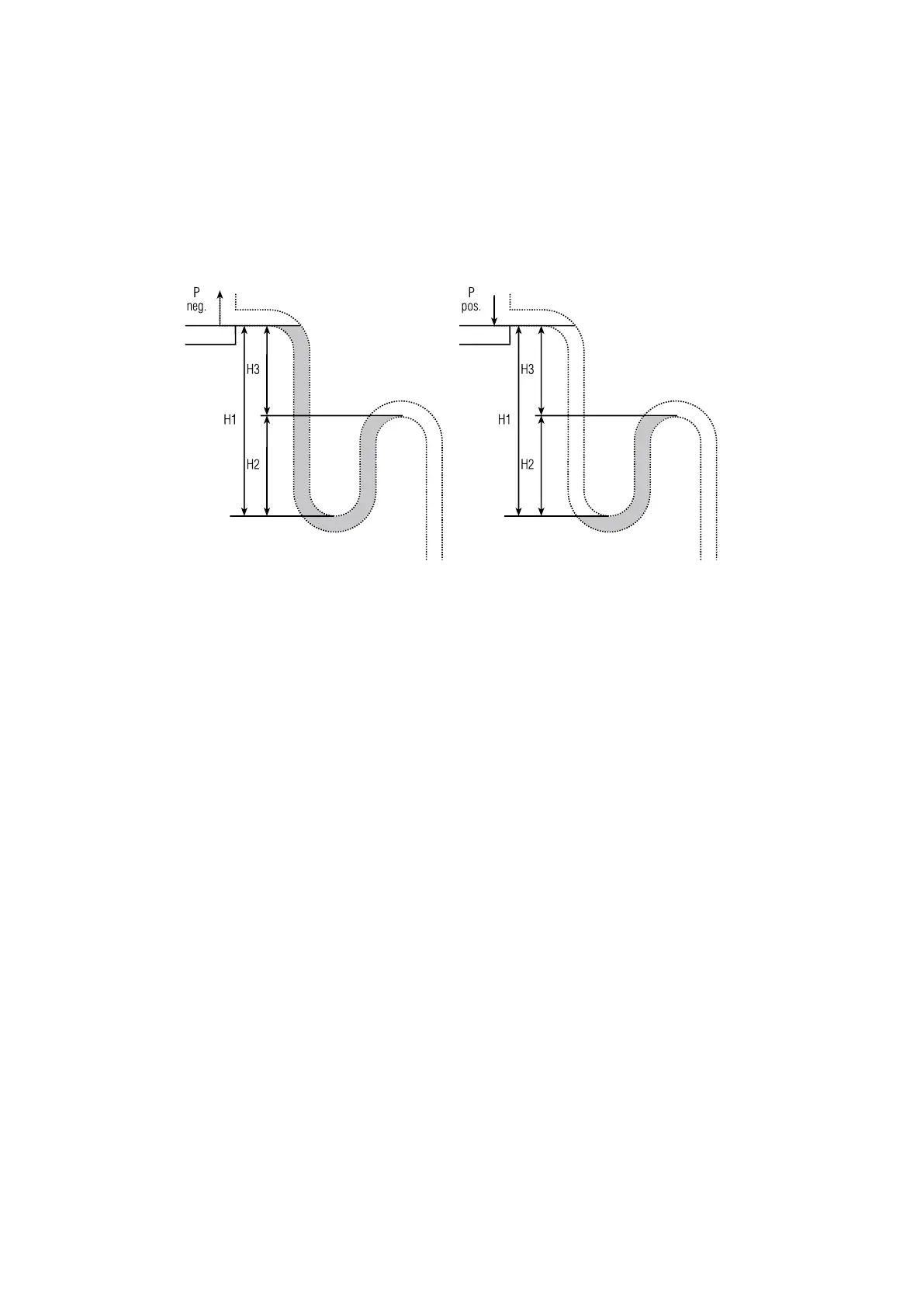

CONDENSATE DRAIN
•
•
•
•
NOTE
A label bearing the recommended dimensions of the siphon is xed on the
external panelling at the point of the condensate drain.
H1 = 2P
H2 = H1/2
H1 = 2P
H2 = H1/2
with P = pressure expressed in mm of water column (1 mm approx = 9.81 Pa).
WATER COILS
•
•
•
•
•
•
•
•
•
