AERMEC RPLI - WIRING DIAGRAM; WIRING DIAGRAM LABEL - RPLI 030 L - 100 L-200 L; WIRING DIAGRAM LABEL - RPLI 050 L - 070 L-140 L - 300 L

22

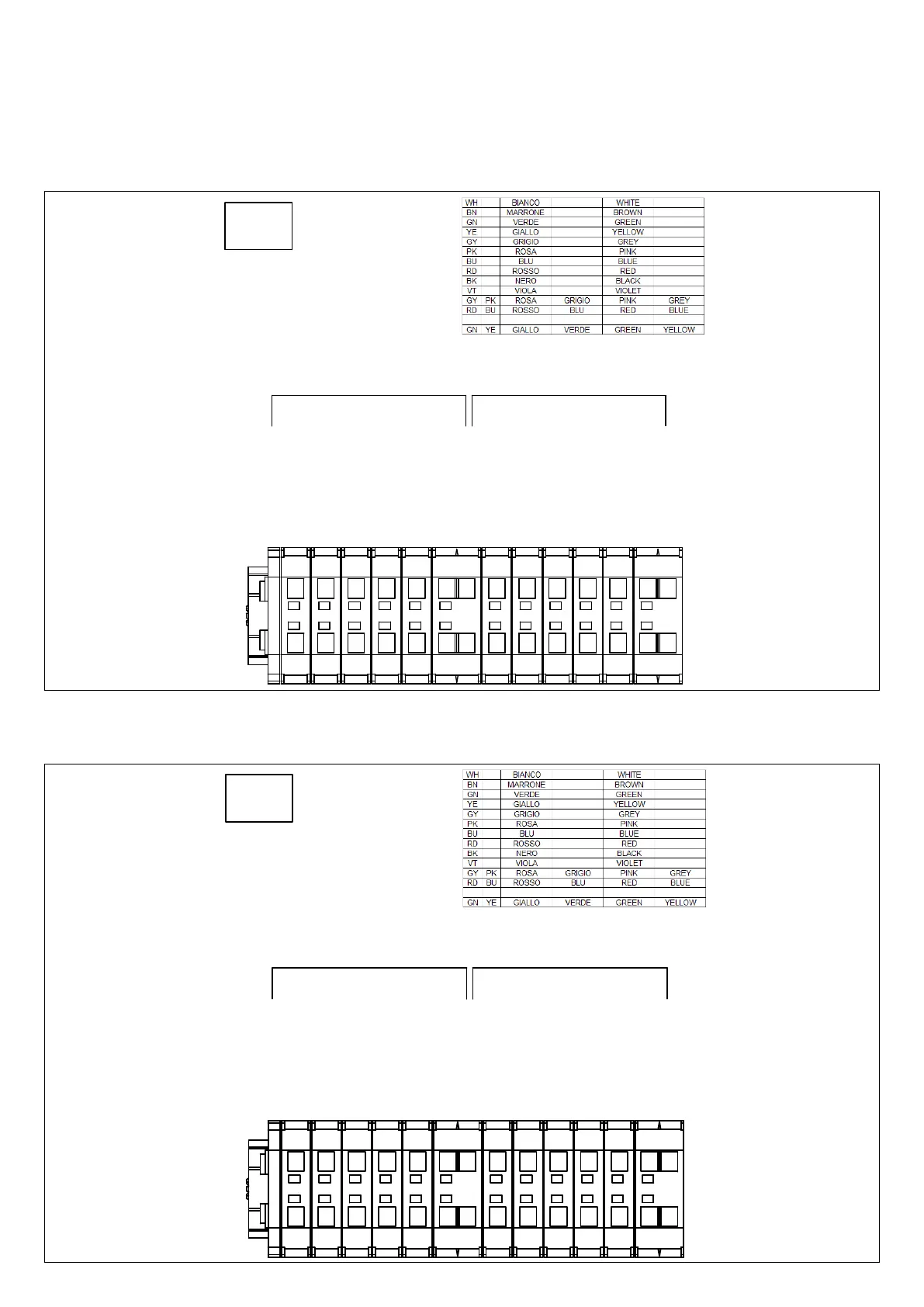

WIRING DIAGRAM
WIRING DIAGRAM LABEL - RPLI 030L - 100L - 200L
WIRING DIAGRAM LABEL - RPLI 050L - 070L -140L - 300L
cod. schema 072E001
cod. 0660034 R3G280RP54B1
cod. 0660033 R3G250RO40A1
cod. 0660035 R3G225RE0703
GNYE - PE YE / GN - Signal 10V BU - N RD / BN - +10Vdc BU / YE - GND Signal
SUPPLY FAN
BK / BN - 230Vac
EXHAUST FAN
ZULUFT VENTILATOR ABLUFT VENTILATOR
VENTILATORE RIPRESAVENTILATORE MANDATA
VENTILATEUR REPRISEVENTILATEUR SOUFFLAGE
GNYE - PE YE / GN - Signal 10V BU - N RD / BN - +10Vdc BU / YE - GND Signal BK / BN - 230Vac
rev.02
ET00089
cod. schema 072E001
cod. 0660034 R3G280RP54B1
cod. 0660033 R3G250RO40A1
cod. 0660035 R3G225RE0703
GNYE - PE GN(GY) - Signal 10V BU - N BN - +10Vdc WH(BK) - GND Signal
SUPPLY FAN
BN - 230Vac
EXHAUST FAN
ZULUFT VENTILATOR ABLUFT VENTILATOR
VENTILATORE RIPRESAVENTILATORE MANDATA
VENTILATEUR REPRISEVENTILATEUR SOUFFLAGE
GNYE - PE GN(GY) - Signal 10V BU - N BN - +10Vdc WH(BK) -GND Signal BN - 230Vac
rev.01
ET00055
