AERMEC RV - Page 14

45
L
I
Out
In
A
BC D EF
G
H
M
O
P
ø 80

















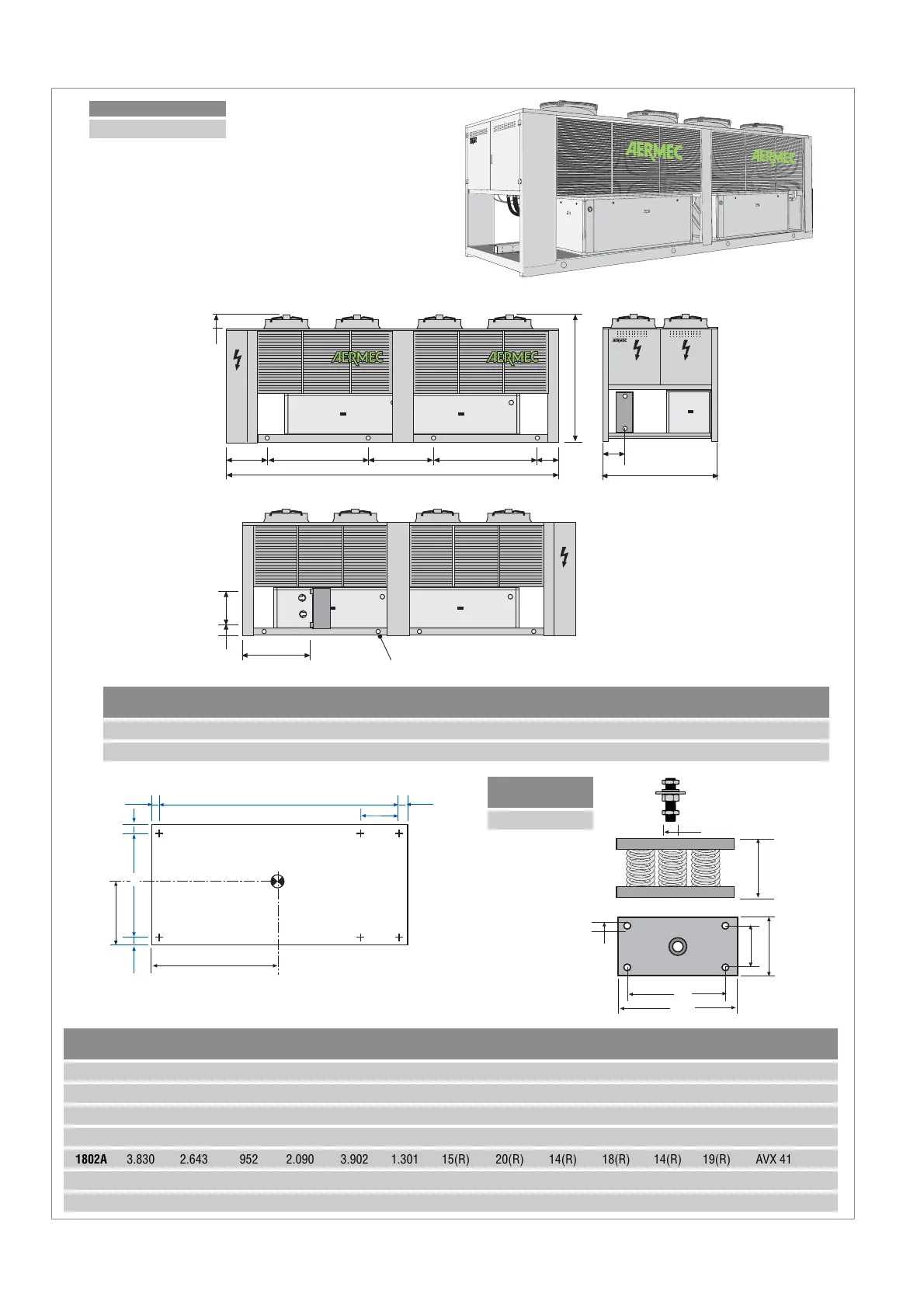

Mod. Dimensioni • Dimensions Attacchi•Connections
A B C D E F G H I L M O P Ø IN Ø AUT
1602 A EH 5.100 594 1.551 800 1.551 594 2.325 250 280 2.200 975 230 628 V 3” V 3”
1802 LA EH 5.100 594 1.551 800 1.551 594 2.325 250 280 2.200 975 230 628 V 3” V 3”
Mod. Peso Kit antivibarnti
Weight Gx Gy e f g A% B% C% D % G% I% Kit antivibrations
1602A 3.665 2.588 920 2.090 3.902 1.301 15(R) 20(R) 12(R) 17(R) 15(R) 21(R) AVX 37
1602E 3.935 2.588 920 2.090 3.902 1.301 15(R) 20(R) 12(R) 17(R) 15(R) 21(R) AVX 41
1602H 3.850 2650 954 2.090 3.902 1.301 14(R) 18(R) 12(R) 16(R) 17(R) 23(R) AVX 41
1802L 3.600 2.637 940 2.090 3.902 1.301 15(R) 20(R) 13(R) 18(R) 14(R) 20(R) AVX 37
1802A 3.830 2.643 952 2.090 3.902 1.301 15(R) 20(R) 14(R) 18(R) 14(R) 19(R) AVX 41
1802E 4.110 2.643 952 2.090 3.902 1.301 15(R) 20(R) 14(R) 18(R) 14(R) 19(R) AVX 41
1802H 4.040 2.650 986 2.090 3.902 1.301 12(R) 14(R) 9(R) 11(R) 24(R) 30(R) AVX 41
M12
94
174
140
9
80
114
ANTIVIBRANTI
ANTIVIBRANTIONS
serie R
RV 1602 A - E - H
RV 1802 L - A - E - H
