aermotor FH75 - Repair Parts

Repair Parts 9
1
2
3
4
5
6
7
8
10
9A
11
10
10
10
9B
17
18
19
13
12
11
14
15
16
REPAIR PARTS LIST: “FH” Series, 1/2 and 3/4 HP
Model and Horsepower
Key Part No. FH50 FH50S FHP50 FH75
No. Description Used 1/2 HP 1/2 HP 1/2 HP 3/4 HP
1 Motor, 115/230V 1 77012B 77013B 77013B 77014B
2 Water Slinger 1 17351-0009 17351-0009 17351-0009 17351-0009
3 Seal Plate Assembly (Incl. #5) 1 056592 056592 056592 056592
4 Seal Plate Gasket 1 C20-77 C20-77 C20-77 C20-77
5 Shaft Seal 1 U109-6A U109-6A U109-6A U109-6A
6 Impeller 1 A56712 A56712 A56712 A56712
7 Diffuser 1 056796 056796 056796 056796
8 Diffuser Ring 1 L21-1 L21-1 L21-1 L21-1
9A Venturi 1 27396 34397 34398 27403
9B Nozzle 1 27921 27925 27922 27926
10 Capscrew 1/4-18 Square Head 1 27061LT 27061LT 27061LT 27061LT
11 1/4” NPT 90 Degree Connector 2 U11-218P U11-218P U11-218P U11-218P
12 Tank Body 1 34712 34712 34712 34712
13 Pressure Switch Tube 1 U37-677P U37-677P U37-677P U37-677P
14 Pressure Switch 1 74782 74782 74782 74782
15 Locknut 1/2” 1 U36-112ZP U36-112ZP U36-112ZP U36-112ZP
16 Connector 1/2” 1 L43-5C L43-5C L43-5C L43-5C
17 Capscrew #3/8-16 4 U30-75ZP U30-75ZP U30-75ZP U30-75ZP
18 Base Assembly Painted 1 J4-9 J4-9 J4-9 J4-9
19 Rubber Pad 1 32364 32364 32364 32364

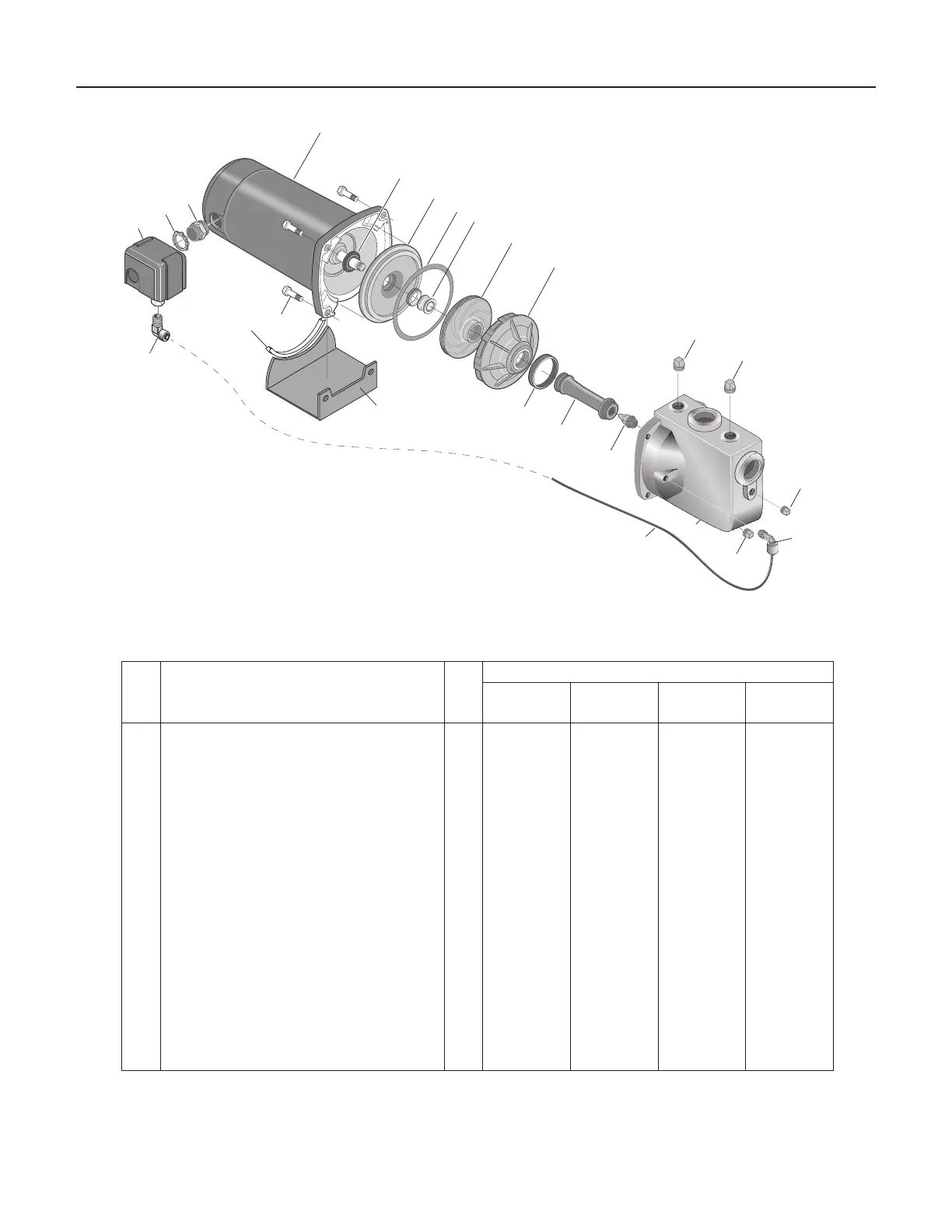

Exploded View
“FH” Series – 1/2 and 3/4 HP
