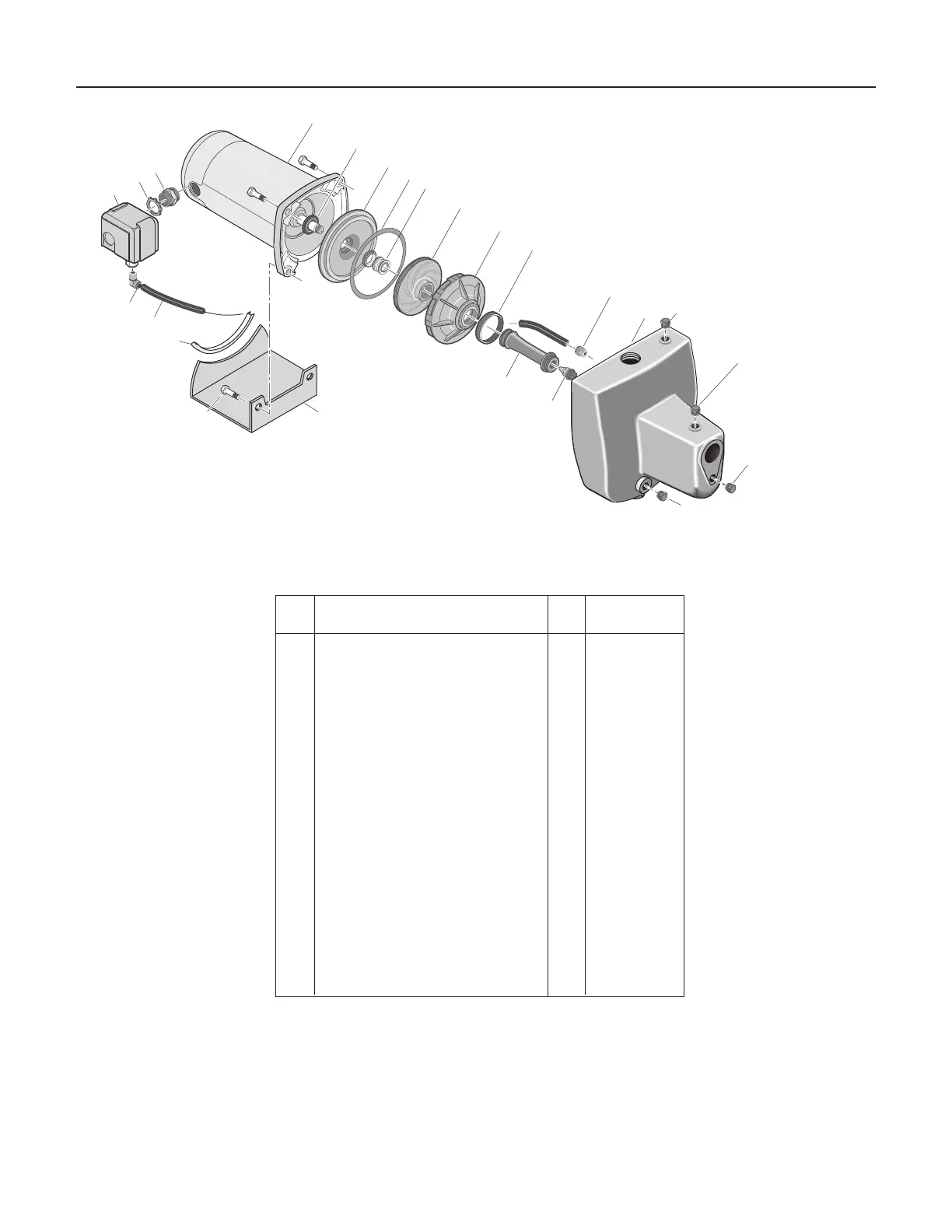

aermotor FHSN-100 - Repair Parts

Repair Parts 11
1
2
3
4
5
6
7
8
11B
12
12
10
9
12
11A
14
13
17
18
19
15
20
16
12
REPAIR PARTS LIST
(AVC Port)
Key Part No. FHSN-100
No. Description Used 1 HP
1 Motor 1 J218-596PKG
#§2 Water Slinger 1 17351-0009
3 Seal Plate 1 L3-10
#§4 Seal Plate Gasket 1 C20-21
#§5 Shaft Seal 1 U109-6A
#6 Impeller 1 J105-8PAN
#7 Diffuser 1 L1-23P
• Diffuser Screw 3 U30-489SS
• Diffuser Star Washer 3 U43-21SS
9 Quick Connect - 1/4" NPT 1 U11-217P
10 Pump Body - Assembly 1 N176-44
11A Nozzle 1 J34P-44(#54)
11B Venturi 1 N32P-64
12 Pipe Plug - 1/4" NPT Hex Hd. 4 U78-941ZPV
13 Base 1 J4-9C
14 Hex Capscrew - 3/8" - 16 x 1-1/4" Lg. 2 U30-75ZP
14 Hex Capscrew - 3/8" - 16 x 1-1/2" Lg. 2 U30-76ZP
15 Rubber Pad 1 C35-5
16 Tube 1/4" I.D. 1 U37-672P
17 Quick Connect Elbow - 1/4" NPT 1 U11-218P
18 Pressure Switch 1 U217-1225
19 Locknut - 1/2" 1 U36-112ZP
20 Connector 1 L43-5C
§ Included in Seal and Gasket Kit.
# Included in Overhaul Kit.
• Not illustrated.
