aermotor SPCM Series - Suction Flange Assembly Details

Repair Parts 10
1238 0894
1
2
3
4
5
6

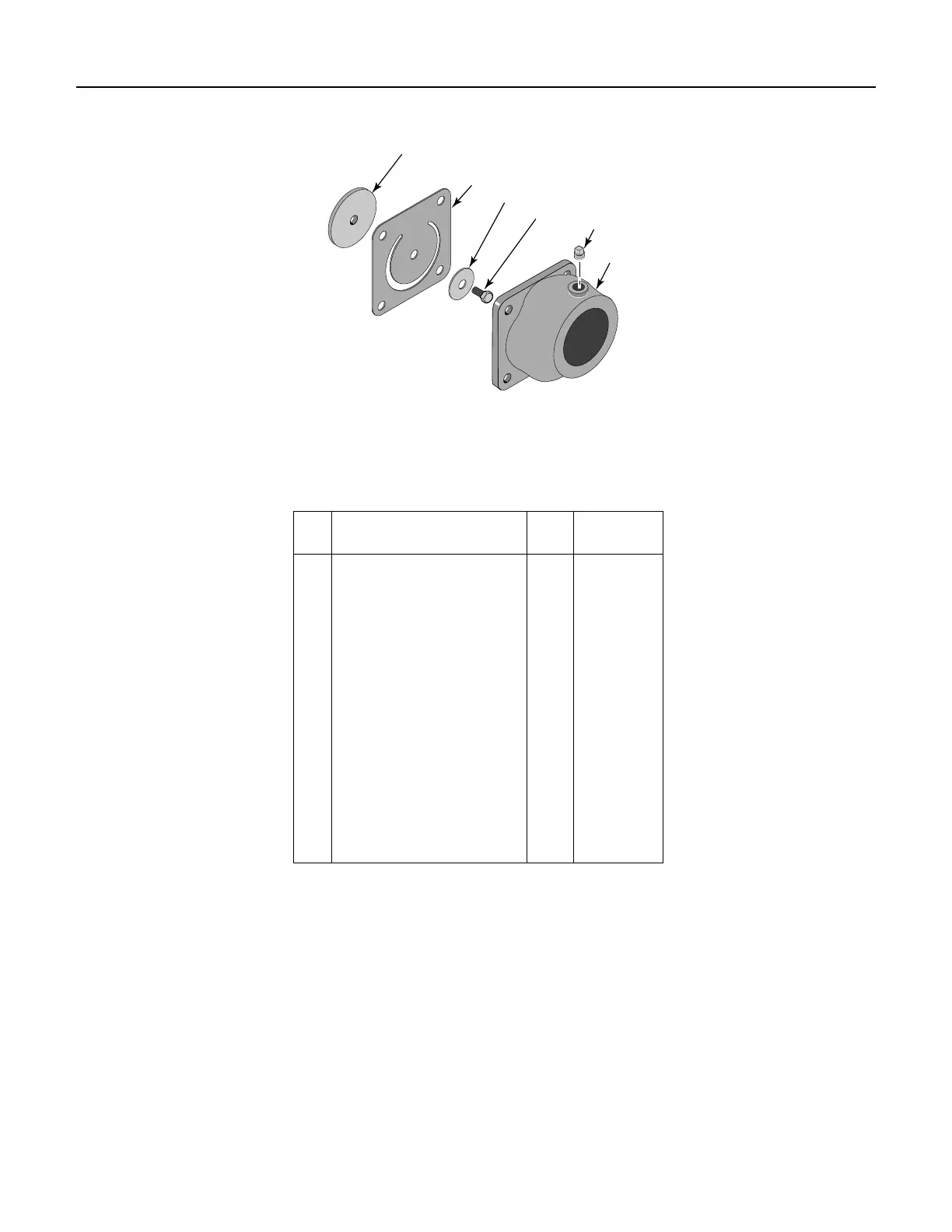

SUCTION FLANGE ASSEMBLY
Key Part No. Part
No. Description Used Symbol
1Valve Plate 1 C61-5SS
2 Gasket - Flange 1 C20-15
3Valve Washer 1 C43-15SS
4 Machine Screw 1/4-20 x 1/2” 1 U30-50SS
5 Pipe Plug - 1/4” NPT Sq. Hd. 1 U78-57SSS
6 Suction Flange 2” NPT 1 C3-22A
6 Suction Flange 2-1/2” NPT 1 C3-74
6 Suction Flange 3” NPT 1 C3-74B
• Nut, 1/4-20, Hex 1 BC120-15
Suction Flange Assembly-
Complete 2” NPT PKG 53
Suction Flange Assembly-
Complete 2-1/2” NPT PKG 72
Suction Flange Assembly-
Complete 3” NPT PKG 73
• Not illustrated.
