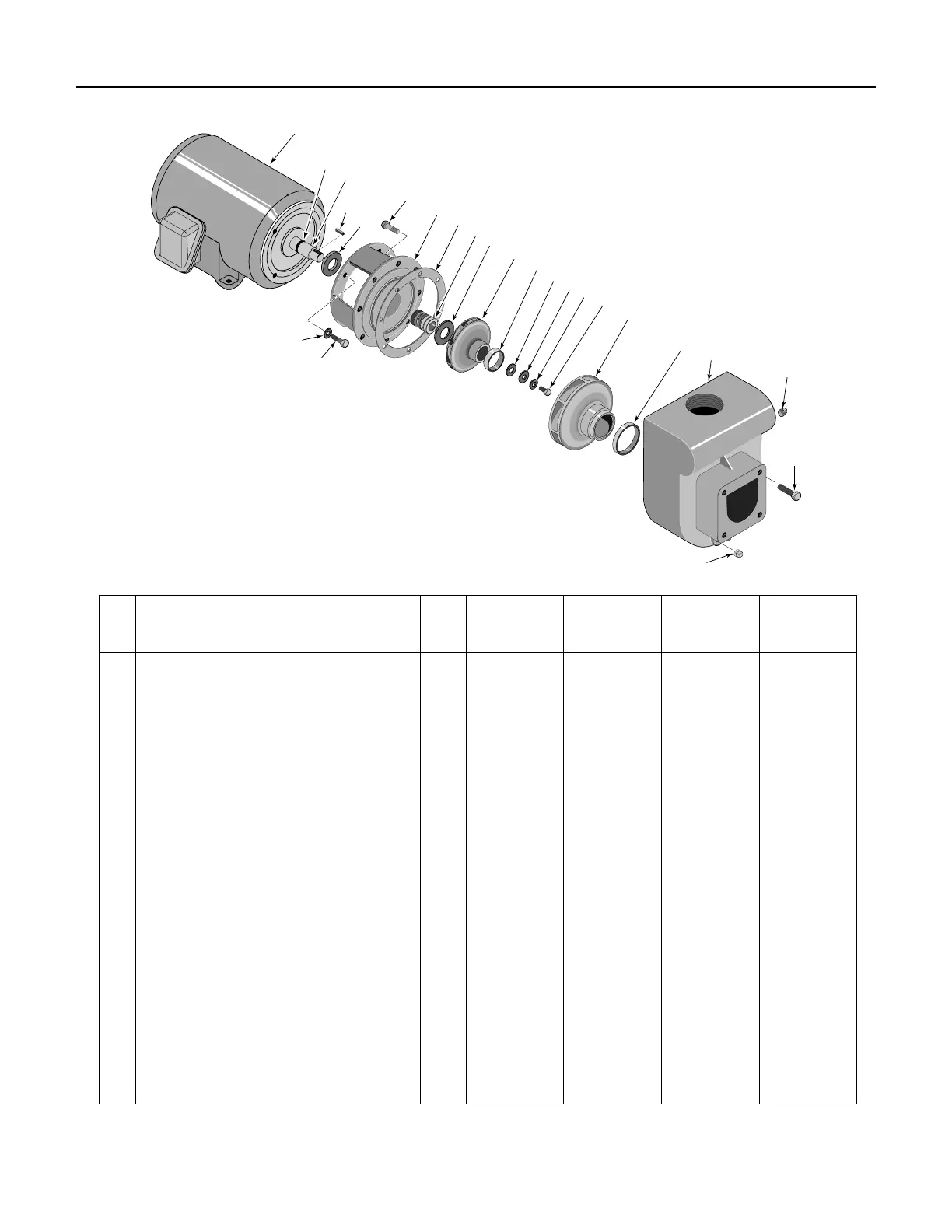

aermotor SPCM Series - Repair Parts Information; Pump Component Identification

1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
21
2
2A
1362 1094
Repair Parts 9
3 HP 5 HP 3 HP 5 HP
Key Part No. SPCM-300 SPCM-500 SPCH-300 SPCH-500
No. Description Used SPCM-3-300 SPCM-3-500 SPCH-3-300 SPCH-3-500
1 Motor - 60 Cycle - 230V, Single Phase 1 C218-177 C218-180 C218-177 C218-180
1 Motor - 60 Cycle - 230/460V, Three Phase 1 C218-179 C218-182 C218-179 C218-182
2 O-Ring 1 U9-265 U9-265 U9-265 U9-265
2A Sleeve 1 C23-58 C23-58 C23-58 C23-58
3 Key - Square 1 U65-42A U65-42A U65-42A U65-42A
4Water Slinger - Single Phase 1 C69-15 C69-15 C69-15 C69-15
4Water Slinger - 230/460V, Three Phase 1 C69-16 C69-15 C69-16 C69-15
5 Capscrew - 3/8 - 16 x 7/8” Lg. 8 U30-73ZP U30-73ZP U30-73ZP U30-73ZP
6 Adapter/Seal Plate 1 C2-66 C2-66 C2-66 C2-66
7 Gasket - Adapter 1 C20-46 C20-46 C20-46 C20-46
8 Lockwasher - 3/8” 4 U43-12ZP U43-12ZP U43-12ZP U43-12ZP
9 Capscrew - 3/8 - 16 x 7/8” Lg. 4 U30-73ZP U30-73ZP U30-73ZP U30-73ZP
10 Shaft Seal 1 U109-220 U109-220 U109-220 U109-220
11 Gasket - Seal 1 C20-101 C20-101 C20-101 C20-101
12 Impeller 1 C5-246 C5-247 C5-248 C5-249
13 Wear Ring 1 J23-5 C23-14 J23-5 J23-5
14 Gasket 1 C20-100 C20-100 C20-100 C20-100
15 Washer - Impeller 1 C43-45SS C43-45SS C43-45SS C43-45SS
16 Gasket 1 C43-46 C43-46 C43-46 C43-46
17 Screw - Impeller - 3/8 - 16 x 3/4” Lg. 1 U30-72SS U30-72SS U30-72SS U30-72SS
18 Diffuser (w/Wear Ring, Key No. 13) 1 C101-126 C101-126B C101-132 C101-132
19 Diffuser Ring 1 C21-2 C21-2 C21-2 C21-2
20 Pump Body 1 C76-12 C76-12C C76-12B C76-12
21 Pipe Plug - 1/4” NPT 2 U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV
22 Capscrew - 5/16 - 18 x 3/4” Lg. 4 † † † †
• Suction Flange* 1 PKG 72 PKG 73 PKG 53 PKG 72
• Not illustrated.
† Purchase locally.
* See Page 10 for Suction Flange Assembly parts.
