To avoid such problems it is recommended (and is good practice) to locate the power supply as
close to the transmitter as possible. This avoids power cable noise and interference and enhances
the lifetime of the product.
It is recommended (and good practice) to locate the power adaptor as close to the transmitter as
possible.

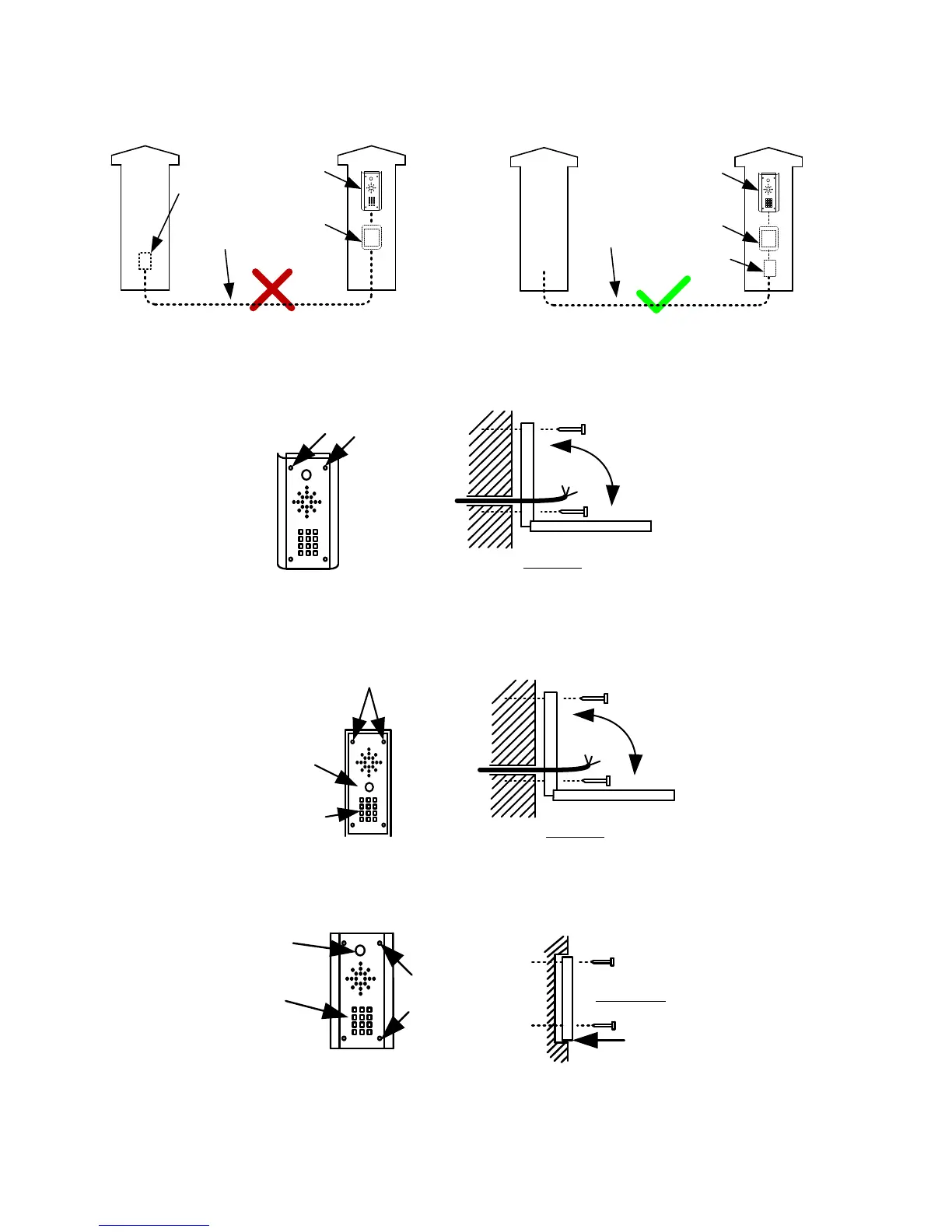

Mounting Architectural Panels
Loosen top 2 screws only
Hinge front door
Side View
Mounting Hooded Panels
Call Button
Optional keypad
module
Loosen top 2 screws only
Hinge front door
Side View
Mounting Flush Panels
Call Button
Optional keypad
module
Remove
Side View
Flush with surface
Tip: Use appropriate fixings to ensure the intercom cannot be removed from the wall.
Excessively long
cable!!
12v power supply
Call point
Transmitter
Mains power
12v power supply
Call point
Transmitter
