AES EFI Series - Explode View

8

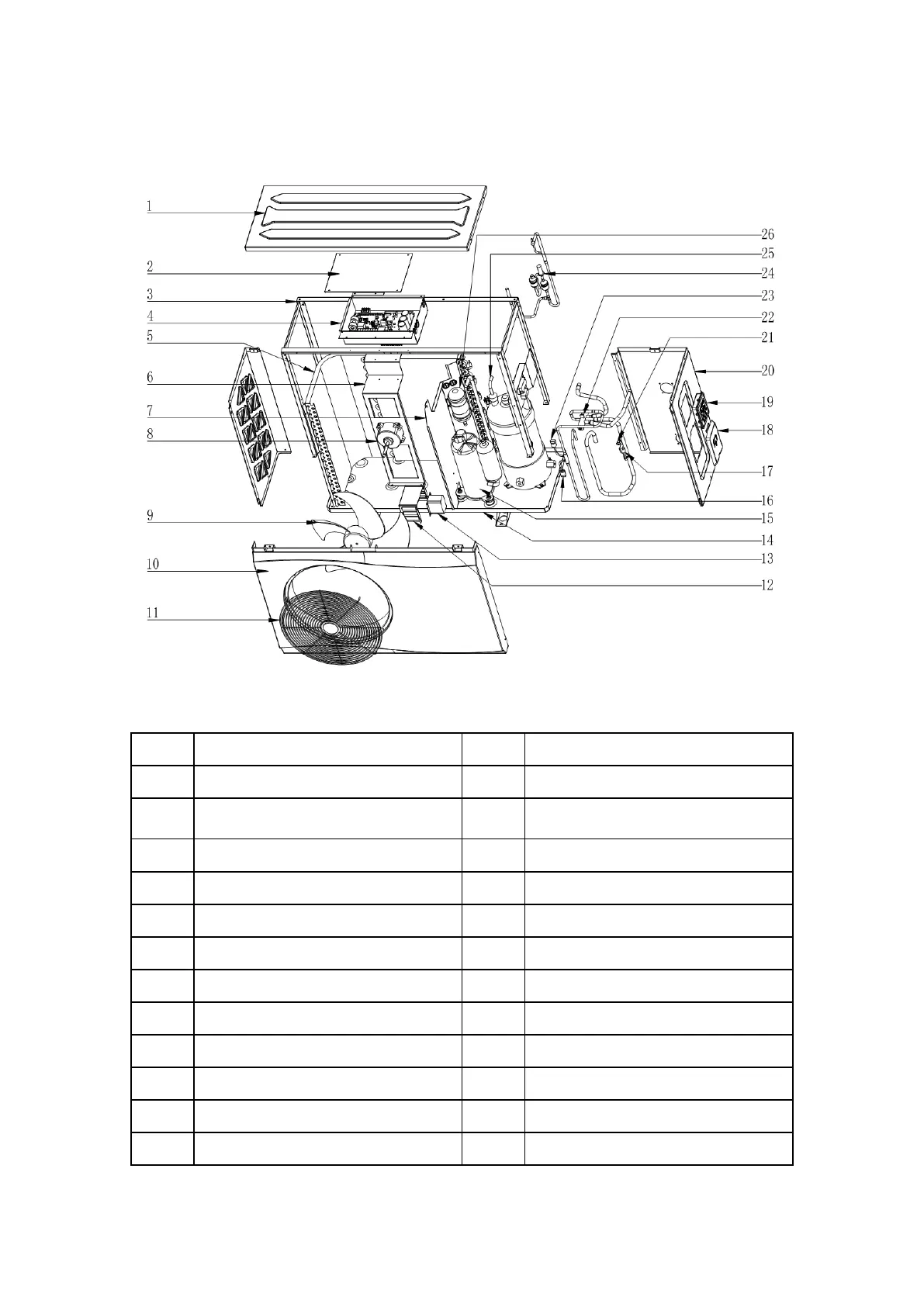

Explode View
No.
Name
No.
Name
1
Top Cover
14
Bottom Panel component
2
Electric box cover
15
Inverter compressor
3
Support frame
16
Middle-pressure switch
4
Electronic control components
17
Low-pressure switch
5
Fin heat exchanger
18
Power waterproof cover
6
Fan blade
19
Controller
7
Middle panel
20
Right panel
8
AC fan motor
21
Needle valve
9
Fan
22
Four-way valve
10
Front Panel
23
High-pressure valve
11
Discharge grill
24
Electronic expansion valve
12
Reactance waterproof box
25
Titanium tube heat exchanger
