AFG 3.5AE - ARM SET REPLACEMENT

26
CHAPTER 5: Parts Replacement Guide
5.1.3 Arm Set Replacement

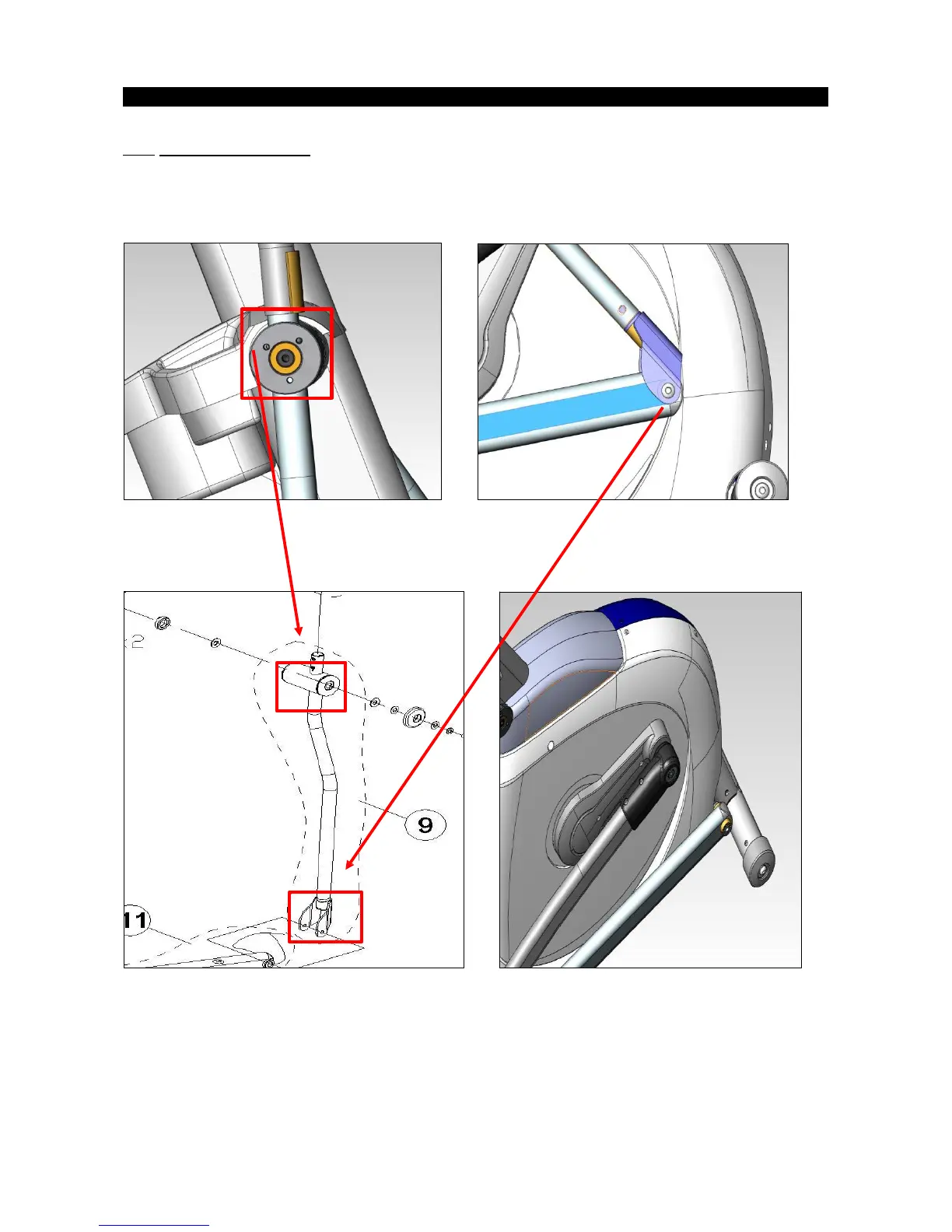

1. Loosen the screw and take off the washers, then move to the next step（Figure A）
2. Loose the screw and remove the washers to take off the whole arm set ( Figure B)
3. Take off the arm set (Figure C)
Fig.C
Fig.A
Fig.B
