OLS-Series Light Sources

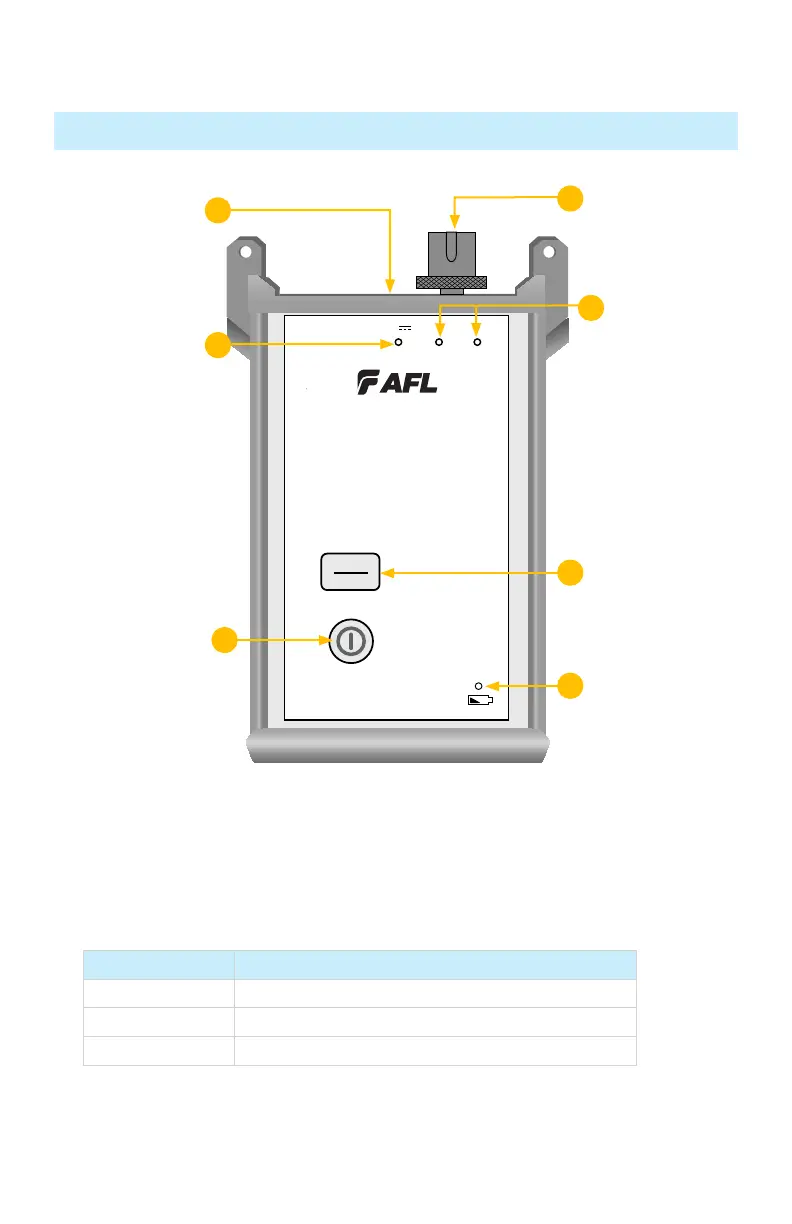

OLS1-Dual Features
1. Output port - Universal Connector Interface (UCI). Accepts swappable SC connector (ST, FC, and LC
connector styles are available).
2. Active Output indicators (illuminated when the corresponding output port is ON) - The Active
Output indicators light up as follows:
Test Mode Active Output indicator status
WAVE ID dual Wave 850 and 1300 indicator - ON continuous light
WAVE ID single Wave corresponding indicator - ON continuous light
CW corresponding indicator - ON blinking light
3. 850/1300/CW key - Wavelengths select key provides several functions.
WAVE ID Mode
• Press the key to select wavelengths in the following sequence:
OLS1-Dual LED Light Source
850nm
1300nm
9V
850nm
1300nm
CW
Optical Light Source
OLS1 DUAL
NOYES
Power port
Low Battery
indicator
Active Output
indicator
External Power
indicator
850/1300/CW
wavelengths key
Power key
Output port
3
4
5
2
2
7
6
