OLS4 Features
1. Power key - Press and hold the key until all indicators light up to turn the OLS4 ON or OFF. The
OLS4 turns on in its default condition: 850/1300 nm Dual mode sending Wavelength ID.
2. Power port (located on the top panel) - This is the interface for an AC power adapter.
3. External Power indicator - Lights up, whether the unit is on or off, when the correct AC power
adapter is connected.
4. Low Battery indicator - Lights up when a Low Battery condition exists; batteries require
replacement.
5. MM output port - Universal Connector Interface (UCI). Accepts swappable SC connector (ST, FC,
and LC connector styles are available).
6. SM output port - Universal Connector Interface (UCI). Accepts swappable SC connector (ST, FC,
and LC connector styles are available).

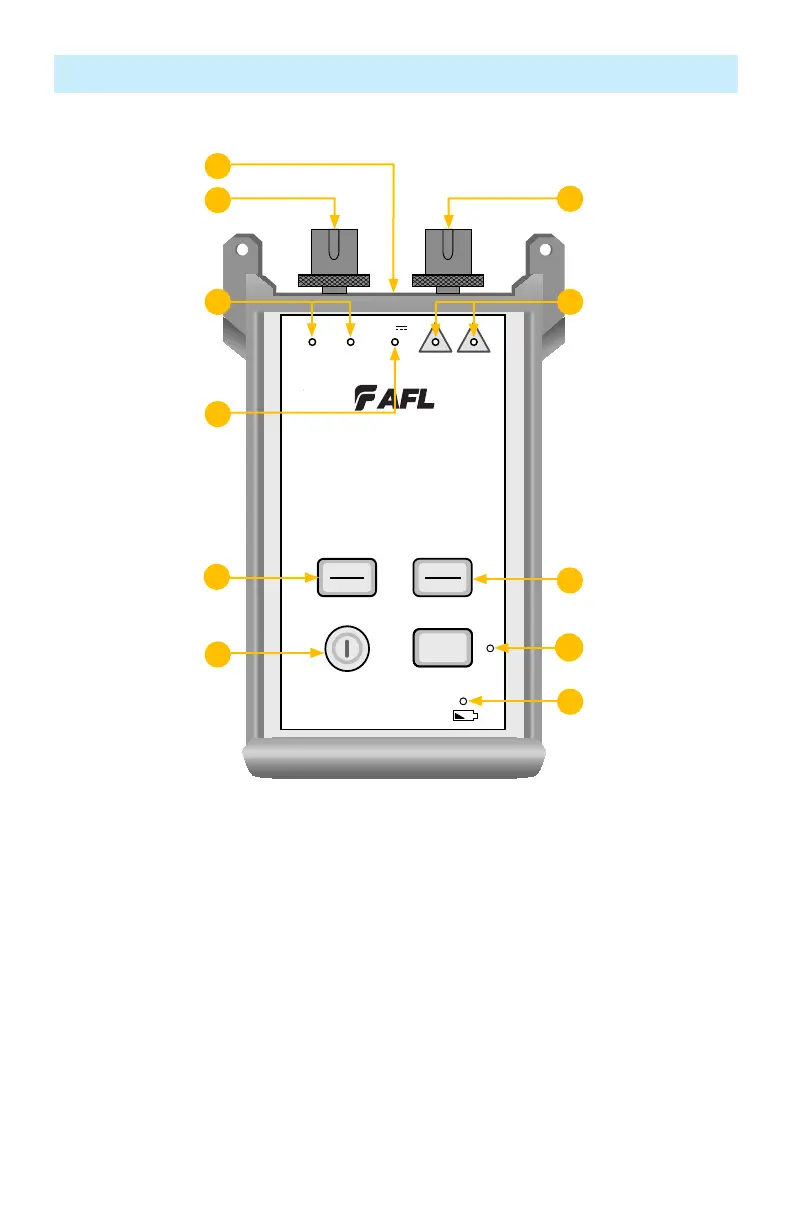

OLS4 Integrated LED and Laser Light Source
1310nm
1550nm
850nm
1300nm
9V
Tone
1310nm
1550nm
850nm
1300nm
OLS4
Optical Laser Source
with Wave ID
CW CW
NOYES
MM output port
MM Active Output
indicators
850/1300/CW key
MM wavelengths key
SM output port
SM Active Output
indicators
1310/1550/CW key
SM wavelengths key
Tone key & indicator
Power port
External Power
indicator
Power key
Low Battery indicator
4
1
8
3
2
5
7 7
9
6
10
