Electrical Connection
19

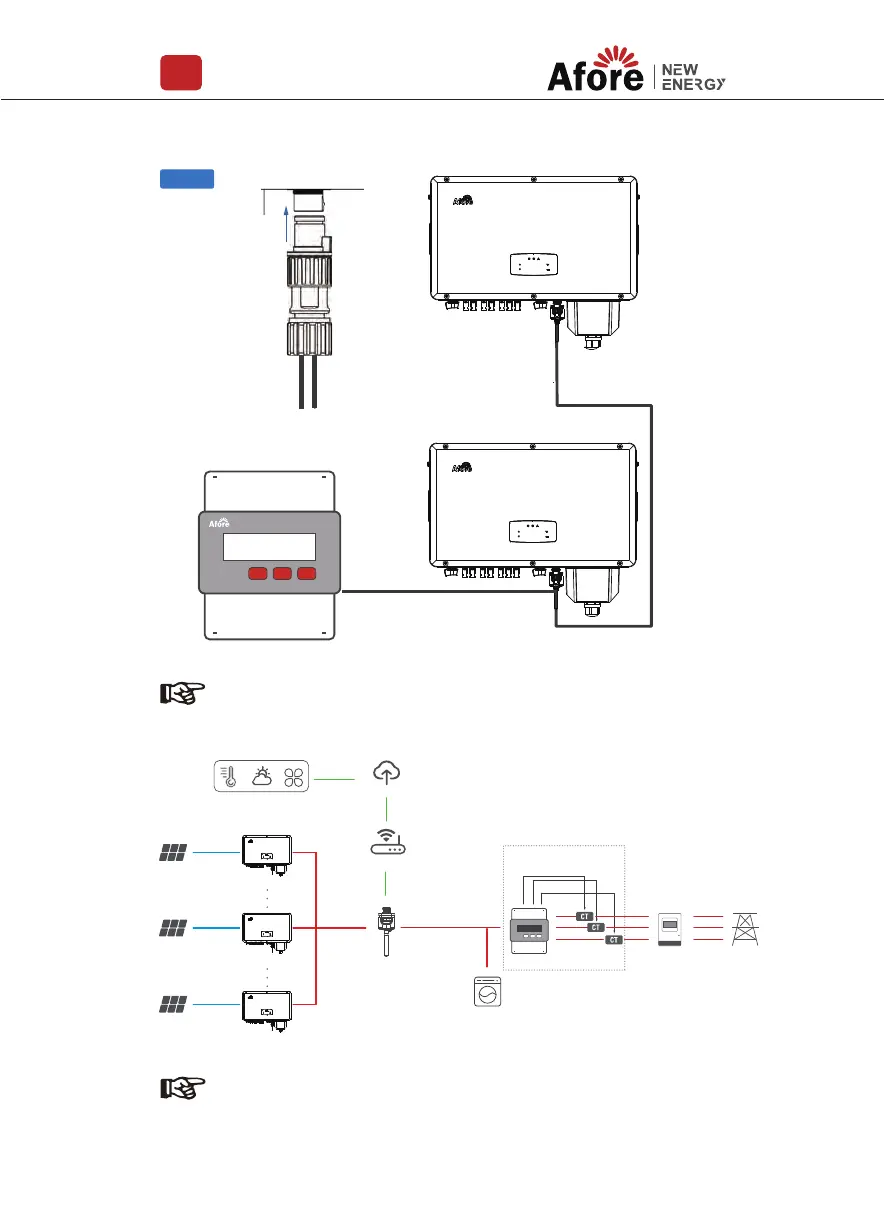

Step 2
Note:
The Inverter could be connected in parallel with Smart Meter,
make sure the total load power not exceed Smart Mater’s limitation.
Load
WiFi / Ethernet / GPRS
Router
Cloud Server
Weather Staon
PV Inverter
PV Array
PV Inverter
PV Array
PV Inverter
PV Array
Note:
When multiple inverters are connected in parallel, the total output
power could not exceed the reasonable range of the smart meter.
Grid
Distribuon Cabinet
L1
L1‘
L2’
L3’
L2
L3
Afore Smart Meter
Energy Meter
