Afore HNS7000TL User Manual

9

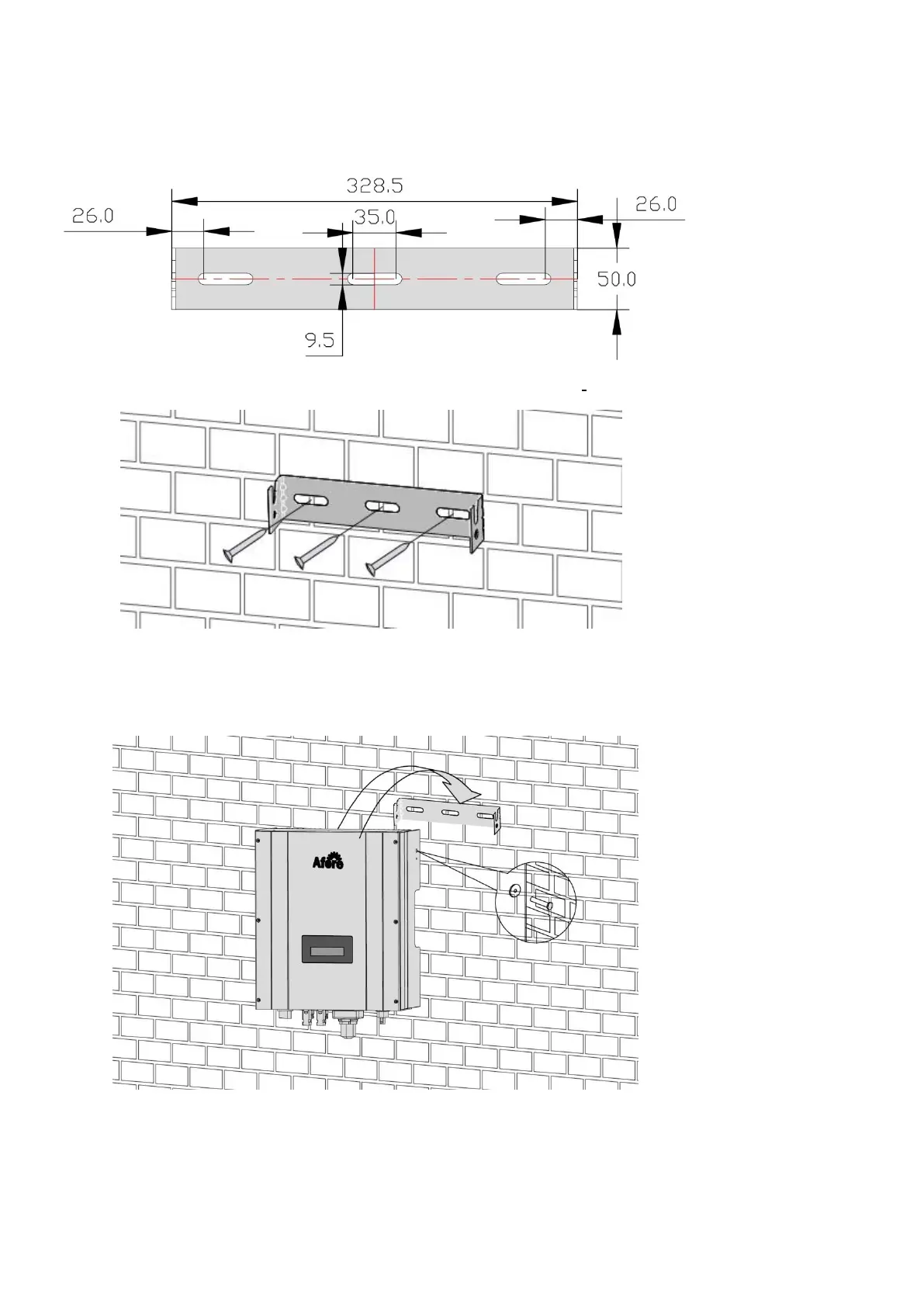

4.3Mounting the Inverter with Wall Mounting Bracket
1. Use the wall mounting bracket mark the drilling position and drill the holes for the screws.
2. Fix the wall mounting bracket with the equipped self-tapping screw.
3. Hang the inverter to the mounting bracket and ensure the slot is fitted on the bracket.
4. Check to ensure the inverter is correctly seated. Make sure to lock it with the security screws. (See the
figure below.)
