6 Operation
AFS devices can remain in continuous operation.
Operating modes are to be separately described and observed by the operator depending on the on-site
electrical installation.
Sequence and interval operations which involve turning off the air purification device after every
process step cause damage to the AFS air purification device.
6.1 AFS air purification devices without frequency converters
6.1.1 Turn on
1) Turn on the air purification device based on the model series.
2) Pay attention to unnatural noises or vibrations and immediately turn off the air purification device if
they occur in order to avoid damage. Examine the connection and installation and follow the Fehler!
Verweisquelle konnte nicht gefunden werden. section in this instruction manual.
6.1.2 Turn off
Turn off the air purification device based on the model series.
6.2 AFS Air Purification Devices with Frequency Converter (Optional)
An AFS air purification device that has a frequency converter is operated and controlled by means of that
frequency converter. Operation is menu-guided via the arrow keys and the P button. The frequency
converter instruction manual must be observed.
6.2.1 Turning the System On:
We recommend installing a main switch using it to turn the AFS air purification device on and off. The
operating modes and the suction output are to be adjusted accordingly with the frequency converter.

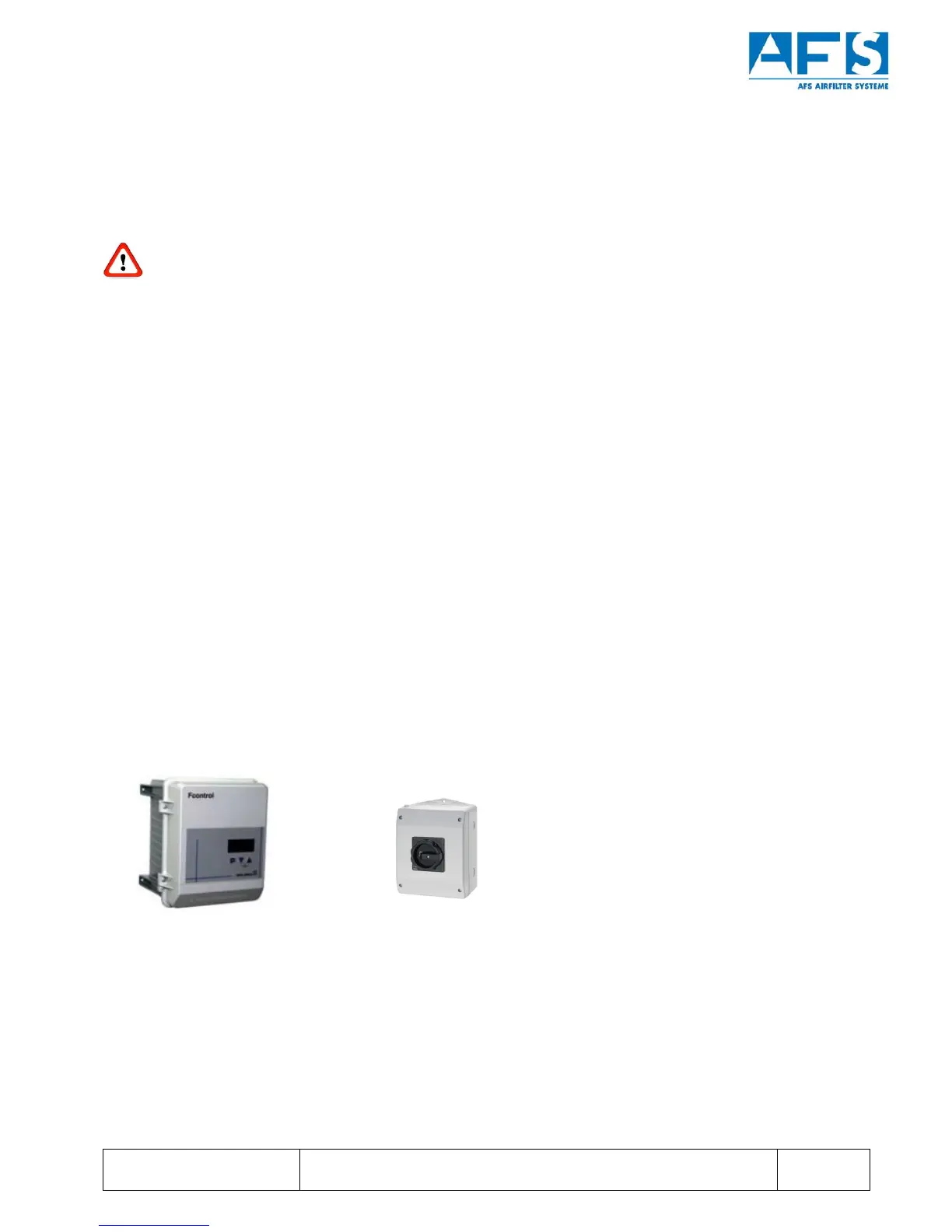

Figure 9: Example of a frequency converter FControl FXDM...AM and main switch
6.2.2 Switch off the system
Switch on the system according to the model installation on the frequency converter or main switch.
