7.1.1 Metal mesh preliminary separator (pos. • )

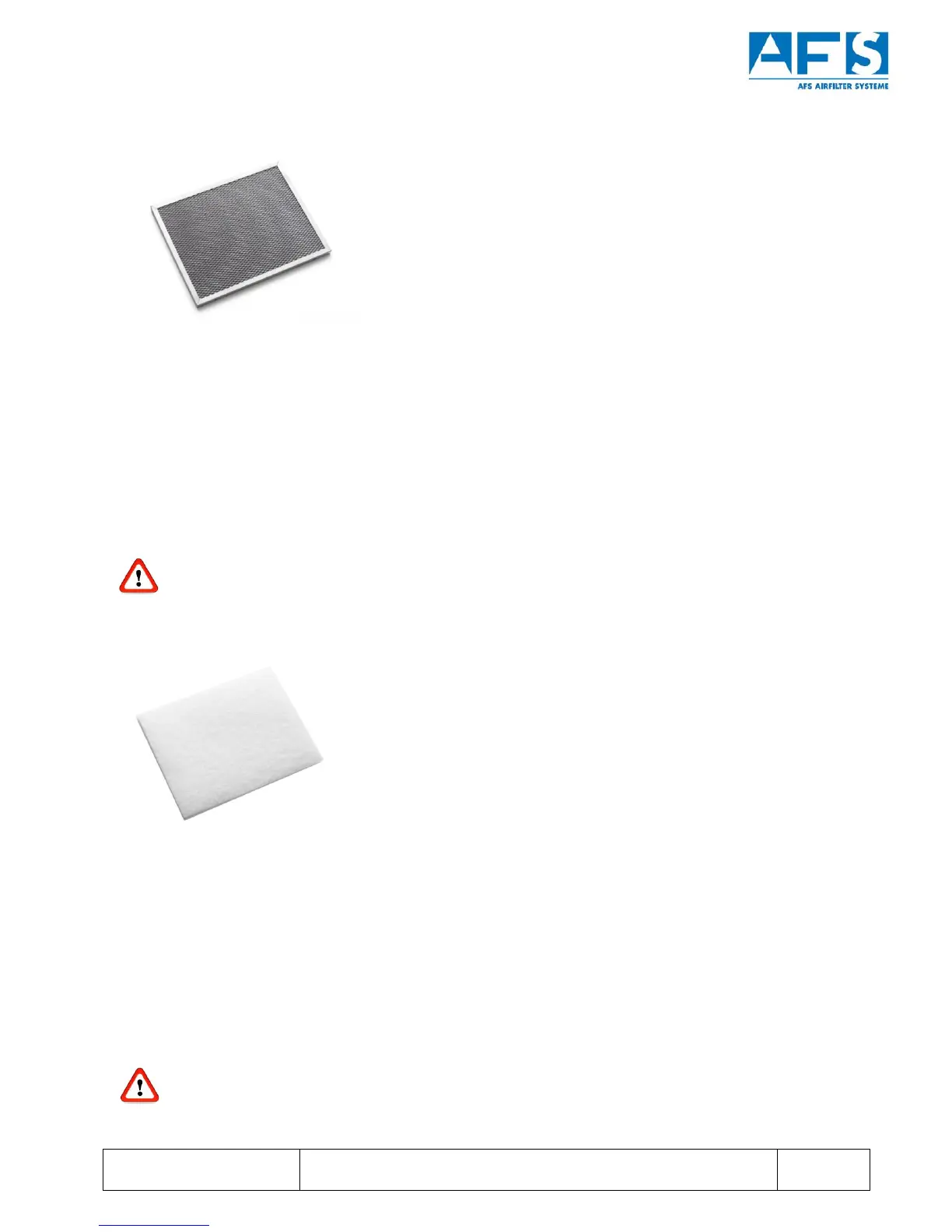

Figure 11: Metal mesh preliminary separator
The preliminary separator is made of a corrosion-resistant metal mesh, is non-wearing, and can be
cleaned/rinsed:
Cleaning interval: Clean when obviously clogged and dirty, i.e. if full of shavings, hardened oil, abraded
material, grease residues.
And at least every 4 weeks.
Directions: Use hot water and a grease-removing cleaning agent with a high-pressure cleaner or
in a component washing system.
Parts will have oil and coolant lubricant residue. Wastewater must be disposed of properly and in an
ecologically responsible manner.
7.1.2 Preliminary filter fleece (pos. ‚ )
Figure 12: Fleece preliminary filter. Depicted without alternate frames
The preliminary filter comprises filter grade G3 filter fleeces, which must be replaced when they become
clogged and dirty.
Replacement interval: Clean when obviously clogged and dirty, i.e. if full of shavings, hardened oil, abraded
material, grease residues.
And at least every 4 weeks.
The preliminary filter fleeces can be replaced with conventional filter grade G 3 filter fleeces with a fleece
thickness of 20 mm.
Parts will have oil and coolant lubricant residue. Proper and ecologically responsible disposal is
absolutely necessary.
