Wiring the spray switch on the Guia/Platinum system continues…
2. Connect the booms switch to the Relay Spray On/Off wire of the Guia / Platinum system in
parallel. See Below.

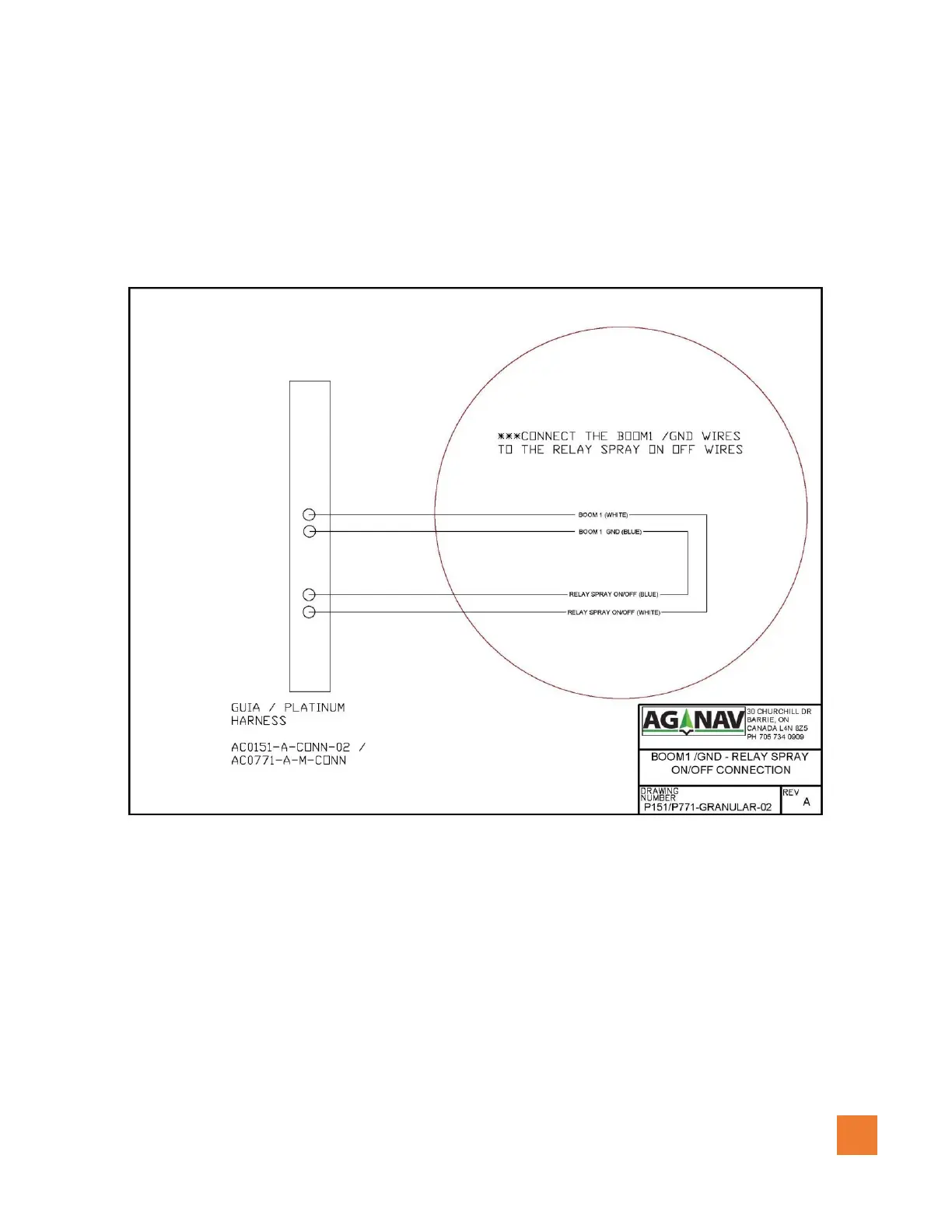

Figure 1.0.9 (Boom 1/ GND to relay spray on/off connection)
