14
Step 10: Install lock cam (Models with locks
only).
Attach the lock cam to the back of the lock assembly with
the phillips head machine screw provided. Orient the lock
cam vertically when installing on the lock.
Step 11: Install door gasket
Press the door gasket into the door channel. Make certain
the gasket corners are fully inserted. If applicable insert
the key into the lock and make certain the lock operates
properly.

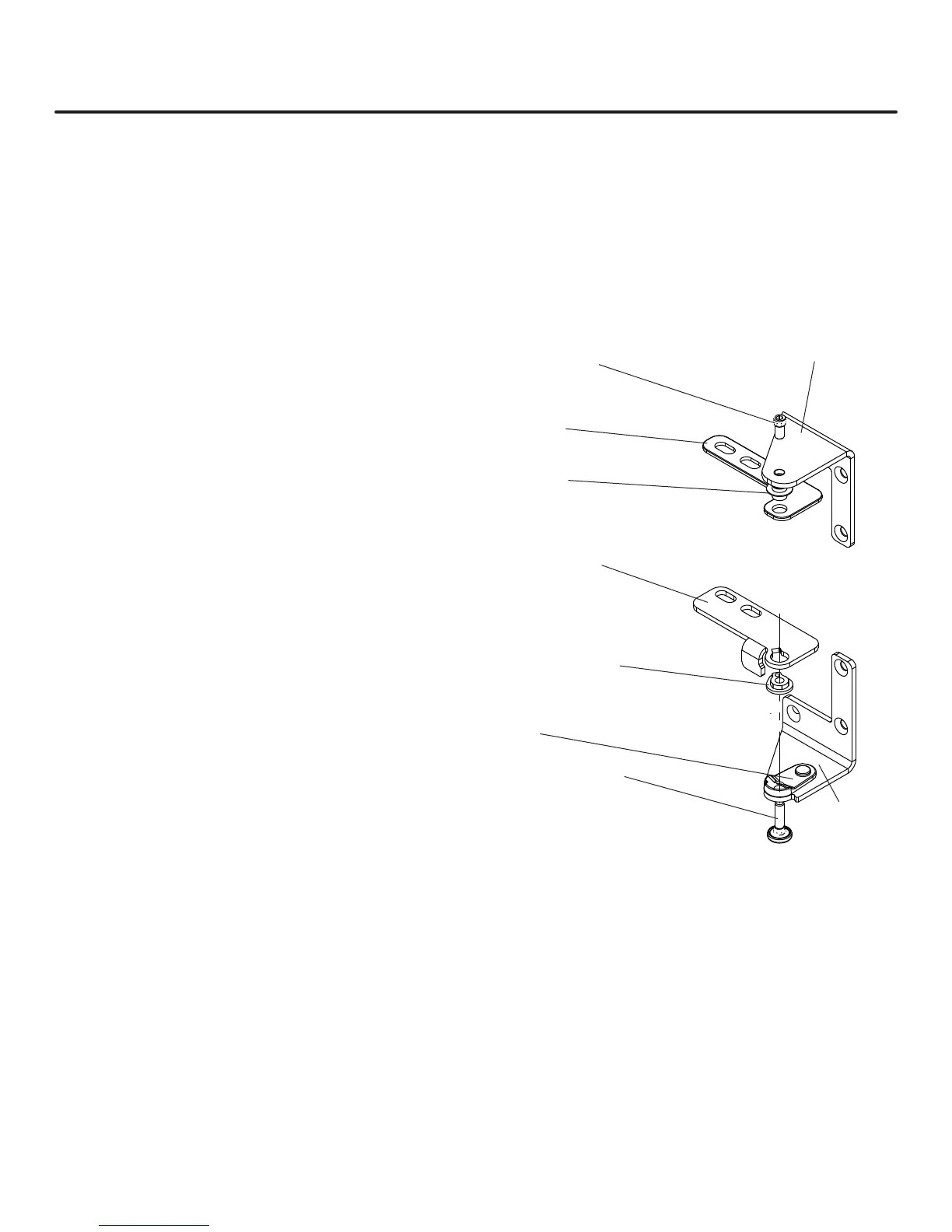

Step 12: Install the door
Install the top and bottom hinge adapter bushings back into
the hinge adapters that were removed in step 5. Install the
door by reversing the procedure from step 2. Install the top
hinge pin so the screw head is ush with the top surface of
the hinge. If applicable insert key into lock and verify the
lock cam works properly with the catch bracket on the front
of the refrigerator cabinet.
FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS
Top hinge pin
Top door hinge
adapter
Top hinge adapter
bushing
Top hinge
Bottom door
hinge adapter
Bottom hinge
adapter bushing
Bottom hinge pin
Bottom hinge
cam
Figure 12
Right hand
hinges shown
Bottom
hinge
