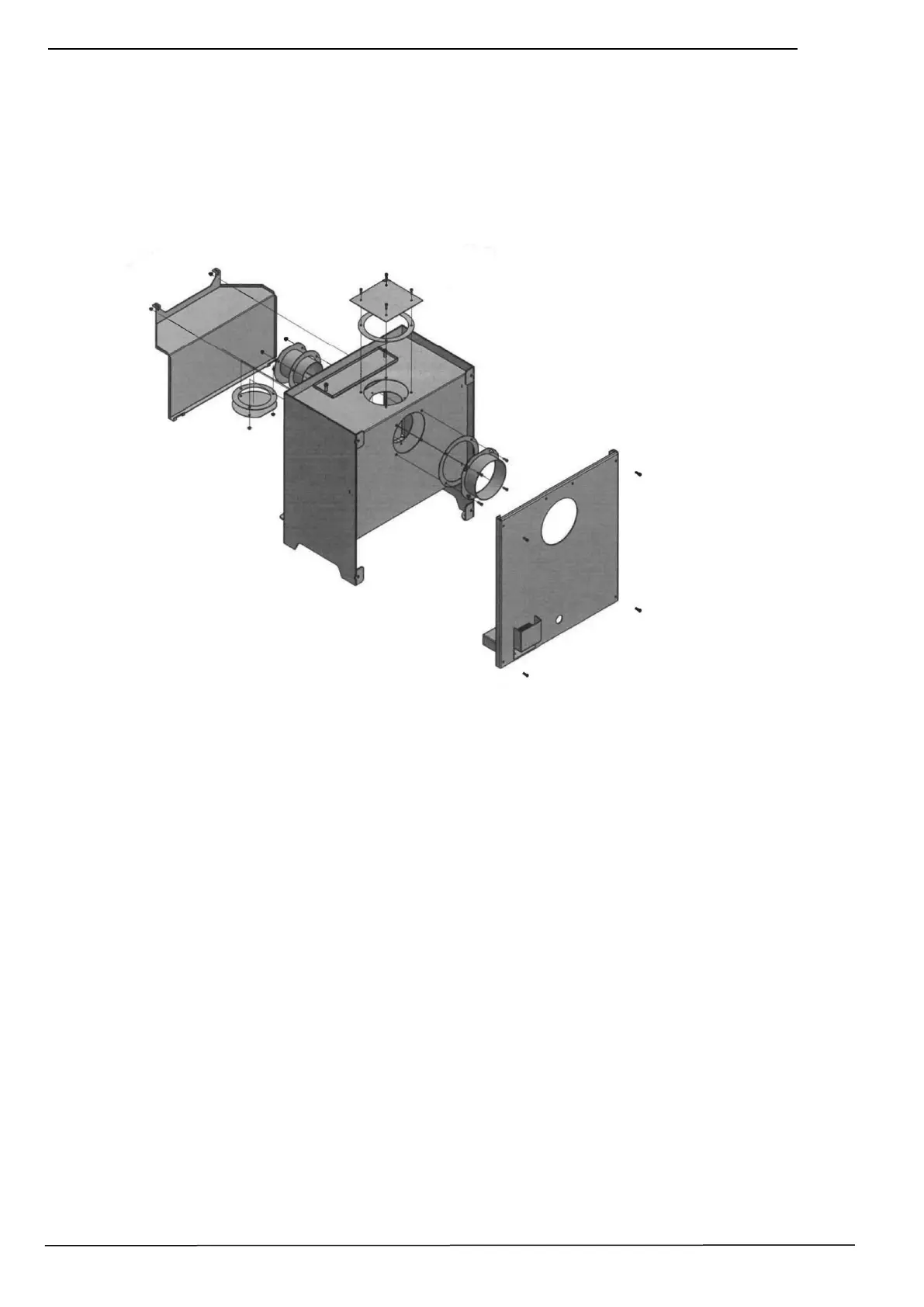

1 - Lift off lid and store in a safe place.
2 - Unscrew M5 cap screws (QTY x 4) and remove back panel and store in a safe place, knock out the
steel centre for the flue collars and pipe if using the rear exit
3 - Unscrew M5 flange screws (QTY x 6) remove front glass and frame and store in a safe place
4 – Fit the air inlet blanking plate and gasket, this can now be accessed from the top of the fire (M5 x
16mm cap screws x QTY 4) screw down tight, but do not overtighten
5 - Unscrew M5 flange nuts (QTY x 2) from the inside at the top of the fire and carefully remove the inner
heat shield, replace this inner heat shield once you have completed step 8 – this must be replaced back
into the firebox on completion
6 – Fit the exhaust blanking plate & gasket to the top opening this can be accessed from the inside top of
the firebox (M5 flange nuts QTY x 3) screw up tight but do not overtighten
7– Fit the exhaust flue collar & gasket (100mm Diameter) into the rear of the stove, this can be accessed
from the inside rear of the firebox (M5 flange nuts QTY x 3) screw up tight
8 – Fit the air inlet flue collar and gasket (150mm Diameter), this can be accessed from the rear of the fire
(M5 cap screws QTY x 4) screw up tight
9 – Refit the parts as per the following steps in reverse for the above make sure the firebox is air tight on
all of the seals for the 2 x flue collars and front glass
